Track assembly
MINIVATOR 2000 INSTALLATION MANUAL 7

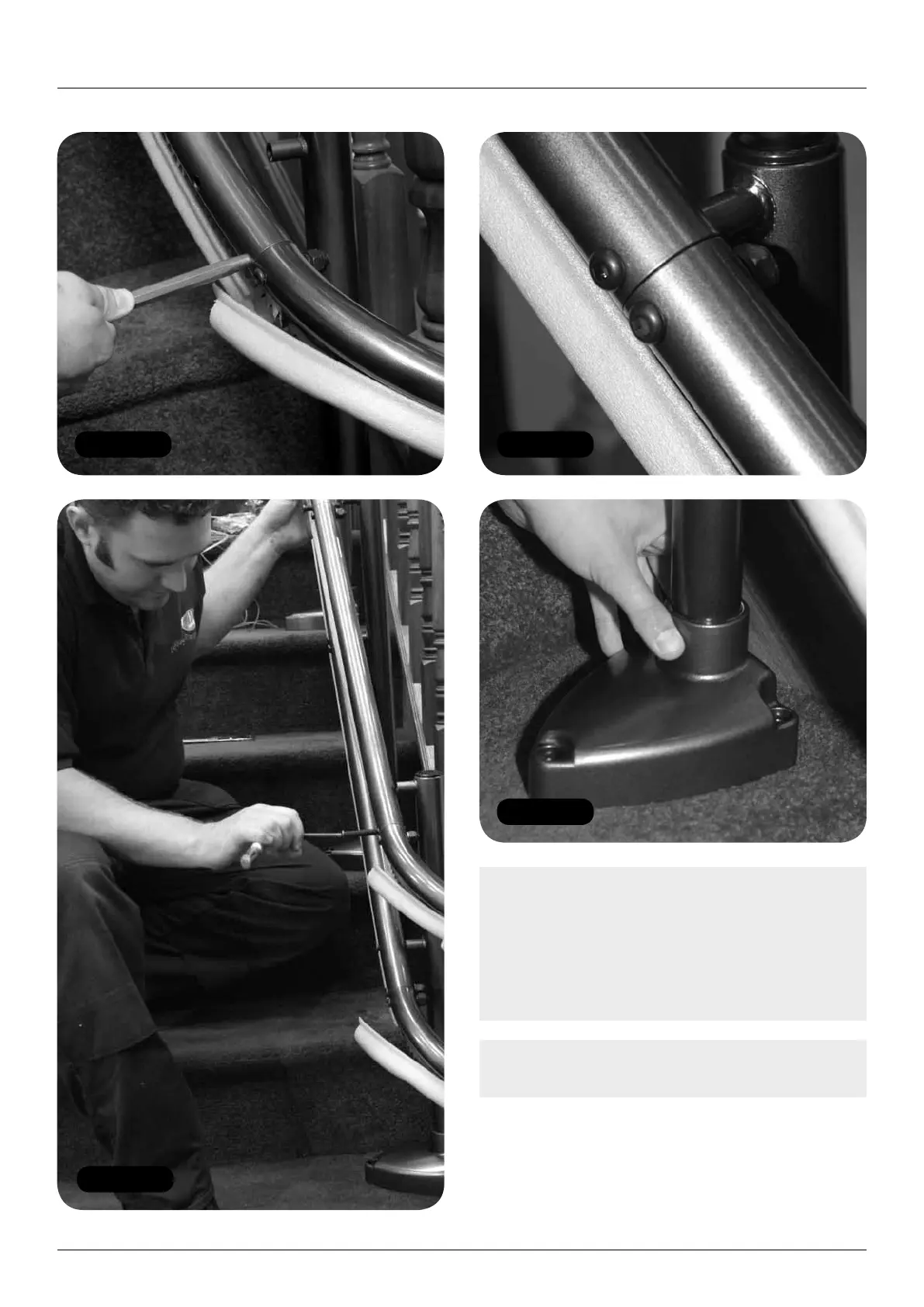

Figure 9
Figure 10
Figure 11
Figure 12
Note: If the bolts joining track sections, or
attaching track to stanchions, are over-
tightened it can deform the track leading to poor
ride quality. A higher torque may be required to
get the bolt through the track but 15Nm must
be the maximum applied during the final stage.
Note: Apply a small amount of grease to the
jointing plug.
14 Continue as per steps 6-11 until you have
installed the complete bottom track.
DO NOT FIT THE LAST BOLT TO THE
TOP STANCHION at this time.
