HANDICARE SIMPLICITY INSTALLATION MANUAL 13
ENGLISH

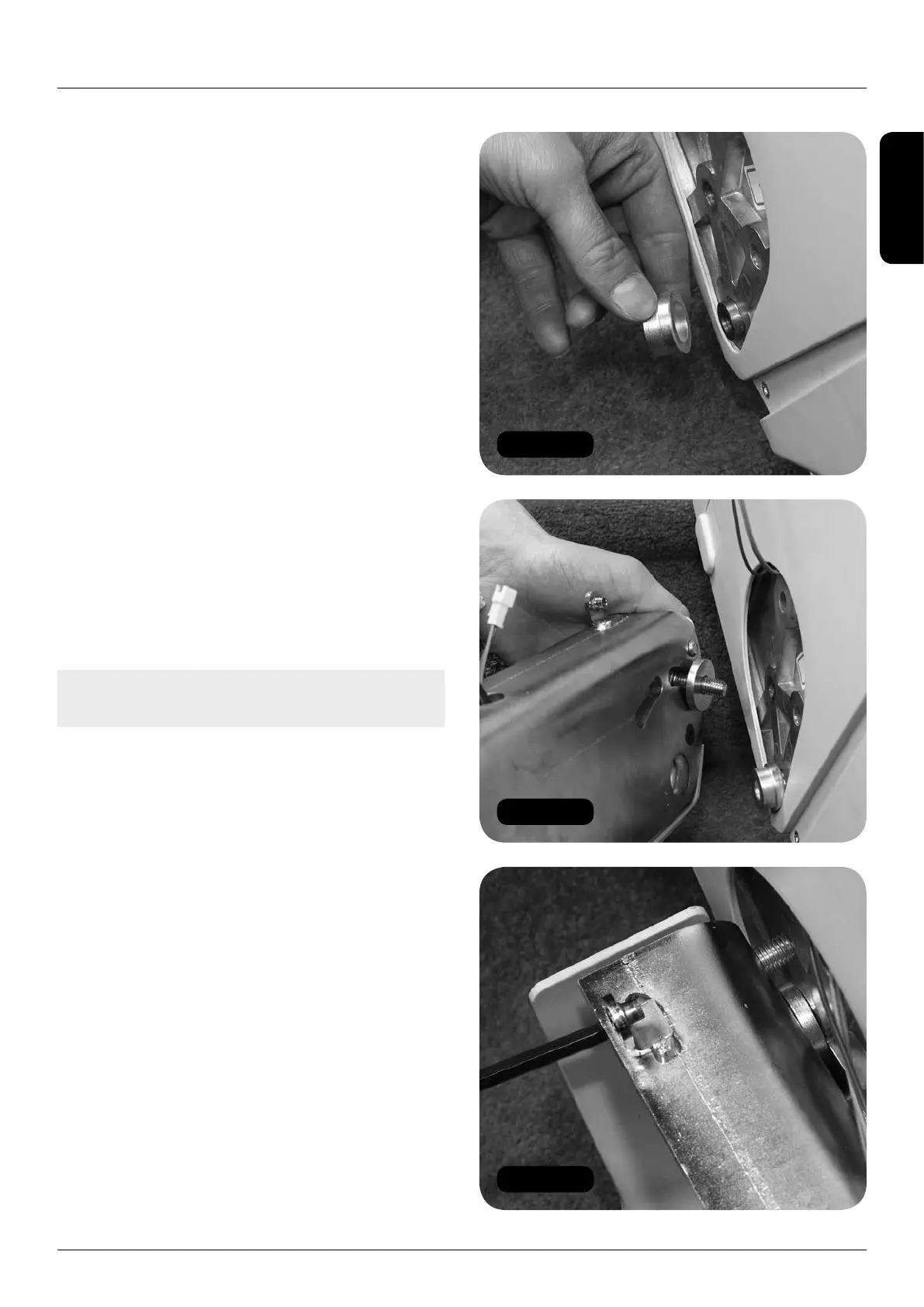

Figure 33
Figure 34
Figure 32
Items required:
• Footplate
Tools required:
• 6mm Allen key
• Spirit level
Fitting the footplate
1 Drive the power pack, using the loading
toggle, to around the second or third step
so that it is at a comfortable working height
for fitting the footplate.
2 Position the ‘top hat’ on to the power pack
(Figure 32).
3 Insert the one bolt through the stair side
slotted hole in the footplate chassis and
then position the spacer supplied (Figure 33),
ensuring that the top hat locates into the
hole on the footplate chassis below the
slotted holes.
4 Loosely tighten the bolt to the power pack
chassis.
5 Repeat steps 3 and 4 in the other slotted hole.
Note: Only fit one bolt at a time. Trying to do
two together is very difficult.
6 Loosely fit the safety bolt (Figure 34).
