14 HANDICARE SIMPLICITY INSTALLATION MANUAL
Figure 36
Figure 37
Figure 35

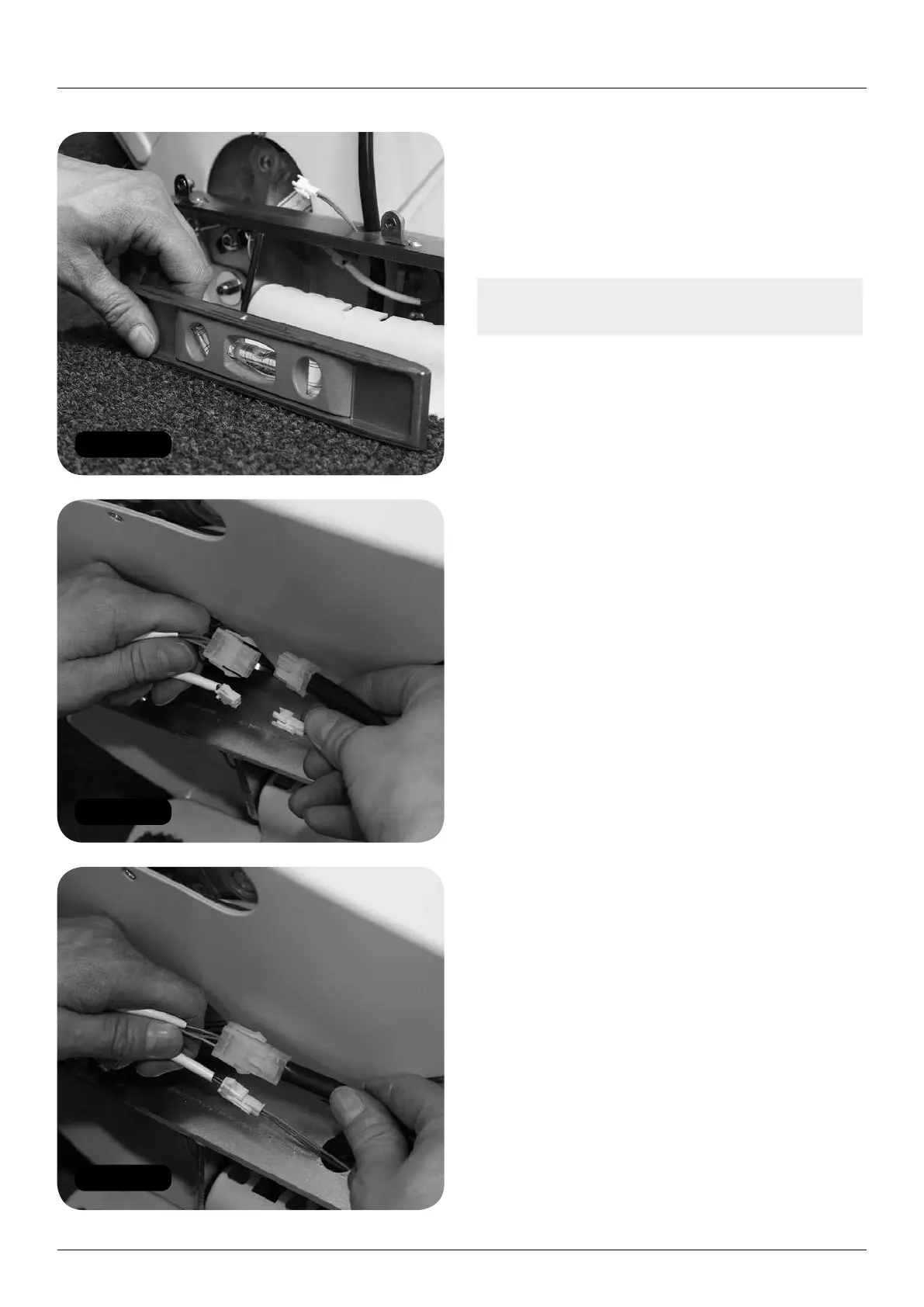

7 Place a spirit level on the footplate and tap
the footplate chassis to level it (Figure 35).
8 Fully tighten the two footplate bolts.
9 Tighten the safety bolt until it just ‘bites’
on to the power pack chassis.
Note: Over tightening the safety bolt will twist
the footplate chassis.
10 Disconnect the shorting links and connect
the footplate cables to the power pack cables
(Figures 36 and 37).
