Handicare SIMPLICITY - Fitting the Seat

HANDICARE SIMPLICITY INSTALLATION MANUAL 15
ENGLISH

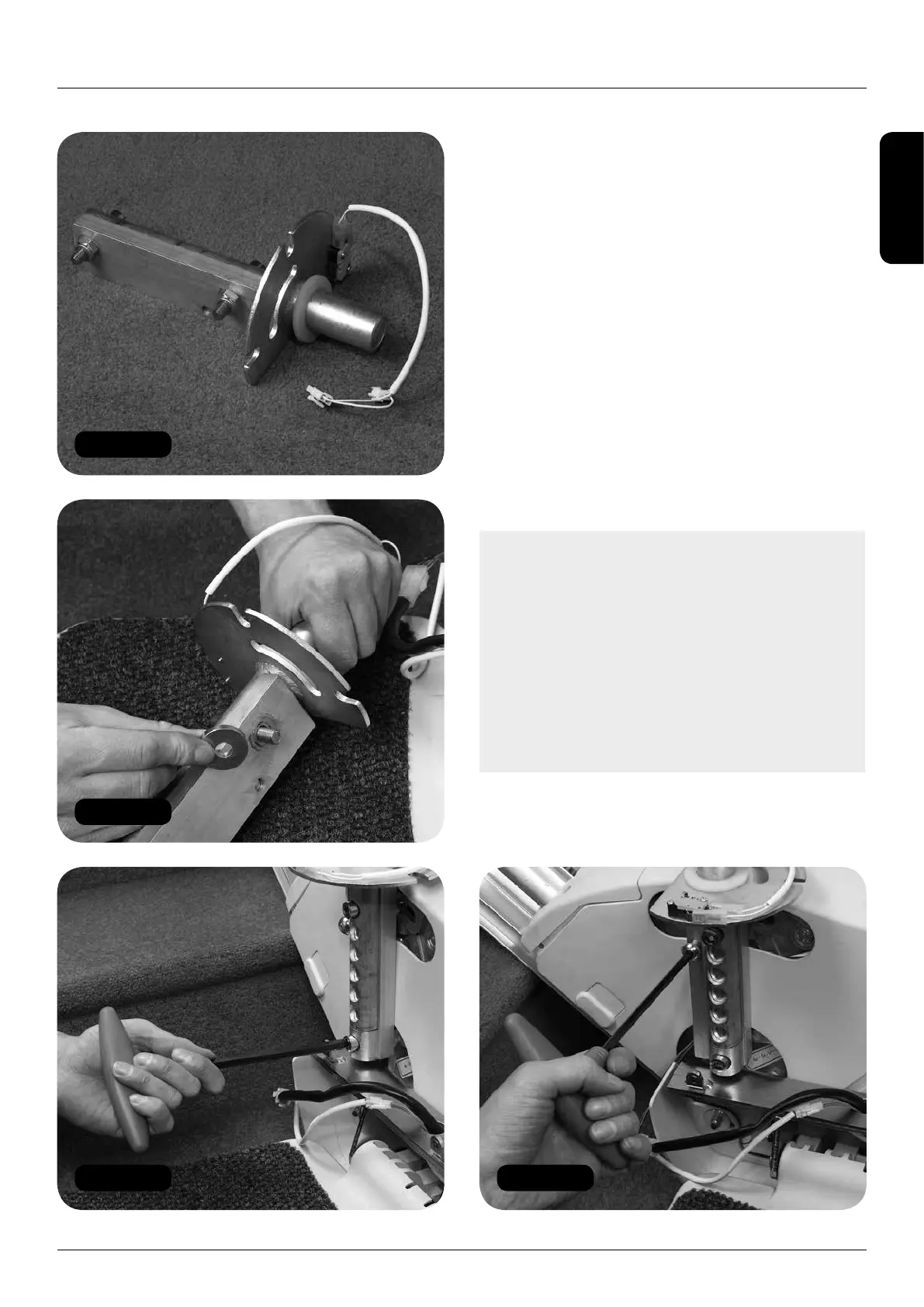

Figure 39
Figure 40
Figure 38
Figure 41
Items required:
• Seat
Tools required:
• 17mm Socket
• 8mm Allen key
• 4mm Allen key
• No. 2 Pozi-drive
Fitting the seat
1 Remove the seat and the seat post from
the seat box.
2 Remove the nuts from the seat bolts in the
seat post (Figure 38).
3 Fit the spacers to the seat bolts (Figure 39).
4 Bolt the seat post to the power pack
(Figure 40).
Note: If you fit the seat post to the power
pack in the configuration that it is delivered,
the seat to footplate height will be 390mm.
The seat post can be extended by sliding
the outer sleeve upwards. Each interval is
20mm up to a maximum of 490mm. If you
know the seat to footplate height that the
client requires, adjust the seat post to the
appropriate setting before bolting it to the
power pack chassis.
5 Fit the safety bolt (Figure 41).
Fitting the seat
