WG‐500PHotspotinaPrinter

7



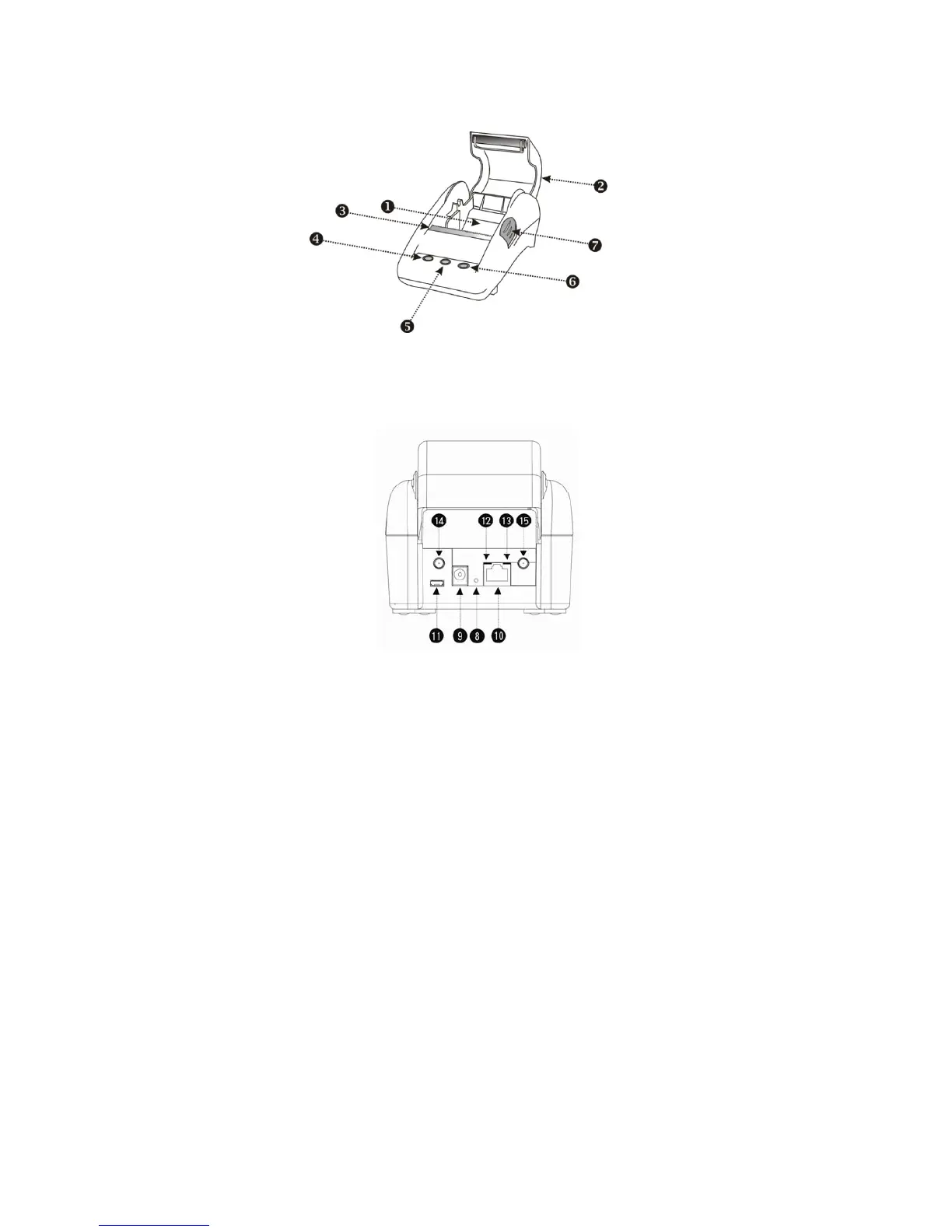

Figure1‐4‐3RearPanel



1. Paper roll housing

2. Printer Cover

3. Tear Bar, for paper cutting

4. Button A

5. Button B

6. Button C

7. Push Button, for printer cover opening

8. Reset Button

9. DC power supply connector

10. RJ45 port

11. Micro USB connector

12. WLAN LED (Green)

13. UPLINK LED(Yellow)

14. SMA connector

15. SMA connector

z WLANLED:

Off:Thewirelessisnotready.

Greenlight:TheWG‐500Phasestablishedavalidwirelessconnection.

GreenBlinking:Thewirelessconnectionisactive.

Figure1‐4‐2FrontPanel
