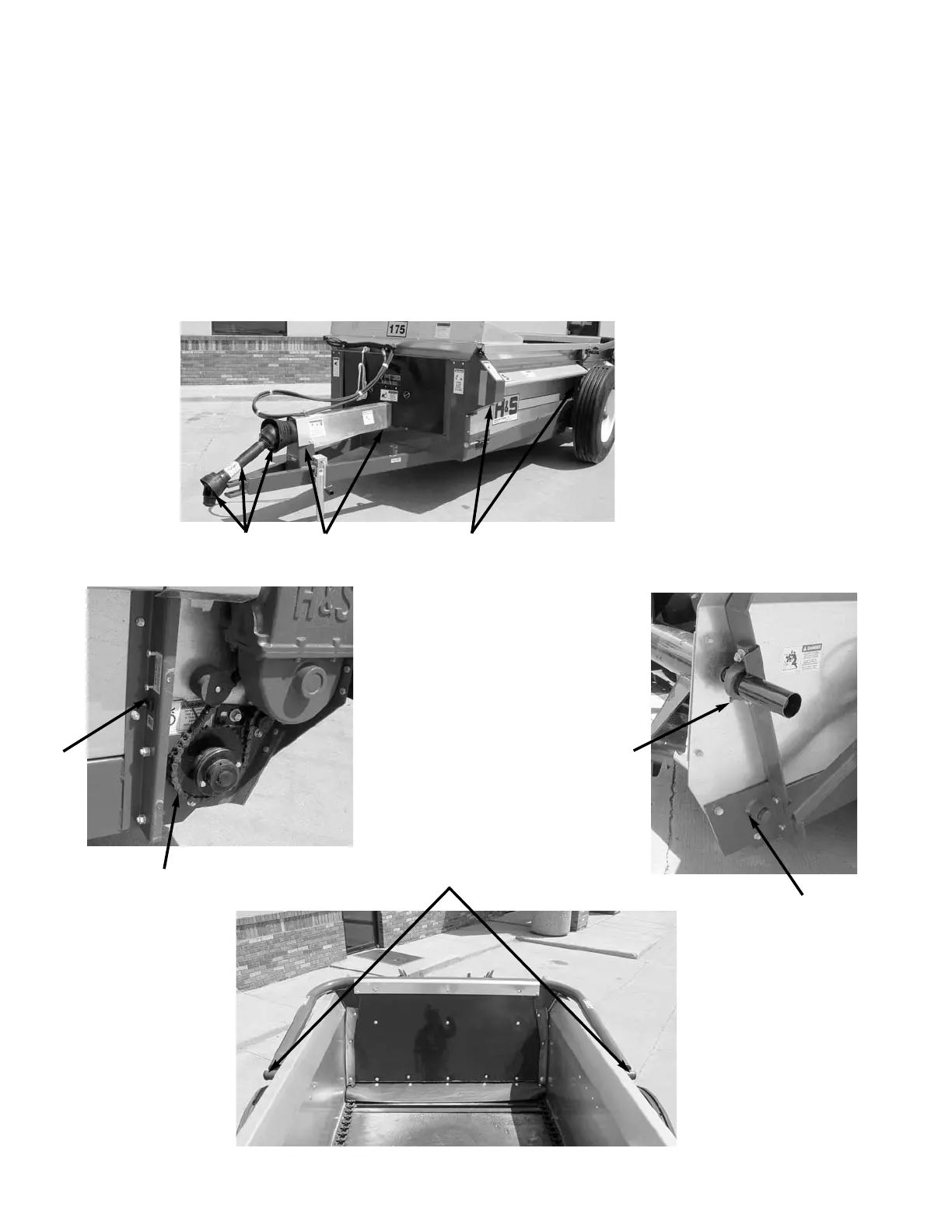

GREASE ZERK LOCATION
A. (3) PTO shaft
B. (2) Front jack shaft bearings
C. (2) Side shaft
D. (2) Rear drive shaft (LH side is a remote fitting)
E. (1) Rear drive shaft shear sprocket
F. (1) Beater bearing (RH side)
G. (2) Hydraulic endgate arms (if equipped with hydraulic endgate)
NOTE: Shields removed in some pictures for clarity. DO NOT OPERATE WITH SHIELDS REMOVED.
-14-
F
D
LUBRICATION GUIDE (Continued)
A B (Under Shield) C (Behind Shield)
D
E
G
To Next Page
