LUBRICATION GUIDE (Continued)
-15-

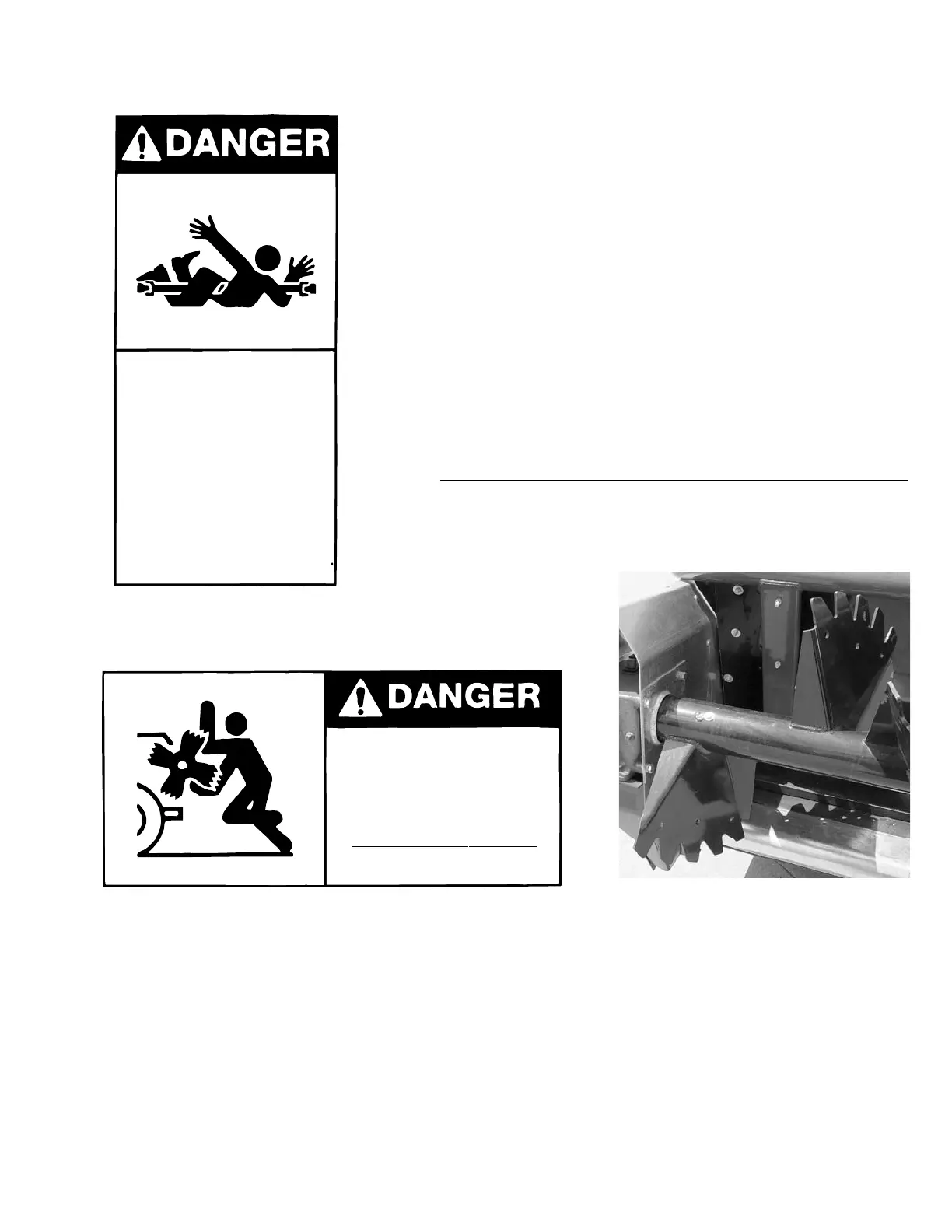

ROTATING DRIVELINE
CONTACT CAN CAUSE DEATH
KEEP AWAY!
DO NOT OPERATE WITHOUT-
• ALL DRIVELINE, TRACTOR AND
EQUIPMENT SHIELDS IN PLACE.
• DRIVELINES SECURELY
ATTACHED AT BOTH ENDS.
• DRIVELINE SHIELDS THAT
TURN FREELY ON DRIVELINE.
PTO ASSEMBLY – Care must be taken to keep the male and
female driving elements well lubricated and free sliding.
Failure to observe this precaution will result in excessive pres-
sure being required to collapse or extend the assembly while
subject to operating torque. This excessive force may damage
or displace the jackshaft bearings. DO NOT lubricate the
shield surfaces. The shield surfaces must be kept dry, as dirt
accumulation on them will quickly cause these units to bind
and not rotate. Care should also be taken to be certain that the
rotating integral shields are not dented or damaged, as this
also will result in excessive force being applied against the
jackshaft. Damaged shields also cause obvious difficulties
when installing the assembly. If at any time the shields do not
turn freely, they should be checked to determine the cause,
and repaired or cleaned. To avoid damage to the main drive
bearings, avoid turning sharp corners while PTO is running.
Start and Stop PT
O slowly to avoid damage to the drive train.
BEATER
As the beater paddles are welded to the beater tube, replacement of these paddles, should it be necessary,
should be performed by authorized service personnel who are competent welders. H&S does provide
replacement tips to be welded onto beater paddles. Initial addition of Beater Tips should be installed as a
complete set to maintain beater balance. Holes are provided in the original beater paddle to accommodate
the replacement tips. Always use H&S special grade 5 bolts, washers, and nuts when replacing tips. Use
H&S part number R10 (1/2’’ GR.5 bolt), R35 (1/2’’ lock washer), and R11 (1/2’’ GR. C, top lock nut). Torque
to 60 foot lbs.
When transporting on the highway, regularly clean the reflective tape at the rear of the spreader.
There is a holder provided for your SMV sign.
STAY CLEAR OF BEATER IF
TRACTOR OR PTO IS RUNNING
BEATER SHUT OFF COULD
ACCIDENTALLY BE ENGAGED
FAILURE TO HEED THIS
WARNING MAY RESULT IN
PERSONAL
INJURY OR DEATH
KEEP CLOTHING, YOURSELF
AND OTHERS WELL CLEAR
