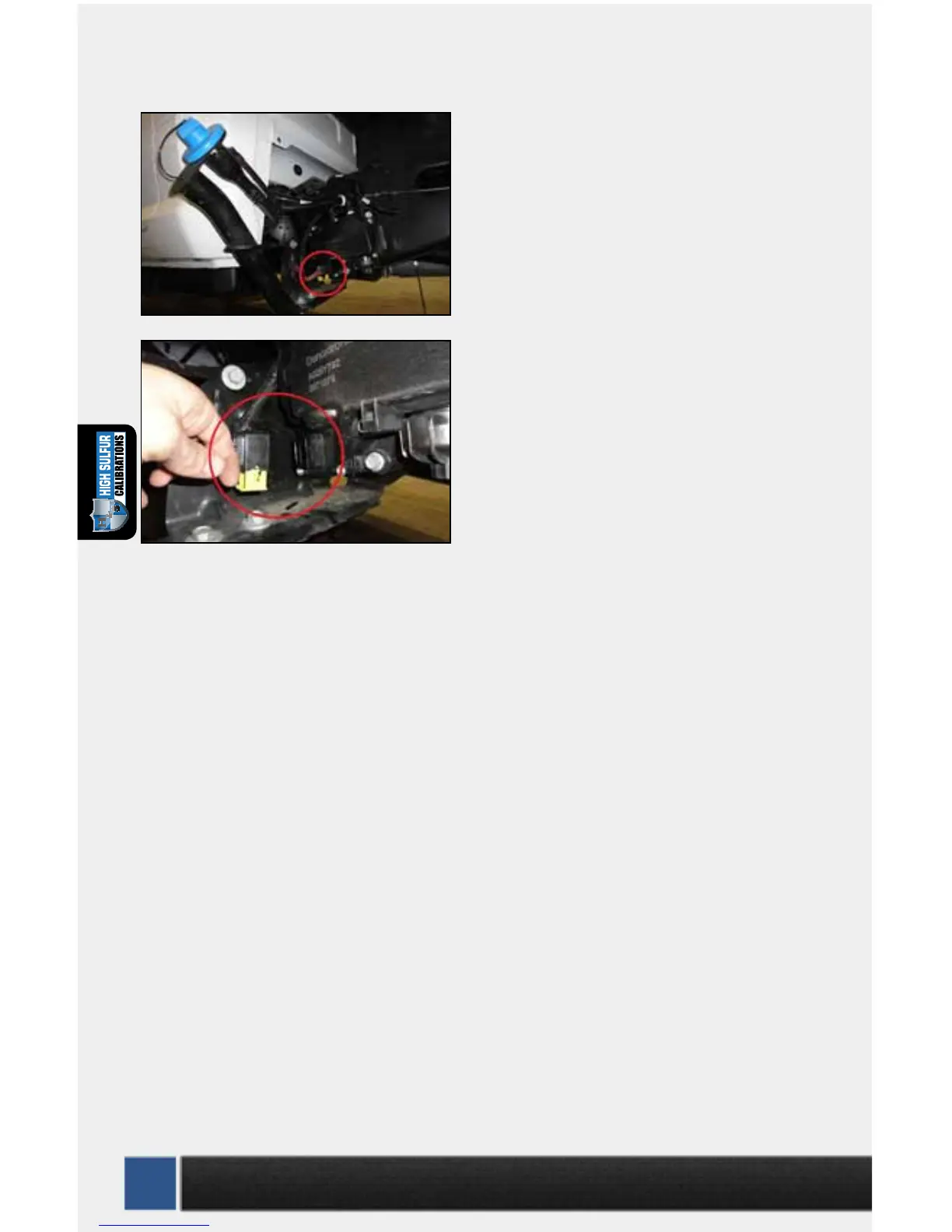

1. Locate the wiring harness with the YELLOW

sliding lock-tab on the Urea pump assembly. The

pump assembly is located near the bottom of the

ller neck support.

2. Slide the yellow lock-tab DOWN to dis-engage

the lock and unplug the harness.

For complete UREA System Removal instruc-

tions, visit

www.hsperformance.com/tech/CCUrea.pdf.

EGR Emissions Equipment

Unlike the previous years, it is no longer mandatory to unplug the EGR system when

installing H&S High Sulfur tuning. You may still unplug the EGR system if desired, or the

EGR system may be left plugged in without any ill eects. The entire EGR system can also be

completely removed with an H&S EGR Delete Kit when running H&S High Sulfur tuning.

Injection Timing

This option allows adjustment of the Injection Timing Calibration tables. There are 5 dierent

settings you can choose from. If you skip this adjustment option, you will be defaulted to level 3

1 - Least Aggressive (Stock Setting)

2 - Less Aggressive

3 - (Default)

4 - More Aggressive

5 - Most Aggressive

NOTE: The injection timing adjustment will aect ALL power levels. This option can only be adjusted during the

Install Download process.
