Spray ball
09513, 09514, 09515, 09516, 09517
BA_009500.03_EN
5 / 6 Albert Handtmann Armaturenfabrik GmbH & Co. KG 2019-03-05
4.1 Assembly instructions
Pos: 13 /Techni sch e Dokum entati on/Be trie bsanl eitung en/M ontag e, Betr ieb, War tung/ Mont age/0 9500/M ontag e 095 00 @ 4\mod_1551776480620_20.docx @ 34610 @ @ 1
The spray ball will be connected with a split-pin to aspecial mounting tube. If necessary,
the complete unit (mounting tube and spray ball) can be dismounted.
Mounting tube Spray ball /DN DIN thread Flange connection
Dome cap
09601 25 - 50 x
09605 50 - 65 x x

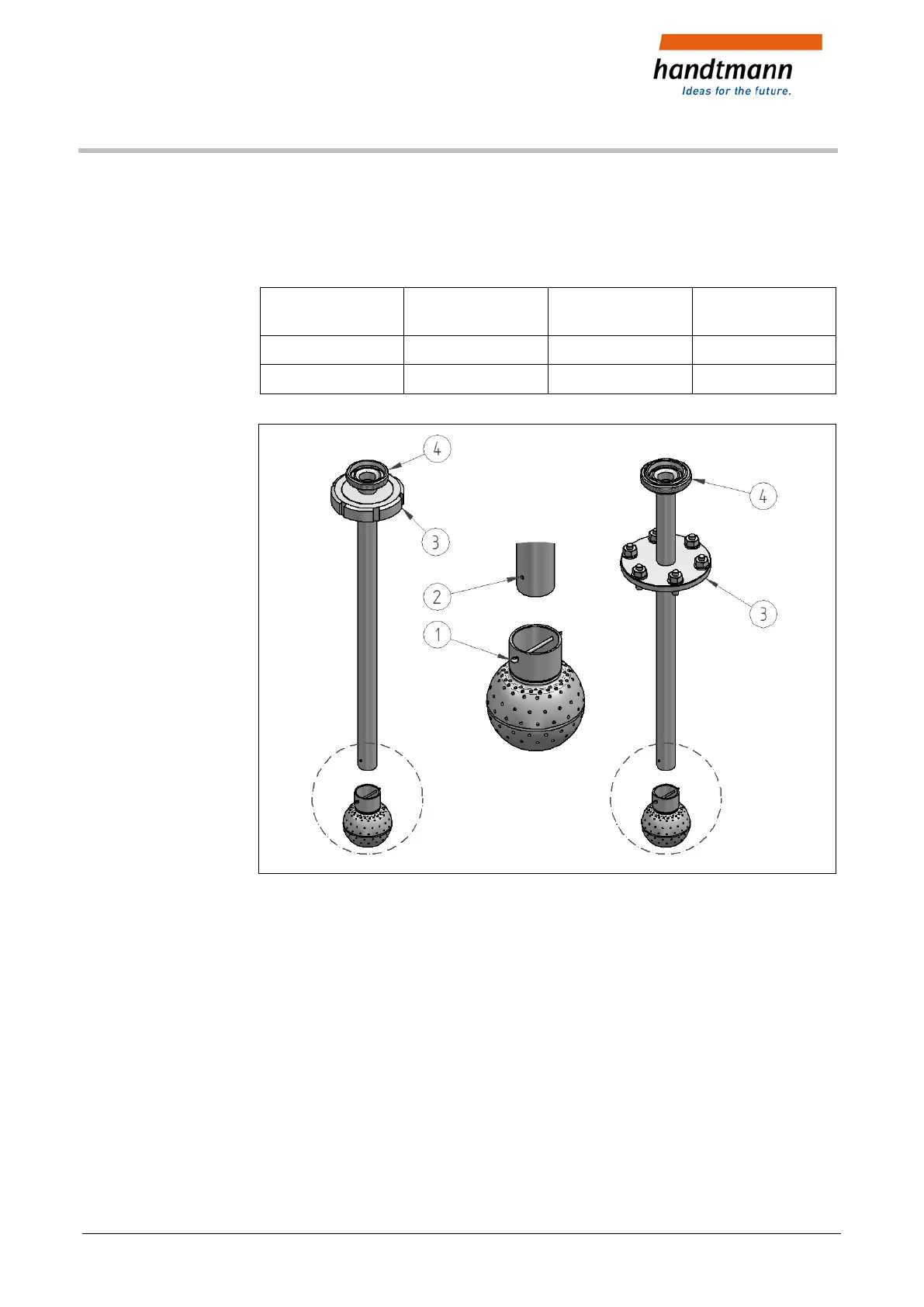

1 Split-pin 2 Split-pin bore hole
3 Tank connection 4 CIP connection
