70
– The proper brake distance is 2.5m when
free load .
– Adjust the height of pedal to 115～125mm .
– Adjust brake booster push rod clearance to
1-3mm .
– The brake lamp should be lighted when the
brake pedal steps on 10-20mm .
5. Check the parking brake lever
The force of hand brake lever is adjusted by
the bolt on the top of lever.
The force increases clock-wise screwing, and
decreases counter lock-wise screw.
CAUTION
To step the brake pedal is helpful to
tighten or loose the hand brake
lever.
6. Check accelerate pedal
The acceleration changes as the stroke
changes.
7. Brake fluid level check
Open the brake lubricated cap cover. Check
the fluid level in the range allowed. If lack,
please add, and check if there is air mix into
the pipe.
CAUTION
Please use brake fluid with one
type, do not mix.
Don’t spatter the brake oil onto the
surface of paint otherwise the paint
will be damaged.
When adding fluid, due should be
taken to prevent dirt or water from
entering the reservoir.

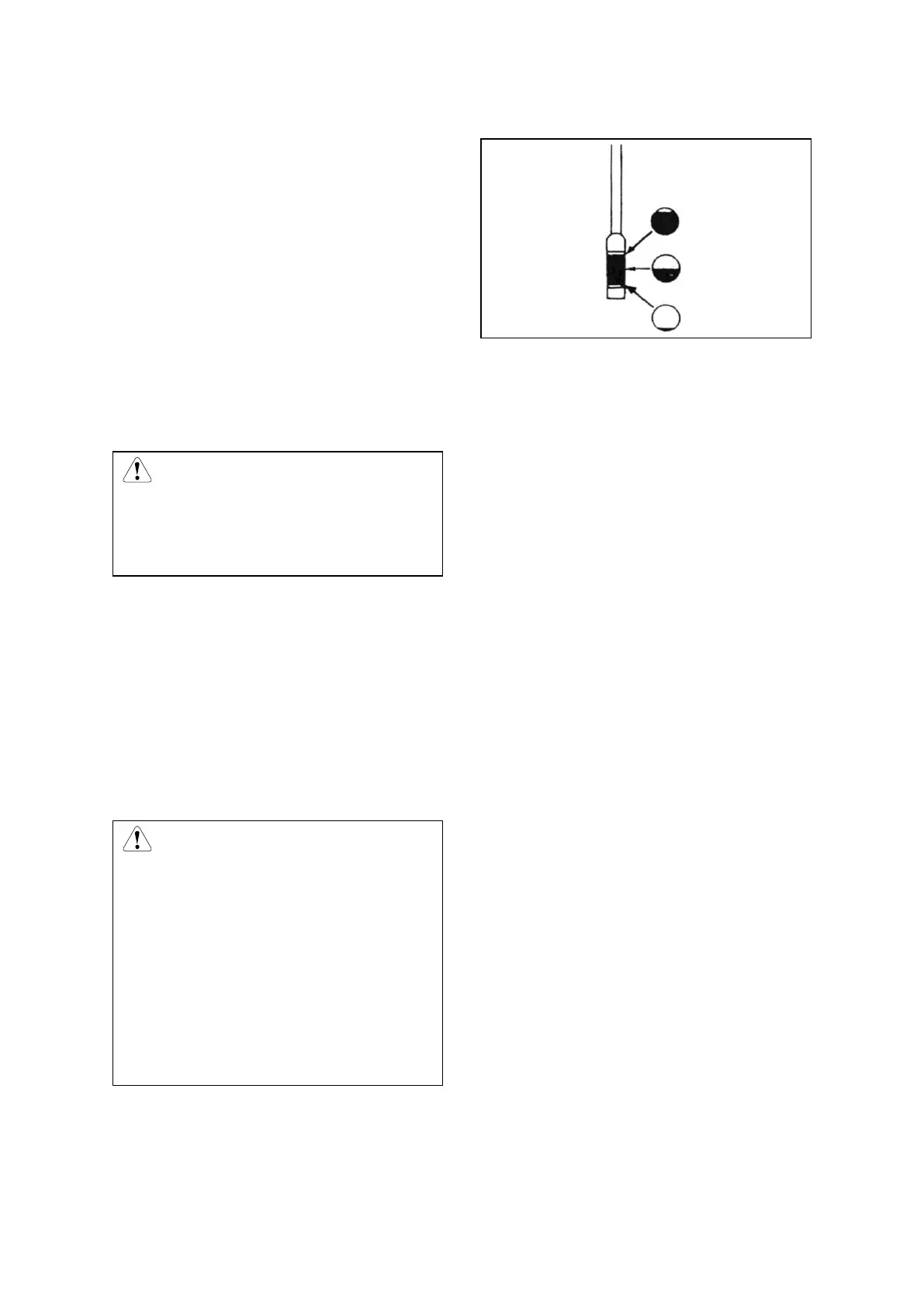

8. Check hydraulic oil
Loose the cap of hydraulic oil inside of right
frame, pull out dipstick and check it if the oil
level is between the scales. Add oil when lack.
9. Replace hydraulic oil
Replace hydraulic oil once half year on
schedule.
– Stop the truck on smooth ground.
– Turn steering wheel right to the bottom, and
enable the fuel drain plug to have the
enough space.
– Tilt mast backwards to the bottom, and fall
the forks to the ground.
– Pull on the hand brake.
– Loose the cap of hydraulic oil, pull out
dipstick.
– Set a plate under the chassis, then loose the
fuel drain plug, and put the old oil.
– Dispose the old oil according to local
environmental protection laws.
– Twist the fuel drain plug, join the new
hydraulic fluid, and inspect whether have a
leakage.
– Start the truck, lifting for 3-5 times, and tilting
for 3-5 times.
– Add hydraulic oil to required scale.
10. Drivers seat adjustment
Make sure the driver’s seat is properly located.
If not properly, shift the adjusting lever to the
right and move the driver’s seat to a position
which provides easy access to all foot and
hand controls. After adjustment, shake the
driver’s seat a little to be sure that it is securely
locked. Adjust the weight.
