Diagram
8

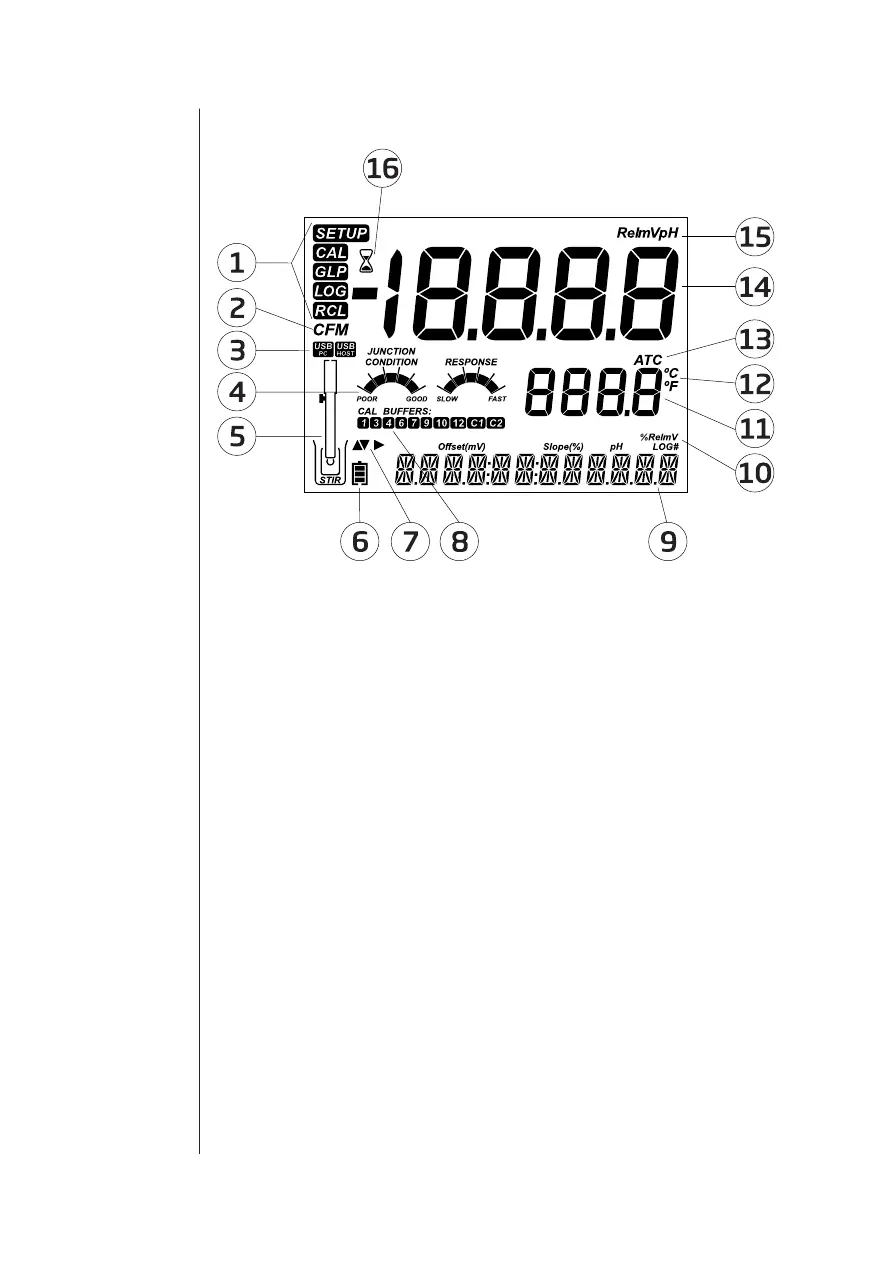

Guide to
Indicators
1. Mode tags
2. Con rm tag
3. USB connection status
4. pH electrode diagnostics
5. Probes symbol
6. Battery symbol
7. Arrow tags, displayed when they
are available
8. pH calibration bu ers used
9. Third LCD line, message area
10. Labels
11. Second LCD line, temperature
measurement
12. Temperature units
13. Temp. Compensation status
14. Measurement line
15. Measurement units
16. Stability Indicator
The third line of the LCD (9) is a dedicated message line. During measurement
the user may use the pq arrows to select desired message. Options include
date, time, calibration data, battery charge or no message. If a measurement
error or log status change occurs during measurement, the third line will display
a pertinent message.
