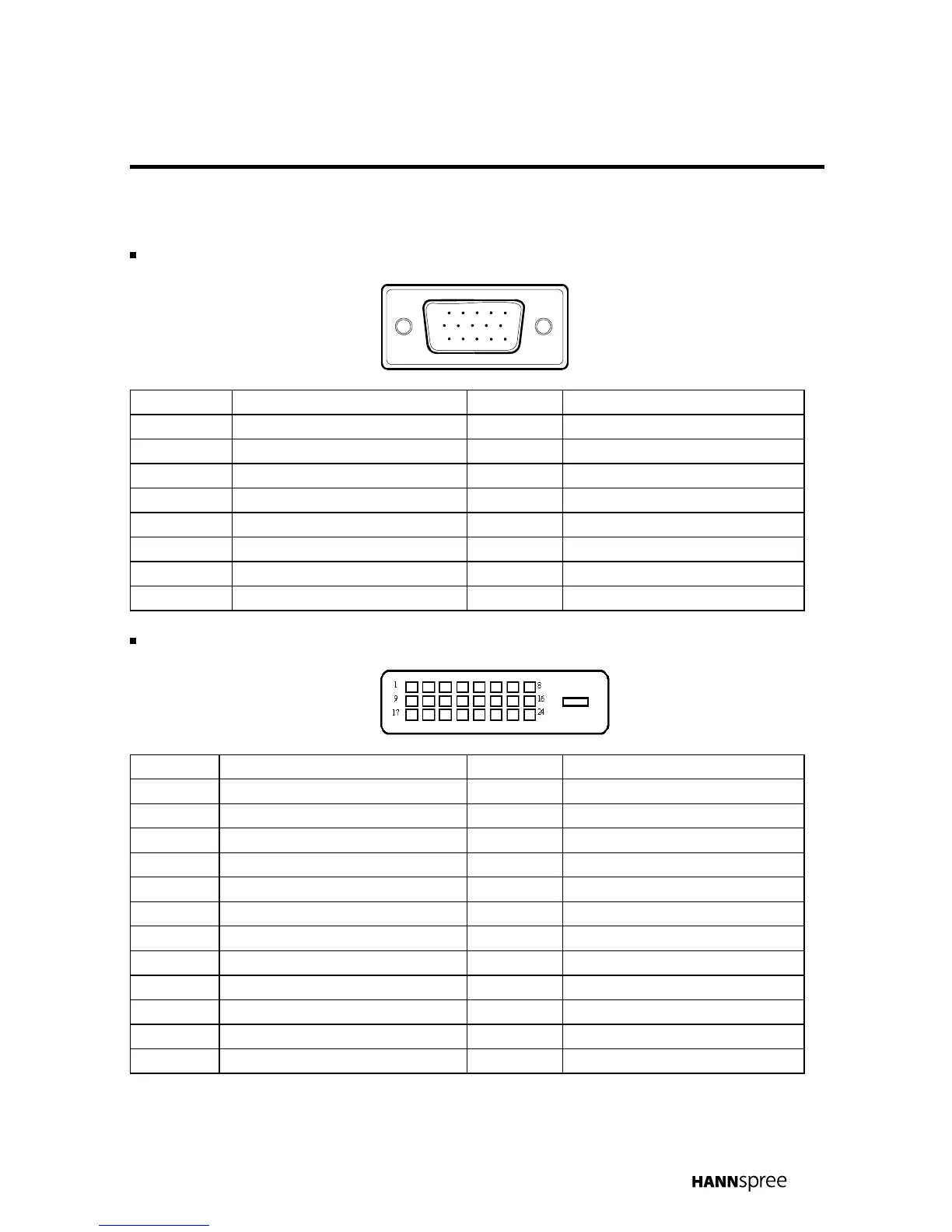

CONNECTOR PIN ASSIGNMENT
15 - Pin Color Display Signal Cable:
15
6
10
11 15
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1. Red 9. +5V
2. Green 10. Cable Detection
3. Blue 11. Ground
4. Ground 12. DDC-Serial Data
5. Ground 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC-Serial Clock
8. B-Ground
24 - Pin Color Display Signal Cable: (Dual Input Mode)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1. TMDS Data 2- 13. No Connection
2. TMDS Data 2+ 14. +5V Power
3. TMDS Data 2/4 Shield 15. Ground(for+5V)
4. No Connection 16. Hot Plug Detect
5. No Connection 17. TMDS Data 0-
6. DDC Clock 18. TMDS Data 0+
7. DDC Data 19. TMDS Data 0/5 Shield
8. NC 20. No Connection
9. TMDS Data 1- 21. No Connection
10. TMDS Data 1+ 22. TMDS Clock Shield
11. TMDS Data 1/3 Shield 23. TMDS Clock +
12. No Connection 24. TMDS Clock -
