Pins 5 and 6 of the 18-way mini fit connector are mainly used for bus reversing and battery guard. But they
can be used for any other external inputs such as for emergency message, bus stopping or information
message.
For more details about the ERIC++ bus reversing and battery guard connection cable, please refer to
Appendix A: Cable Assembly Drawing in the ERIC++ Controller - Installation and Operation Manual (ref.
54/0114-8).
 Controller with external input options unavailable
The CX330N adaptor cable allows the DG3 to replace an ERIC++ controller in an existing installation not
using external input options.

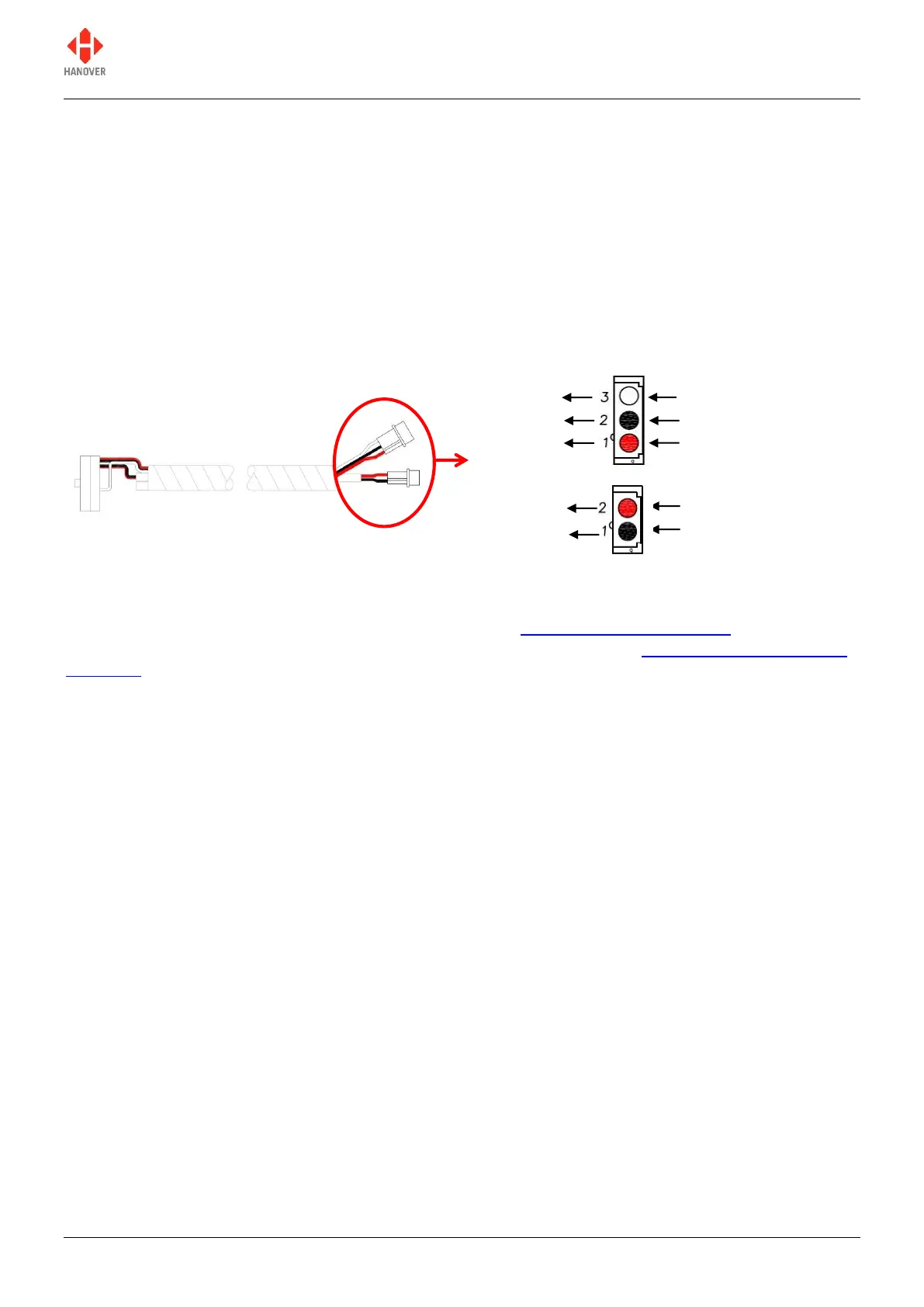

Figure 9 - CX330N cable & pinouts
For more details about bus stopping, please refer to section 3) Displaying ‘Bus stopping’.
For more details about the 18-way mini fit connector, please refer to section Appendix A: 18-way mini fit
connector.
RS485A
RS485B
+24V
+0V
+24V optional output
pin 6
pin 1
pin 10
pin 11
pin 2
18-way mini fit
connector
