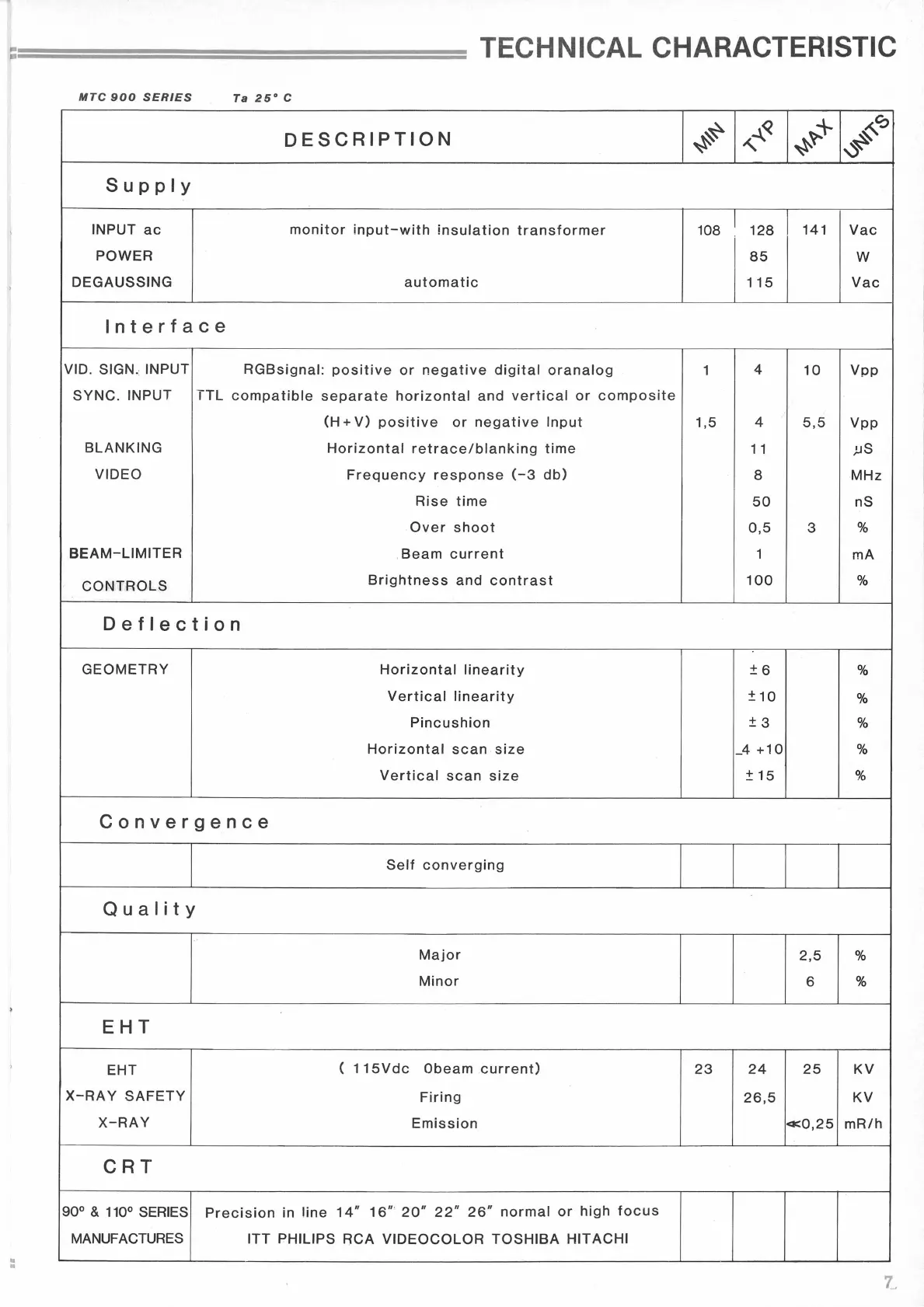

TECHNICAL CHARACTERISTIC
MTC 900 SERIES
Ta 25° C
~~
~~
~+
Cj
DESCRIPTION
~~
"
~
Supply
INPUT ac
monitor input-with insulation transformer
108
I
128
141
Vac
POWER
85
w
DEGAUSSING automatic
115 Vac
lnterf ace
VID. SIGN. INPUT
RGBsignal: positive or negative digital oranalog
1
4
10
Vpp
SYNC. INPUT
TTL compatible separate horizontal and vertical or composite
(H + V} positive or negative Input
1,5
4
5,5 Vpp
BLANKING
Horizontal retrace/blanking time
11
)..JS
VIDEO
Frequency response (-3 db}
8 MHz
Rise time
50 nS
Over shoot
0,5
3
%
BEAM-LIMITER
. Beam current
1
mA
CONTROLS
Brightness and contrast 100 %
Deflection
GEOMETRY
Horizontal linearity
±6
%
Vertical linearity
±10
%
Pincushion ±3
%
Horizontal scan size
_4 +10
%
Vertical scan size ±15
%
Convergence
Self converging
Quality
Major
2,5 %
Minor
6
%
EHT
EHT
( 115Vdc
Obeam current}
23 24 25 KV
X-RAY SAFETY
Firing
26,5
KV
X-RAY
Emission
«0,25 mR/h
CRT
90° & 110° SERIES
Precision in line 14" 16" ' 20" 22" 26" normal or high focus
MANUFACTURES
ITT PHILIPS RCA VIDEOCOLOR TOSHIBA HITACHI
:
l,
