Features and Function
HDG2000 Series Arbitrary Waveform Generator 28

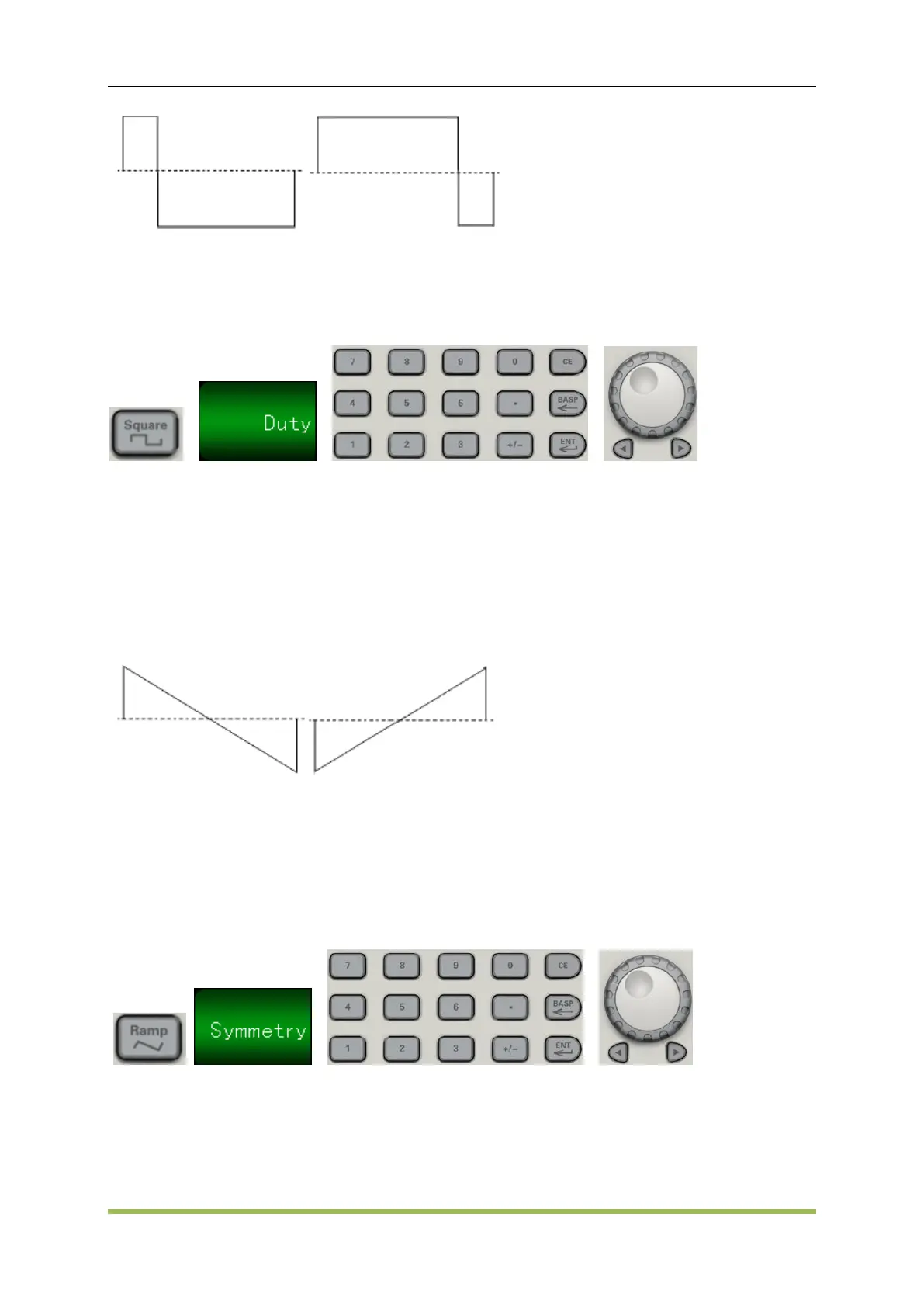

20% Duty Cycle 80% Duty Cycle
Duty Cycle: 0.001% to 99.996% at low frequencies; range reduced at higher frequency. Stored
in volatile memory; default 50%.
Front Panel:
If you use the keypad, press ENT button to finish:
SCPI:
SOURce<n>:FUNCtion:SQUare:DCYCle <percent>|MINimum|MAXimum
Symmetry (Ramp Waves)
Applies to ramp waves only. Symmetry represents the fraction of each cycle that the ramp wave is
rising.
0% Symmetry 100% Symmetry
The symmetry (default 50%) is stored in volatile memory; and is remembered when you change
to and from other waveforms.
When ramp is the modulating waveform for AM, FM, PM, or PWM, the symmetry setting does
not apply.
Front Panel:
SCPI：
SOURce<n>:FUNCtion:RAMP:SYMMetry <symmetry>|MINimum|MAXimum
SOURce<n>: FUNCtion:RAMP:SYMMetry? [MINimum|MAXimum]
