Hantek HDG2032B User Manual

Waveform Generation Tutorial
HDG2000 Series Arbitrary Waveform Generator 58
Programmable Signal: Users can edit digital signal.
Sync Signal: Output Synchronized signal of CH1.
OFF: Turn off
1)Programmable Signal
User can set the following parameters for the programmable signal.
Mode: Cycle and Step
Size: Set the number of programmable signal
Internal: In cycle mode, the internal time between a signal and the other.
Index: Index of signal
Value: Set 16bit digital signal value

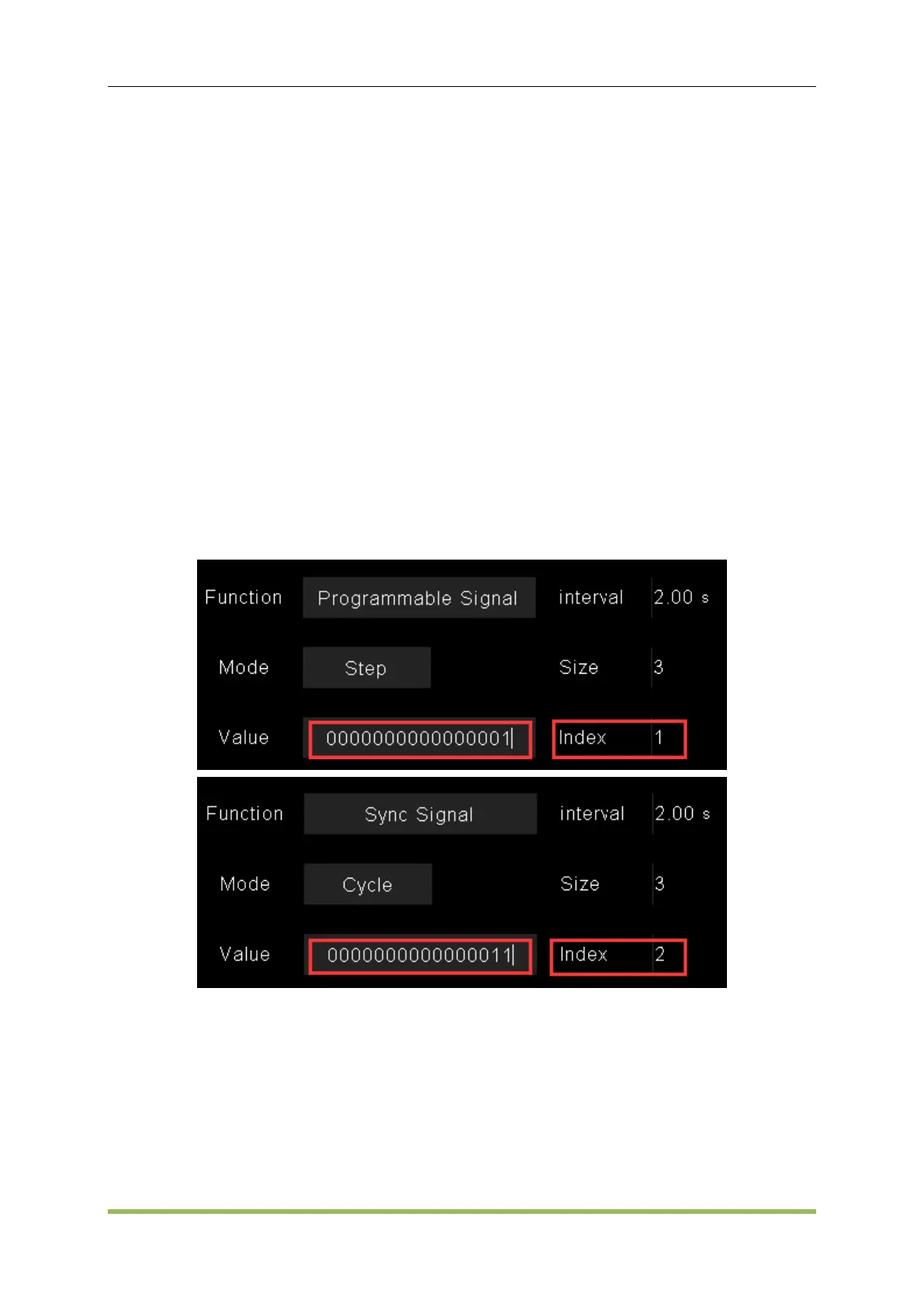

For example,
Mode, Size, Interval and Index set to Cycle, 3, 2s and 3. And set the three digital signals to
0000000000000001, 0000000000000011, 0000000000000111 in turn. After completing setting for
a signal, please press ENT button to confirm and save it. Then the three digital signals will output
in turn and periodically.
