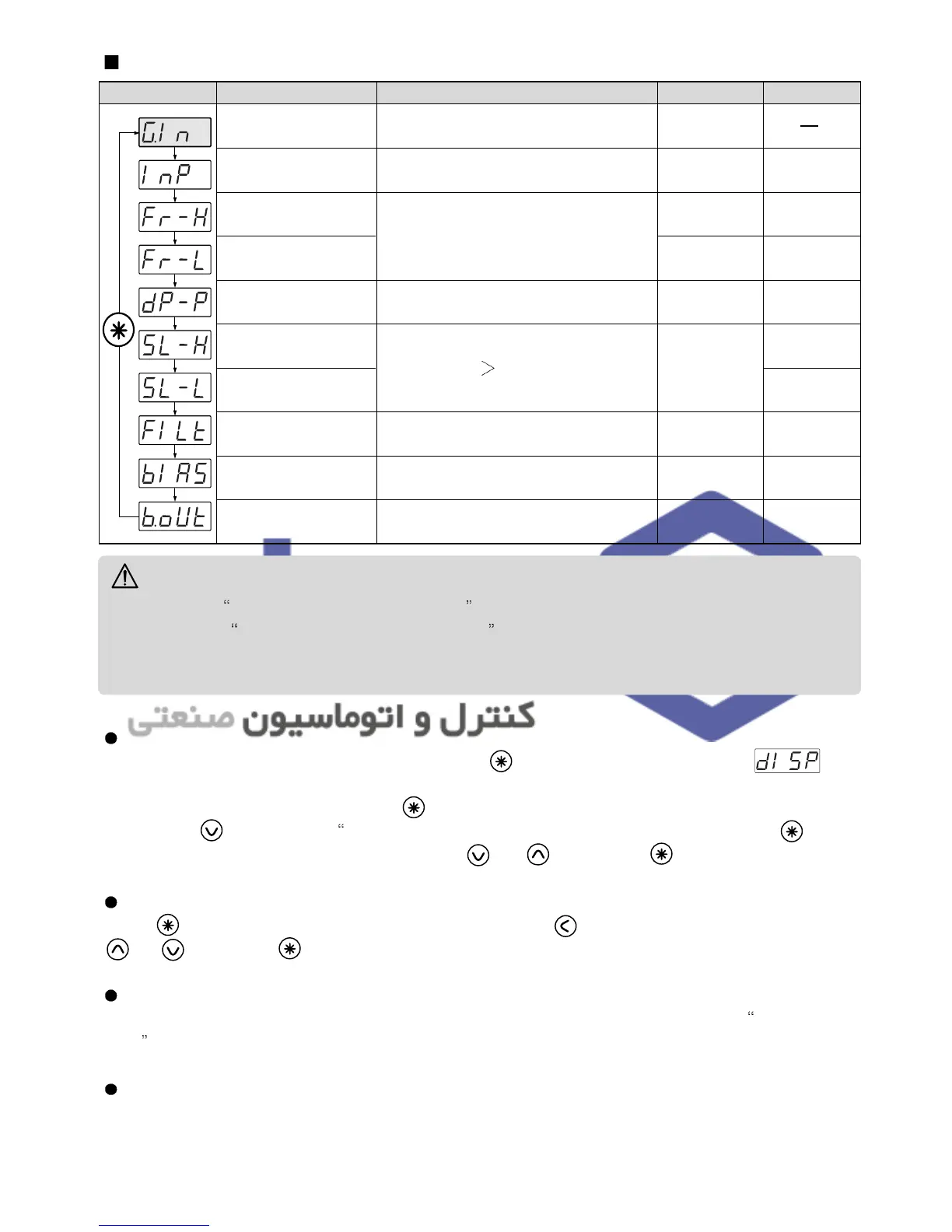

Input type selection
After power ON and when PV is indicating, press key for 3 sec to be displayed at
PV and 3 at SV. (If it is not indicated 3, set again in the level setting mode)
Control group is indicated when press key once more. At the time, input group is indicated
when press key and then
Input type and range selection is shown at SV when press .
At this time the input and range is selected by or key. Press key to confirm
Maximum and Minimum range
Press key to set Maximum and Minimum range using ,
or key. Press key once more to finish.
Decimal point
Parameter is not indicated in T.C and R.T.D input, but when selecting voltage input
Decimal
point
mode is indicated. (set 1 : 0.0, set 2 : 0.00, set 3 : 0.000)
Maximum and Minimum on scale
It is the same function as Maximum and Minimum Range setting when R.T.D or thermocouple
input. This mode is indicated when voltage input ( 30, 31, 32, 33 )
Selection
NO.1
1370
-200
1
100.0
0.0
OFF
EUS(0.0 %)
UP
Initial valueConditionDescriptionNameSignal
Input group
Input signal selection
High limit
Low limit
Decimal point
(on voltage input)
Maximum on scale
(on voltage input)
Minimum on scale
(on voltage input)
PV filter
PV bias
Burn-out
Input type and mode selection
Refer to input signal and range
Refer to input signal and range
( Notice : FR-H > FR-L )
Thermocouple or R.T.D : Not available
DC Voltage : 0~3
-1999~9999
Notice : SL-H
SL-L
Deimal point : according to DP-P
OFF/1~120sec
EUS (-100.0~100.0%)
OFF / UP / DOWN
Always
Always
Always
Always
On voltage
input (mV,V)
On voltage
input (mV,V)
Always
Always
Always
21
Input group setting
When setting, Input type selection number must be selected in the input type selection
mode and also
Output type selection number must be selected in the output type selection
mode before moving to other mode.
If not, data of other group will be changed to prior value.
CAUTION
