Cables and Connectors

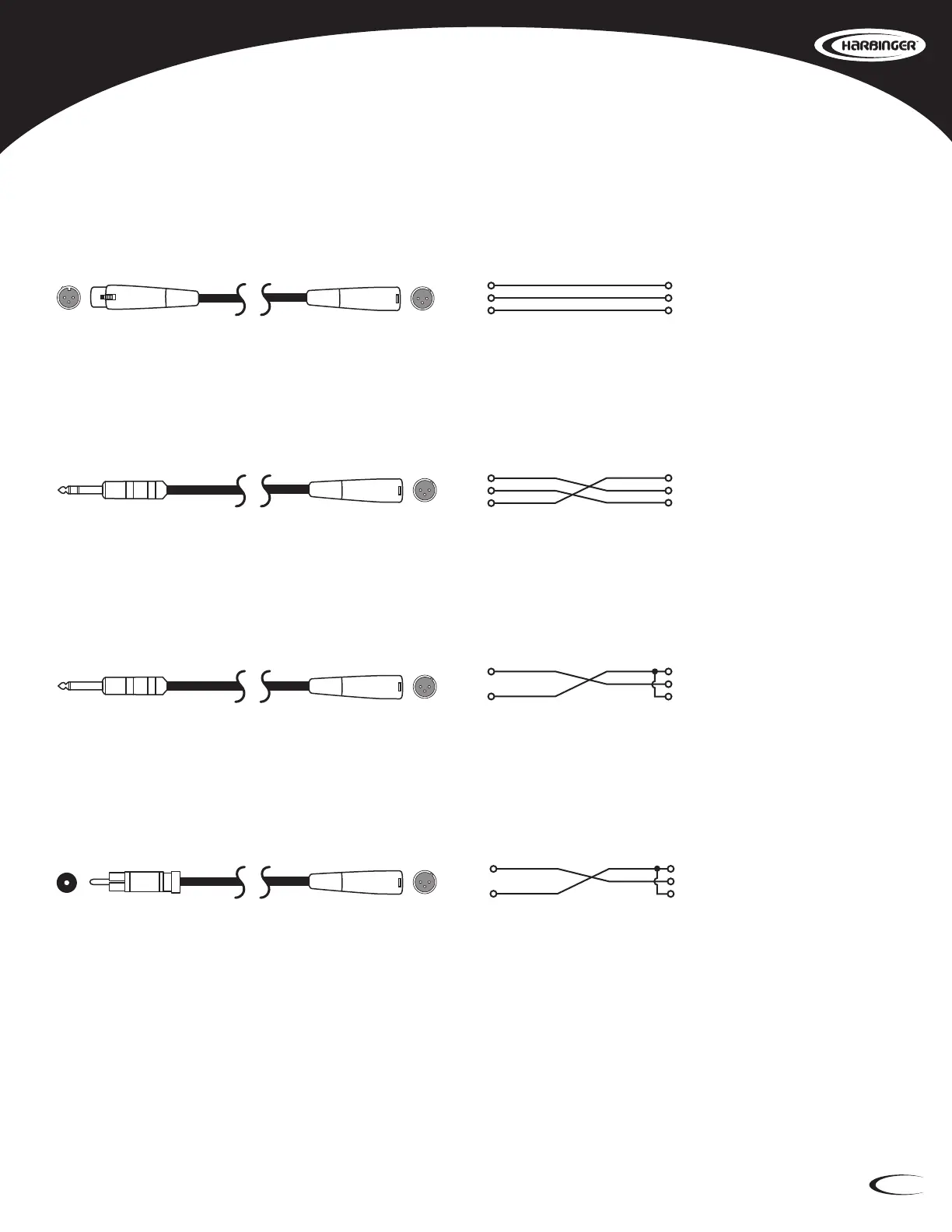

XLR/F to XLR/M microphone cable
1
1 (shield)
2
2
3
3
TRS (balanced) ¼" phone jack to XLR/M
Tip
1 (shield)
Ring
2
Sleeve
3
TS (unbalanced) ¼" phone jack to XLR/M
Tip
1 (shield)
2
Sleeve
3
XLR/M to RCA (phono) cable
1
Center
2
3
Shield
Balanced XLR mixer
output to HP speaker
Balanced ¼" mixer
output to HP speaker
Unbalanced ¼" mixer
output to HP speaker
Unbalanced RCA mixer
output to HP speaker
