Set-up Diagrams
Checklist
•
Make certain loudspeakers are Powered
OFF
and Levels
turned down.
•
Connect the Mixer’s Main Left Output to the Input of the Left
Main Speaker.
•
Connect the Mixer’s Main Right Output to the Input of the Right
Main Speaker.
•
Turn down the Mixer’s volume.
•
Power
ON
Mixer, then Power
O
N
speakers.
•
Bring the Mixer’s volume up to normal operating level.
•
Adjust the Level controls on the HP series loudspeakers.
•
Do not adjust the Level so high that the Red LIMIT LED is
constantly lit.
•
Set the Low Cut switch to ON if you want less bass response
and greater vocal clarity.
MAIN OUTPUT
LR

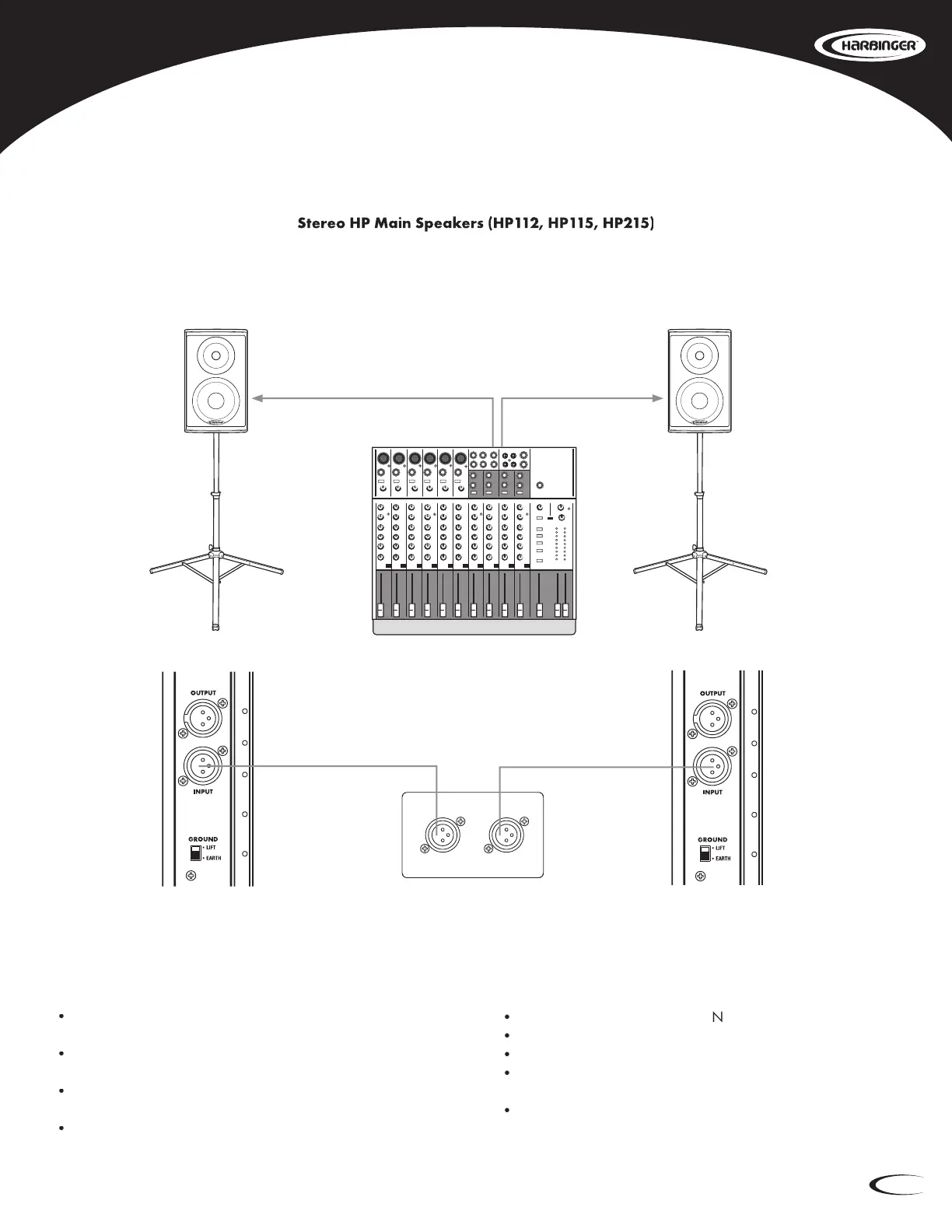

Stereo HP Main Speakers (HP112, HP115, HP215)
