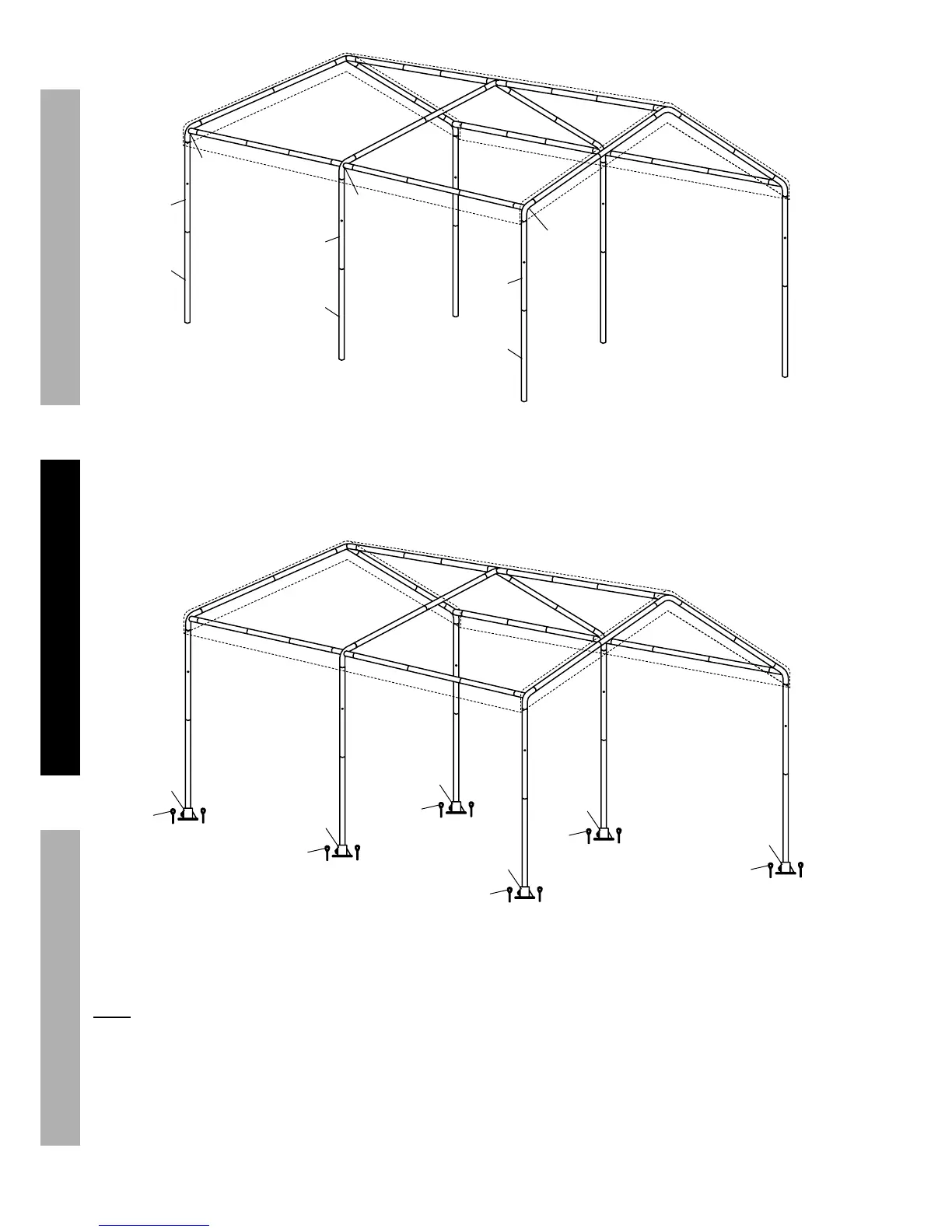

Figure 6: Leg Assembly - 2
6. Attach a Straight Tube (1) to each 3- and 4-Way Connector (5, 6) on the other side of the assembly.
Attach a Swaged Tube (2) to the bottom of each Straight Tube.
8
7
8
7
8
7
8
7
8
7
8
7
Figure 7: Foot Plate (8) Assembly
7. Place a Foot Plate (8) over the bottom of each Swaged Tube (2).
Use two Base Fastening Stakes (7) through each Foot Plate to anchor the Canopy.
Note: Verify that there are no utility lines nearby before driving anchors.
