SKU 93662 For technical questions, please call 1-800-444-3353. Page 8

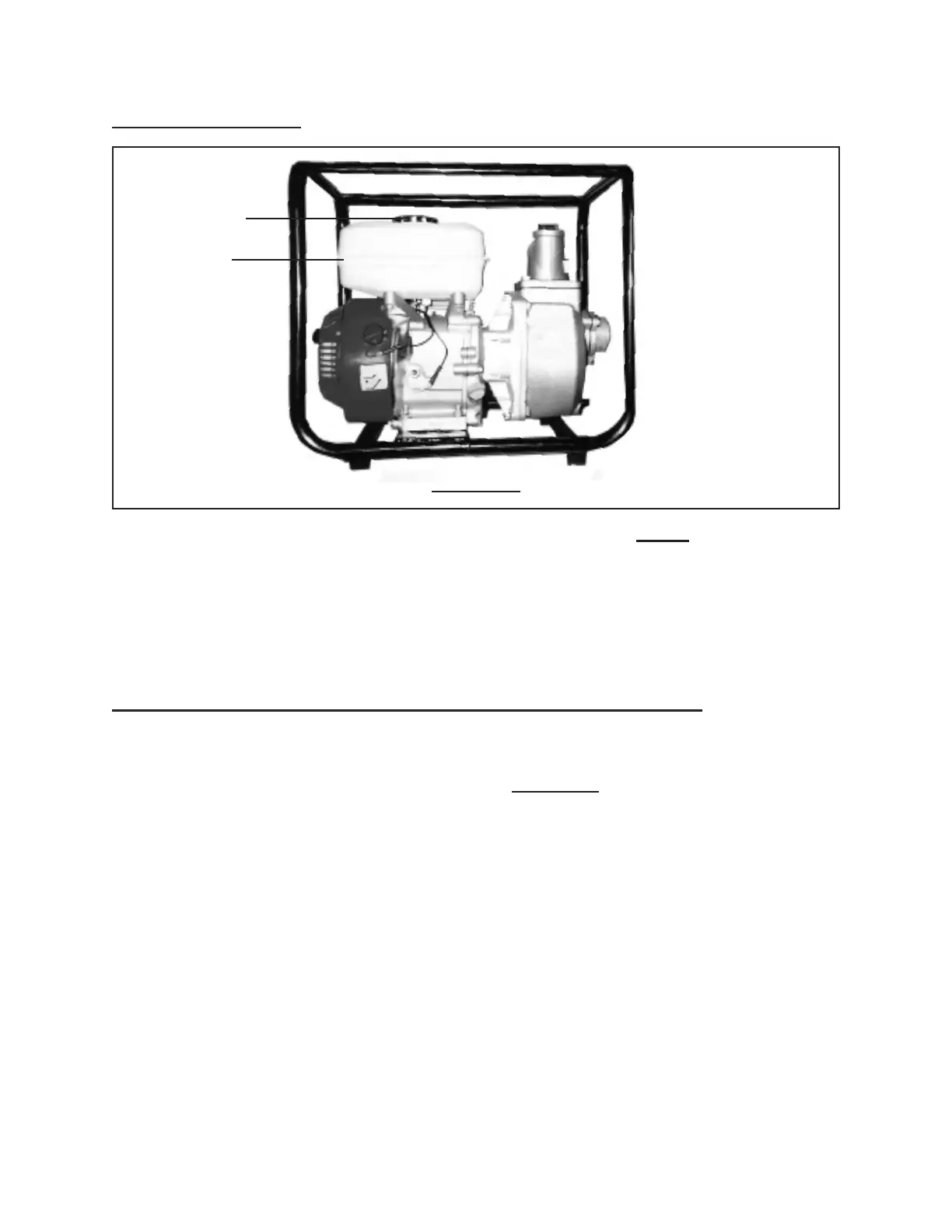

To Fill The Fuel Tank:
FUEL TANK CAP
(83A)
FUEL TANK
(84A)
FIGURE B
1. Prior to rst using the Water Pump, the Fuel Tank (84A) MUST be lled with high
octane unleaded gasoline. (See Figure B.)
To do so, remove the Fuel Tank Cap (83A) and ll the Fuel Tank with unleaded 2.
gasoline. Then, replace the Fuel Tank Cap. Thereafter, check the Fuel Tank (84A)
for the amount of unleaded gasoline. When necessary, rell the Fuel Tank.
(See Figure B.)
To Connect An Intake Hose & Discharge Hose To The Water Pump:
The Intake Filter (21) that is provided with the Water Pump should be attached to 1.
the end of the Intake Hose (not included) with a Hose Clamp that is provided with
the Intake Union Set (9). (See Figure C, next page.)
To connect the other end of the Intake Hose to the Water Pump, slide the Coupling 2.
Gasket onto the Hose Coupling of the Intake Union Set (9). Slide the Hose Clamp
and Hose Joint of the Intake Union Set (9) onto the end of the Intake Hose. Insert
the Intake Hose onto the Hose Coupling, and rmly tighten the Hose Clamp to
secure the Intake Hose onto the Hose Coupling. Then, screw the Hose Joint onto
the Intake Flange (14) of the Water Pump. (See Figure C.)
To connect a 3. 2” diameter Discharge Hose (not included) to the Water Pump, slide
the Coupling Gasket onto the Hose Coupling of the Discharge Union Set (9). Slide
the Hose Clamp and Hose Joint of the Discharge Union Set (9) onto the end of the
Discharge Hose. Insert the Discharge Hose onto the Hose Coupling, and rmly
tighten the Hose Clamp to secure the Discharge Hose onto the Hose Coupling.
Then, screw the Hose Joint onto the Discharge Flange (10) of the Water Pump.
(See Figure C.)
