Place Rubber Cap (5) on the Handle 5.
and tighten Bolt (6) into the Right Cap
(11).
Using a screwdriver (not included), 6.
fasten the two Cord Wrap Frames
(29) to the Side Cover (30) using four
Screws (28). See Figure B.
Use included Hex Wrench (122) to 7.
loosen Head Screw (79) on the frame
of the Dust Chute (80). Slide Dust
Chute over Fan Housing (78). Fasten
Dust Chute in place by tightening
Head Screw. See Figure C.
A dust collection bag can be attached 8.
to the dust Chute to collect wood
chips, however it is critical to ensure
dust bag is emptied frequently to
prevent clogging.
WARNING: ENSURE DUST BAG
IS EMPTIED FREQUENTLY.
REDUCED FLOW CAN CAUSE
WOOD CHIPS TO CLOG AND
BREAK EXHAUST FAN. FOR BEST
RESULTS, USE VACUUM SYSTEM
INSTEAD OF DUST BAG.
WARNING! 9. Make sure Blade
is fastened and tightened down
securely before beginning any work.
Refer to “Changing Cutting Blades”
section of this manual to tighten
blade properly).
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the
tool to its “OFF” position and
unplug the tool from its
electrical outlet before
performing any inspection,
maintenance, or cleaning
procedures.
Work Piece and Work Area Set Up
Designate a work area that is clean 1.

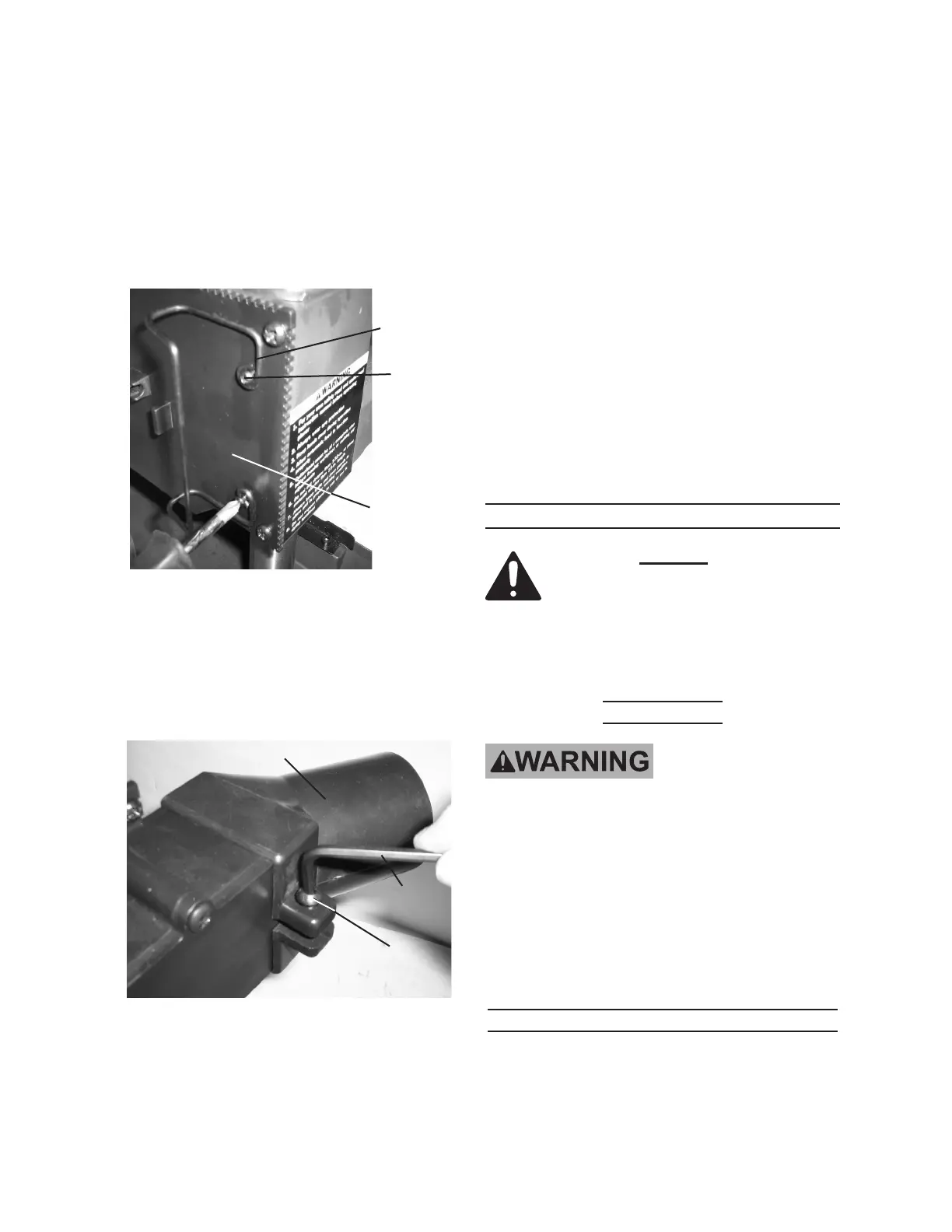

Figure B
Side
Cover (30)
Cord Wrap
Frames (29)
Screws
(28)
Figure C
Hex Wrench
(122)
Head Screw
(79)
Fan Housing
(78)
Dust Chute (80)
Rev 10d, 10k
