Harbor Freight Tools LuminarWORK 69286 - Parts List and Warranty; Parts List and Diagram; Battery Removal and Recycling

Page 7
For technical questions, please call 1-800-444-3353.
Item 69286
SAFETYOPERATIONMAINTENANCE SETUP
Removing and Recycling the 3.7V D
Removing and Recycling the 3.7V D
C
Battery:
Battery:
Note:
The Battery for this product is rechargeable
The Battery for this product is rechargeable
and long lasting. When it is worn beyond further
use, it should be removed and recycled
.
To remove the Battery from the
Housing (2), follow these steps:
10.
Remove the seven Screws from the Housing.
11.
Pull the Housing (2) apart and remove
the wires connected to the Battery.
12.
Remove the Battery from the Housing (2).

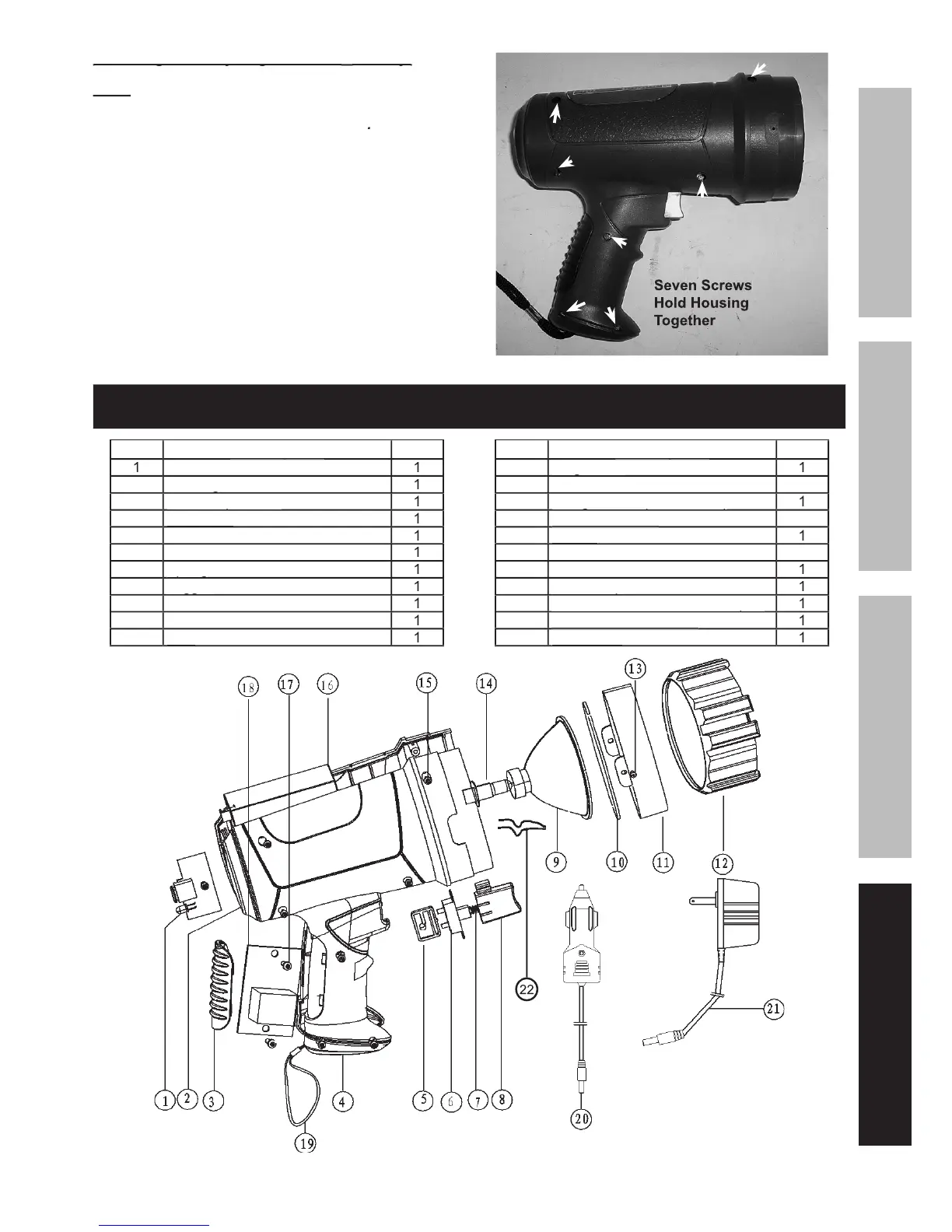

Seven Screws
Hold Housing
Together
Figure
G
Parts List and Diagram
P
art
Description
Description
Qty
Qty
1
Circuit Board
1
2
Housing
Housing
1
3
Pistol Grip Holder
Pistol Grip Holder
1
4
Pistol Grip
Pistol Grip
1
5
Lock Switch
1
6
Switch
1
7
Spring
Spring
1
8
Trigger
Trigger
1
9
Reflector
1
10
Lens
1
11
Ring
Ring
1
P
art
Description
Description
Qty
Qty
12
Ring Cover
Ring Cover
1
13
Screw
2
14
Halogen Bulb (25W H3 4V)
Halogen Bulb (25W H3 4V)
1
15
Screw (Housing)
Screw (Housing)
7
16
Battery
Battery
1
17
Screw
2
18
Circuit Board
1
19
Wrist Wrap
Wrist Wrap
1
20
Auto, Boat, RV, 12V DC Adaptor
Auto, Boat, RV, 12V DC Adaptor
1
21
AC/DC Adaptor (120V)
AC/DC Adaptor (120V)
1
22
Spring Clip
Spring Clip
1
