If there are multiple ISO implements connected,
press the VT button to toggle between
Working Sets.
The Working Sets can also be accessed by pressing
tabs (A) or (B) individually.
ATTENTION! If the HARDI® VT displays the
default 4 boom section (4 red lines below
the boom), then there is no communication
with the JobCom. Make sure to power On
the JobCom on at the SetBox before
proceeding.

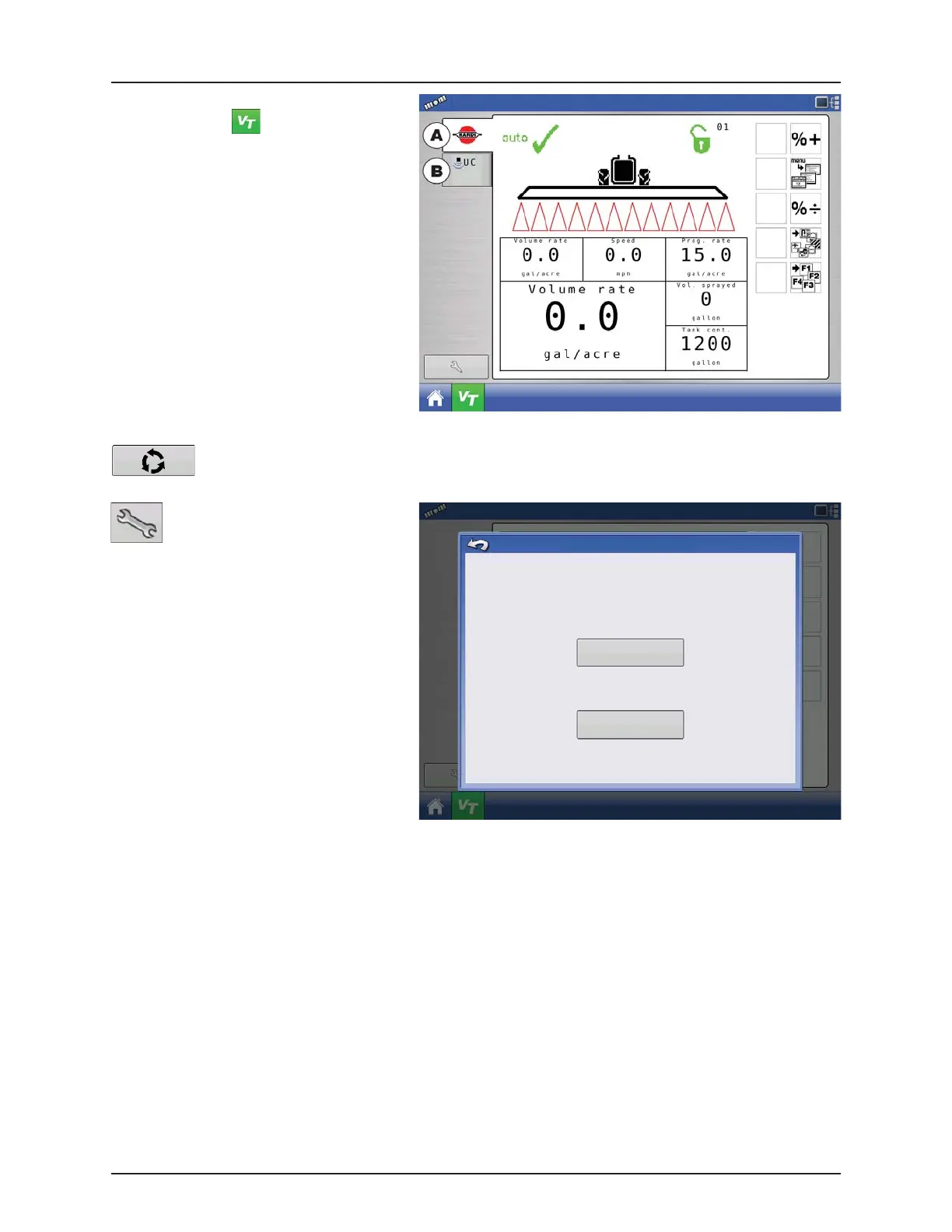

Advance through multiple screens of soft keys. This button remains hidden unless more than 10 soft keys
are present.
Opens the Virtual Terminal Settings
screen.
• Auxiliary
Assign implement functions to ISO
compatible inputs.
• Clear Virtual Terminal
Allows operator to clear the Object Pools
sent to the display from the implement WSM.
After the object pools have been cleared, the
next time the implement is connected the
object pools will be transferred from the
implements WSM to the display again. When
this button is pressed, a warning dialogue
box appears with the following message:
“Are you sure you want to clear the saved
interface files from all virtual terminal devices
Each device will resend its interface the next
time it is connected.”
ATTENTION! No data will be lost while clearing the Virtual Terminal. All data will be reloaded to the display next time
the HARDI® JobCom is connected.
Auxiliary
Assignment
Virtual Terminal Settings
Clear Virtual
Terminal
