Swath Section Offsets

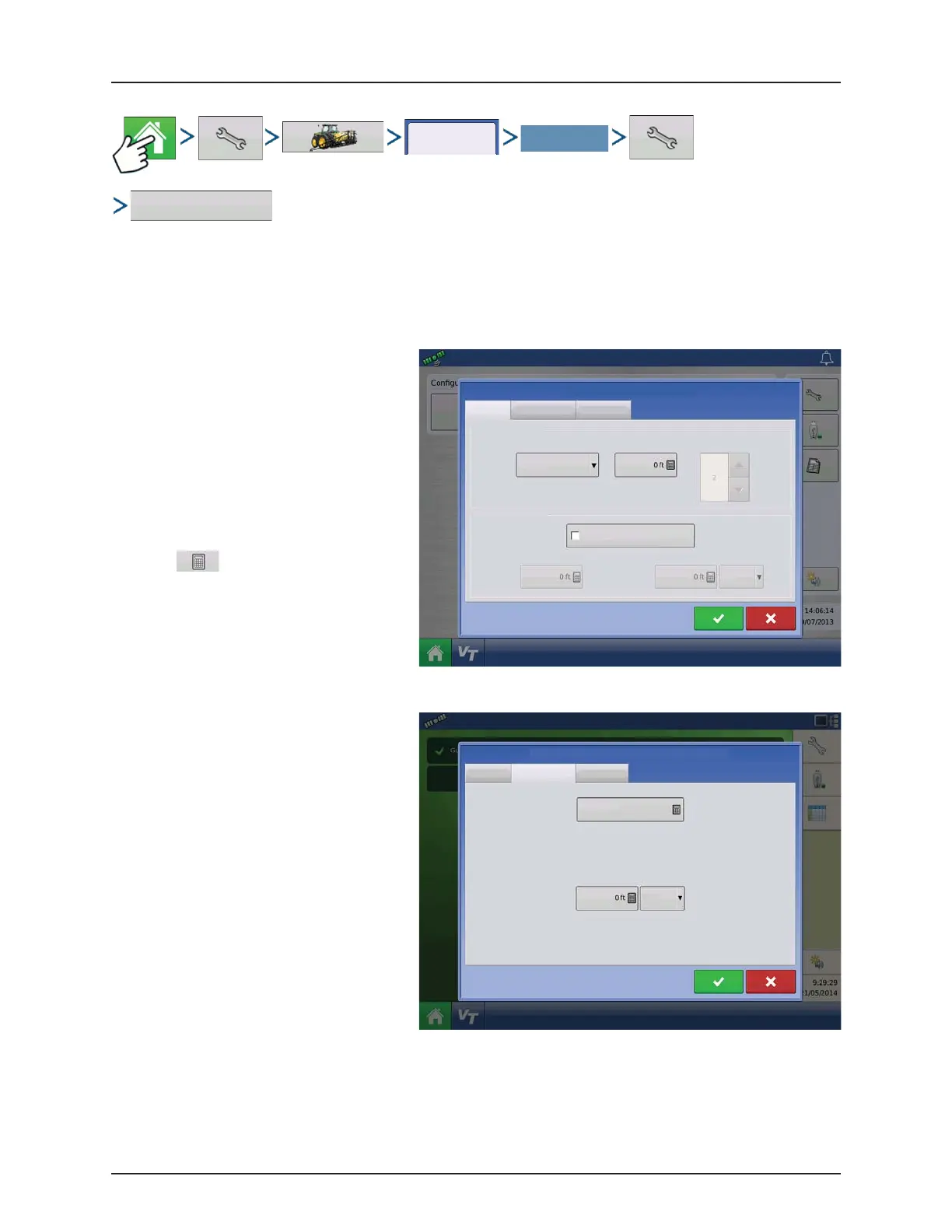

The Implement Offsets screen opens. On a typical HARDI® configuration, this screen may consist of up to three tabs:
• Implement tab.
• Liquid with Hardi tab.
• Boom Control tab.
Implement tab
Implement Modelling:
Implement Type:
• Standard
• Hardi SafeTrack
ATTENTION! For IntelliTrack sprayers, select
the “Hardi SafeTrack” option.
Hitch to Axle Distance:
Press to type in value.
Type in the measured value from Hitch of the
sprayer to the axle.
Implement Rear Hitch:
Here is no relevant settings for HARDI®
sprayers.
Liquid with Hardi tab
Forward/Backward Distance from Hitch:
• Set distance between the hitch eye and the
nozzles.
Left/Right Distance from center line:
• For asymmetric booms. As HARDI® booms
are never asymmetric, this option must be set
to 0 cm. Left or Right selection does not
matter.
Boom Control tab
Forward/Backward Distance from Hitch:
• Set distance between the hitch eye and the nozzles.
Left/Right Distance from center line:
• For asymmetric booms. As HARDI® booms are never asymmetric, this option must be set to 0 cm. Left or Right selection
does not matter.
Configuration
Select Your Specific
Configuration
Offsets
Implement Offsets: Hardi Commander
Implement Liquid with Hardi
Implement Modeling
Implement Provides a Rear Hitch
Hitch to Axle
Distance
Lateral Offset from Centerline
Left
Implement Type
Standard
Front Hitch to Rear Hitch
Implement Rear Hitch
Heading
Aggressiveness
Boom Control
Implement Offsets: Hardi Commander
Implement Liquid with Hardi Boom Control
Forward/Backward Distance from Hitch
Left/Right Distance from Centerline
Left
25 ft Behind
To Next Page
