16 HARDI
®
N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL
3.3 Power Supply (electric controls only)
A 12 Volt DC power supply is required to operate the electrical boom
distribution valve solenoids (Fig. 6). Connect the power supply wiring
harness as follows:
Red wire to positive (+) and Black wire to negative (-).
IMPORTANT: Do not connect to the starter motor or generator/alterna-
tor. Warranty is void if this is done.
The power supply wiring harness is equipped with a 7.5 Amp inline
fuse to protect the control box.

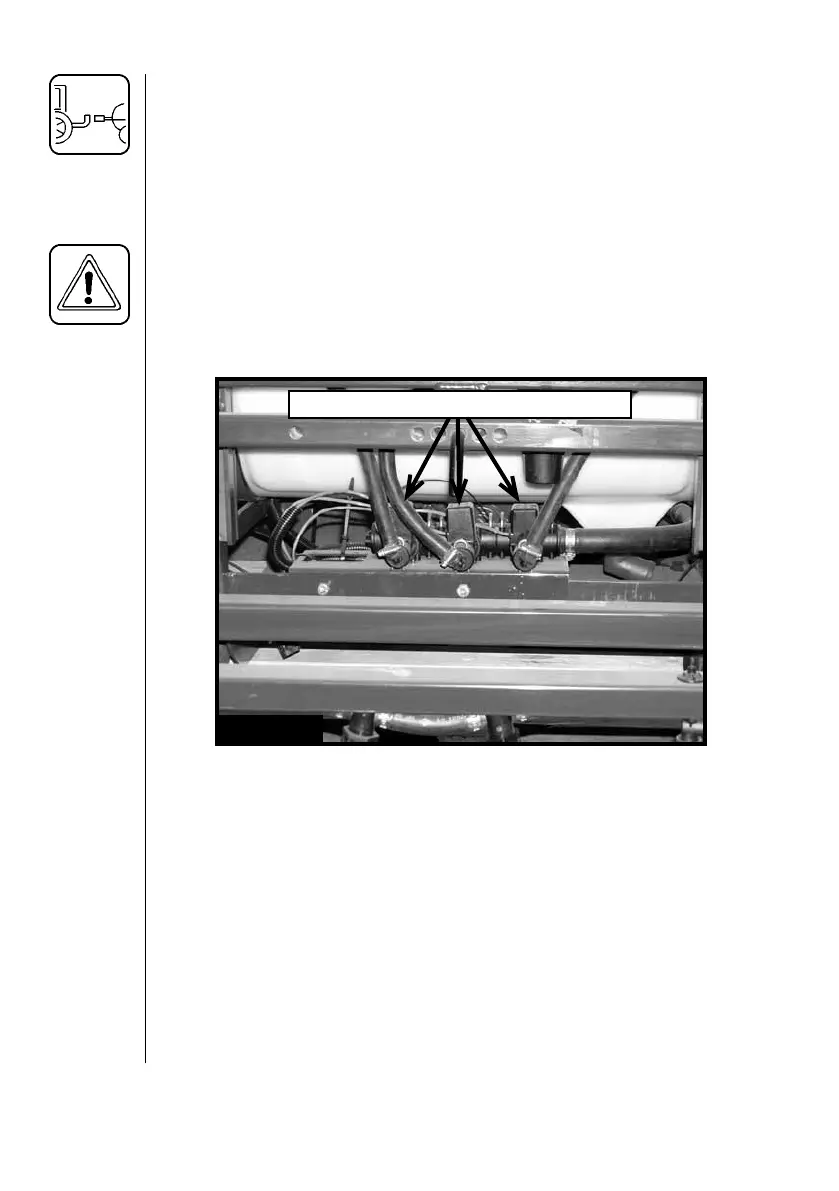

Fig. 6
DISTRIBUTION VALVE SOLENOIDS
