N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL
G-1000 Red G-1200 White G-1600 Blue
PSI GPM
20 3.224 3.762 5.015
30 3.949 4.607 6.143
40 4.560 5.320 7.093
50 5.098 5.948 7.930
70 6.032 7.037 9.383
Part # 371556 371557 371558

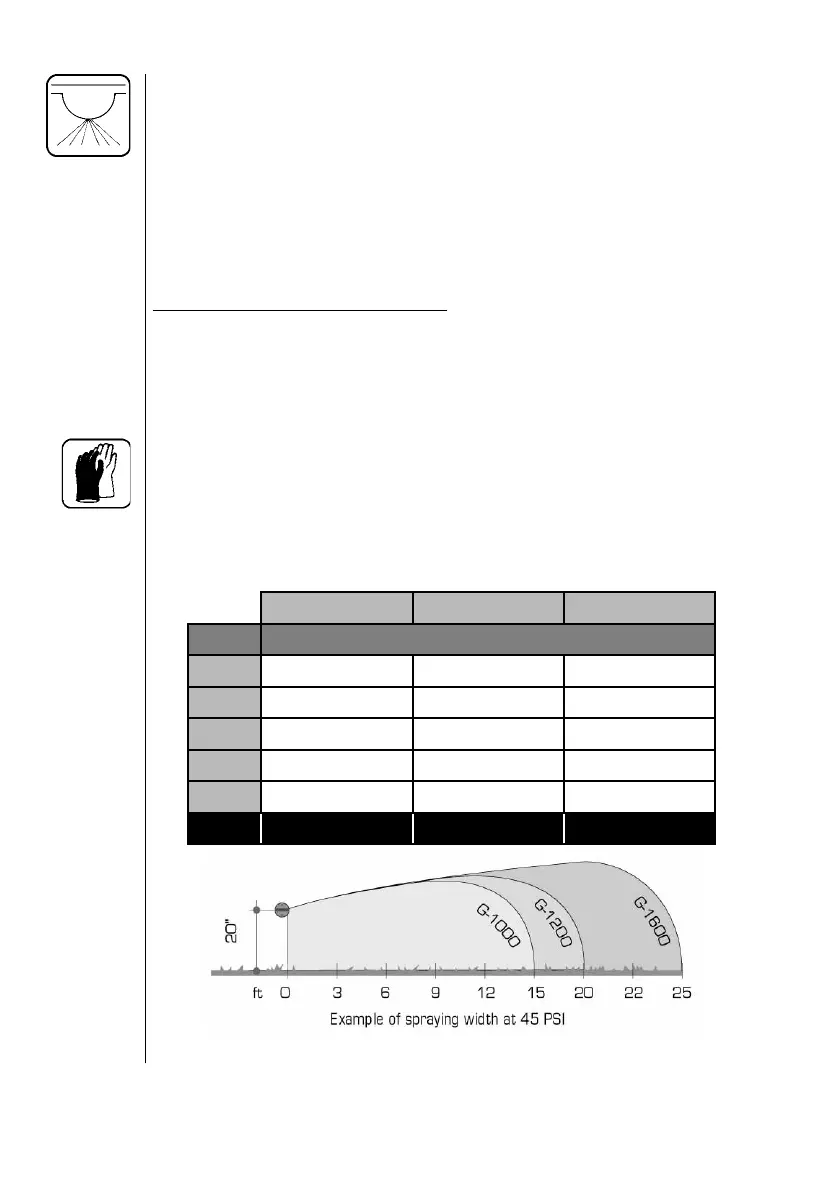

Fig. 25
5.2 Giant End Nozzle Selection (Pasture Sprayer only)
The two opposite mounted HARDI
®
Giant End Nozzles are available in
three different sizes and provide a maximum spray width of 30', 40' or
50' (10m, 12m or 16m) under optimal spraying conditions at the recom-
mended 20" (50 cm) nozzle spray heights (Fig. 25).
For sprayers equipped with "Boom Buster" nozzles (Evergreen Prod-
ucts, Inc.), consult the supplied nozzle application chart.
Giant End Nozzle characteristics:
• Off center spray nozzle
• Pressure range: 20 to 70 PSI
• Spray width up to 25 ft. (per nozzle)
• SYNTAL precision molded thermoplastic
IMPORTANT: Always consult your chemical supplier for rec om -
mend ed chemical rate and water application rate. Always wear
protective gloves when handling nozzles.
The following tables show which HARDI
®
Giant End Nozzles are suit-
able for different applications. It is important to use the correct nozzle.
