Hardi NAVIGATOR 3000 Supplement To Instruction Book

8 - Technical specifications
8.7
EVC
The EVC operating unit fulfills the EC noise reduction standards.

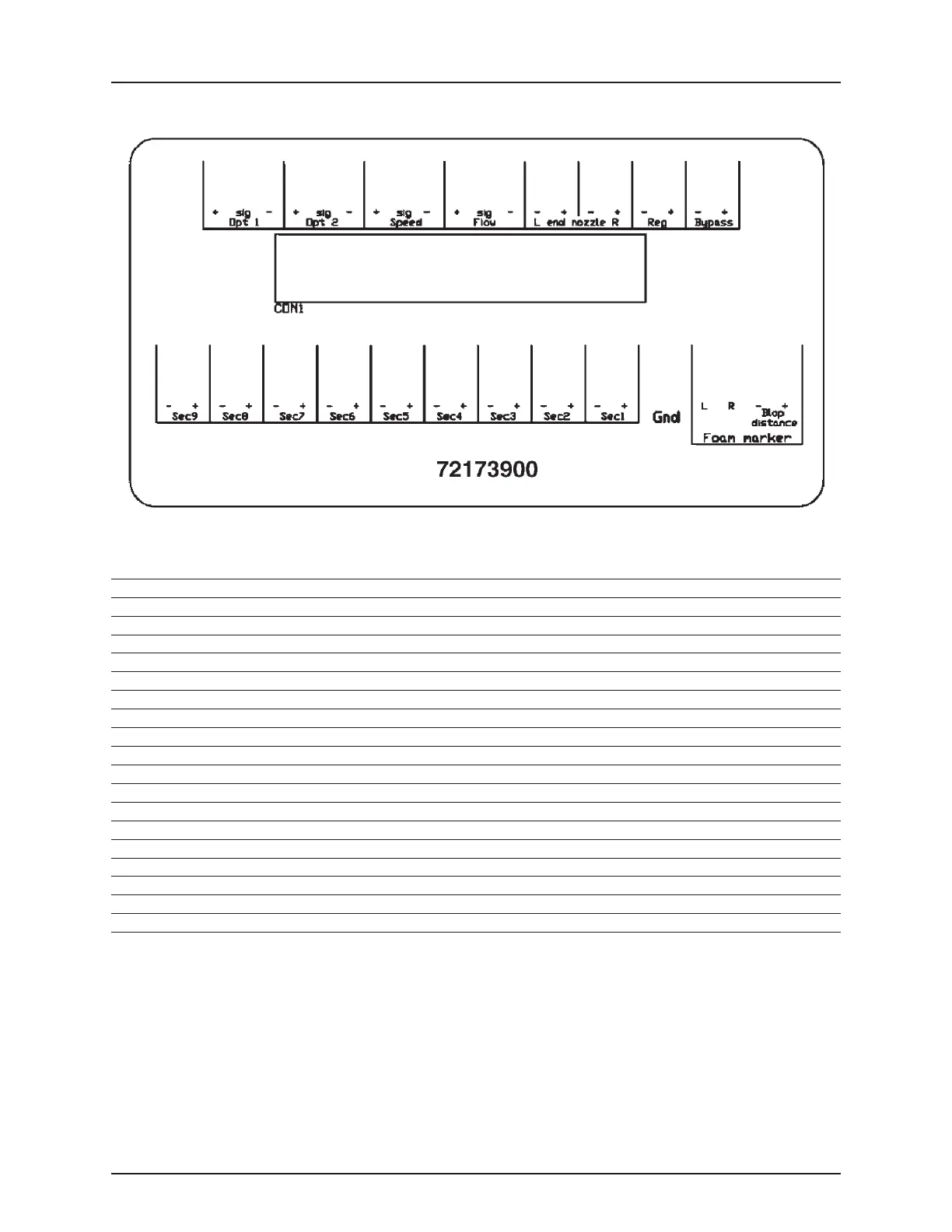

When connecting an optional function, be aware that maximum current for every connector is 2 Amp. Total current for the
whole conne
ctor box may not exceed 10 Amp.
HC 2500 Function + Sig. -
Opt 1 Pressure sensor Brn Blu -
Opt 2 RPM sensor Brn Blu Blk
Speed Brn Blu Blk
Flow Brn Blu Blk
L end nozzle Pendulum lock at HAY/LPY Brn Blu
R endnozzle Pendulum lock at HAY/LPY Brn Blu
Reg (Yellow) Brn Blu
Bypass EC
on/off Brn Blu
Sec 9 xx
Sec 8User defined A&B x x
Sec 7 Brn Whi
Sec 6 Yel Gre
Sec 5 Brn Blu
Sec 4 Brn Blu
Sec 3 Brn Blu
Sec 2 Brn Blu
Sec 1 Brn Blu
GndL R - +
Foam m arker No. 4 Not usedBlkBrn RedOr
