Hardi NAVIGATOR 3000 Supplement To Instruction Book

8 - Technical specifications
8.8

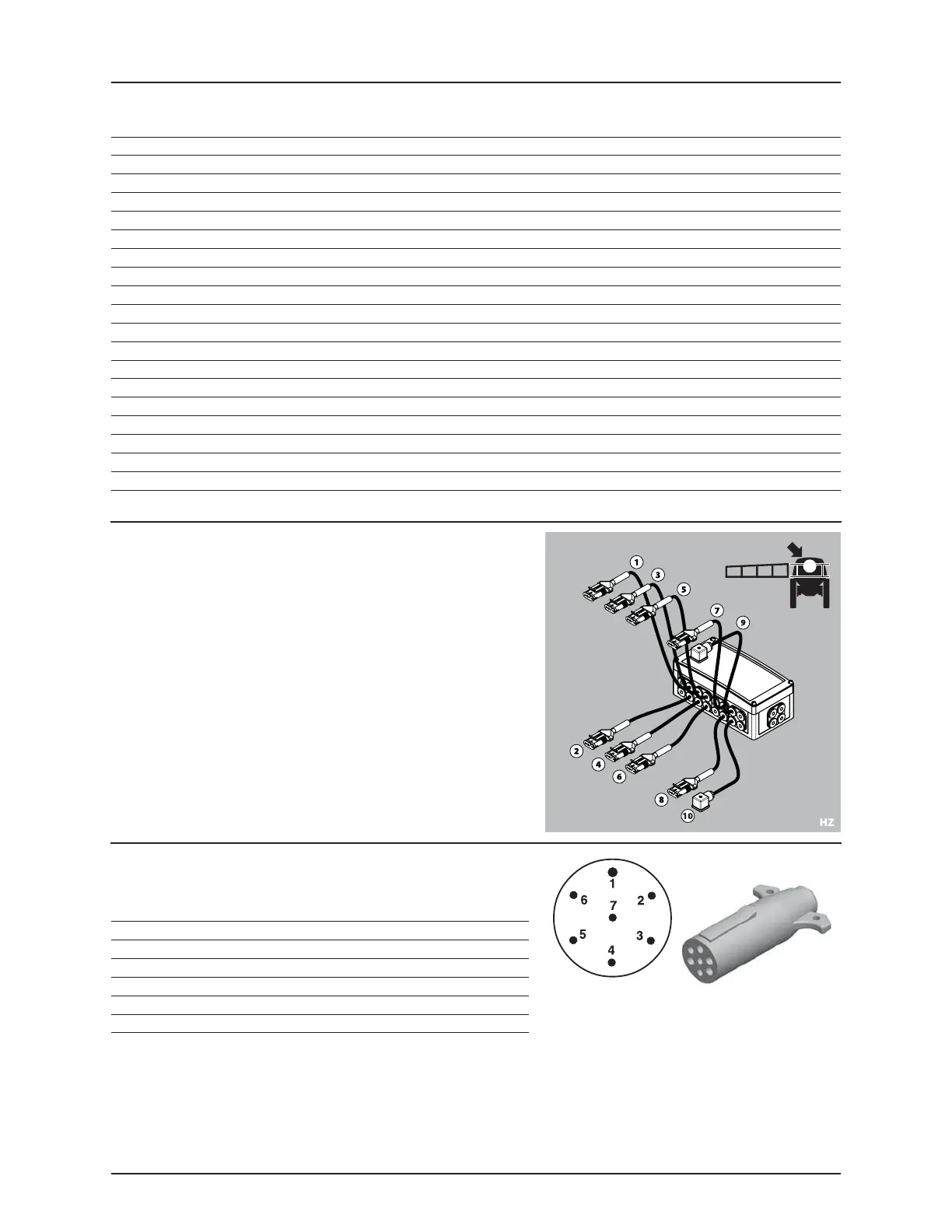

Plug positions for HZ hydraulics
1. Fold left
2. Fold left
3. Tilt left down
4. Tilt left up
5. Tilt right down
6. Tilt right up
7. Fold right
8. Fold right
9. (B) flow reverse
10. (A) flow forwa
rd
Road traffic lights
The wiring is in accordance with ANSI/ASAE S279.11.
HC 5500 Function + Sig. -
Opt 1 Pressure sensor Brn Blu -
Opt 2 RPM sensor or anemometer Brn Blu Blk
Speed Brn Blu Blk
Flow Brn Blu Blk
L end nozzle Pendulum lock at HAY/LPY Brn Blu
R endnozzle Pendulum lock at HAY/LPY Brn Blu
Reg (Yellow) Brn Blu
By
pass EC on/off Brn Blu
Sec 9User defined A&B 2 xx
Sec 8User defined A&B 1 xx
Sec 7 Twin speedBrn Whi
Sec 6 Twin angle Yel Gre
Sec 5 Brn Blu
Sec 4 Brn Blu
Sec 3 Brn Blu
Sec 2 Brn Blu
Sec 1 Brn Blu
GndL R - +
Foam marker
No. 4 Not used 265 13
Position Wire color
1. GroundWhite
2. Work lamps Black
3. LH flashing & turn indicator Yellow
4. Free Red
5. RH flashing & turn indicator Green
6. Free Brown
7. Free Blue
