2005 PDI: Softail Models 4-3
7. Check operation of all remaining lamps:
● headlamp–low and high beams
● headlamp high beam indicator lamp
● left directional (turn signal) lamps–front and rear
● Ieft directional (turn signal) indicator lamp
● right directional (turn signal) lamps–front and rear
● right directional (turn signal) indicator lamp
● Ieft front running lamp
● right front running lamp
● tail lamp–running lamp and brake lamp filaments
8. After engine has reached normal operating temperature,
turn engine off.
9. Check engine oil level per instructions in 4.3 LUBRICA-
TION SYSTEM. This time, fill oil tank to upper mark on
filler cap/dipstick.
IGNITION TIMING
Ignition timing is not adjustable on The Twin Cam 88B™
engine.
IDLE SPEED: CARBURETED ONLY
NOTE
The idle speed on fuel injected models can only be set using
a diagnostic tool such as DIGITAL TECHNICIAN (Part No.
HD-44750).
See Figure 4-2. Set engine slow idle speed of 950 RPM with
engine running at normal operating temperature and with
enrichener control knob pushed in fully. Turn carburetor idle
speed adjusting screw (5) clockwise to increase speed, or
counterclockwise to decrease speed.
NOTE
The C.V. carburetor has an enrichener circuit that will cause
the engine to idle at approximately 2000 RPM with the engine
at normal operating temperature and the enrichener knob
pulled fully out. The increase in idle speed is intended to alert
the rider that the engine is warmed up to normal operating
temperature and that the enrichener knob should be pushed
in all the way. Continuing to use the enrichener circuit when
the engine is at normal operating temperature will cause
fouled plugs.
Be sure the engine is warmed up to normal operating temper-
ature and the enrichener knob is pushed all the way in before
adjusting engine idle speed. Be aware that, because there
are variations in individual components, it is possible for a
properly warmed-up engine to idle at 2000 RPM with the
enrichener knob pulled out partially.

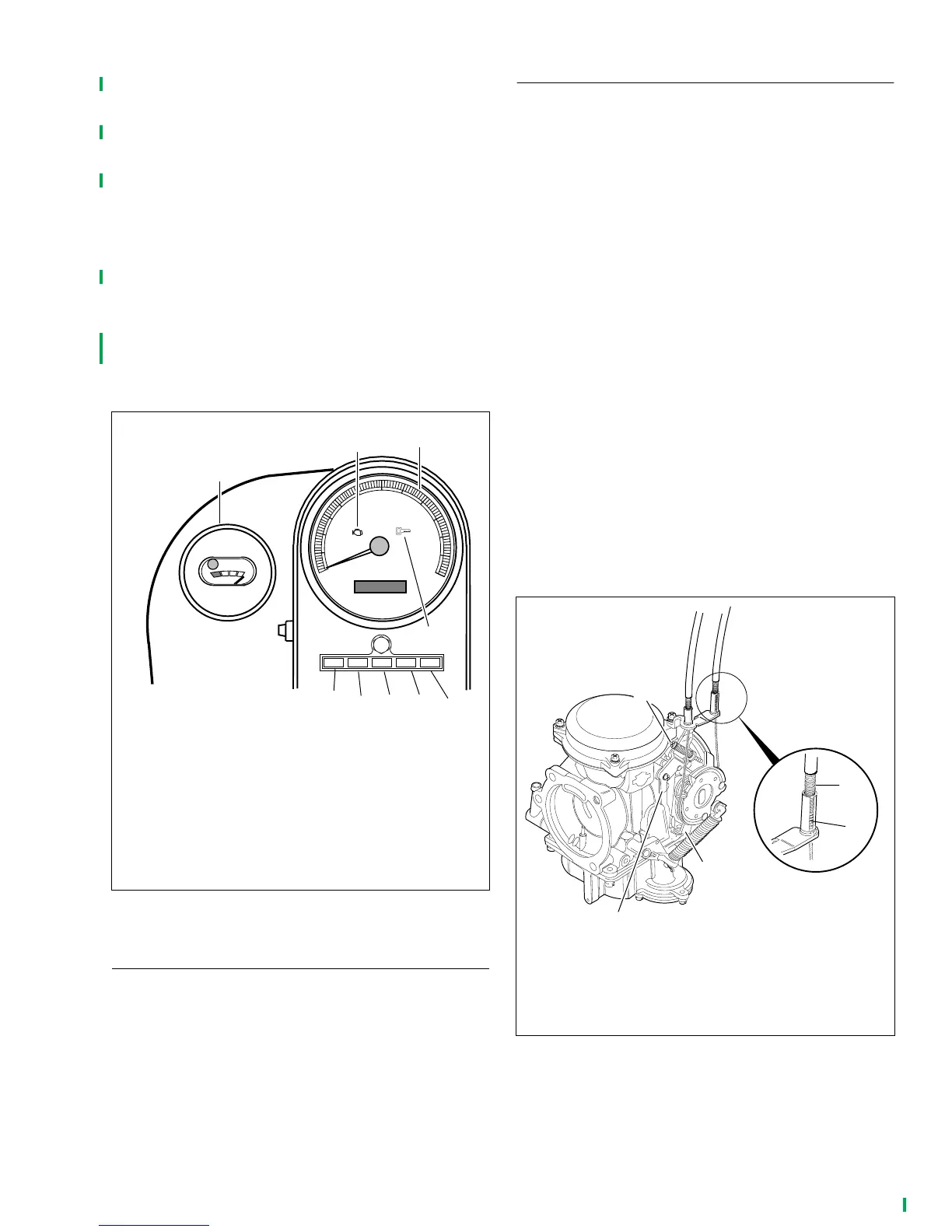

Figure 4-1. Indicator Lamps
0
10
30
20
50
40
110
120
60
70
80
90
100
MPH
H
A
R
L
E
Y
-
D
A
V
I
D
S
O
N
EF
C
E
R
T
I
F
I
E
D
pd0189
1. Speedometer
2. Left turn signal
3. High beam
4. Neutral
5. Oil pressure
6. Right turn signal
7. Check engine lamp
8. Fuel gauge
9. Security lamp
8
2
6
5
4
3
7
1
9
Figure 4-2. Carburetor Adjustments
f1381a2x
2
3
5
1
1. Carburetor stop plate
2. Cable housing
3. Spring
4. Throttle cam stop
5. Idle speed adjusting screw
4
