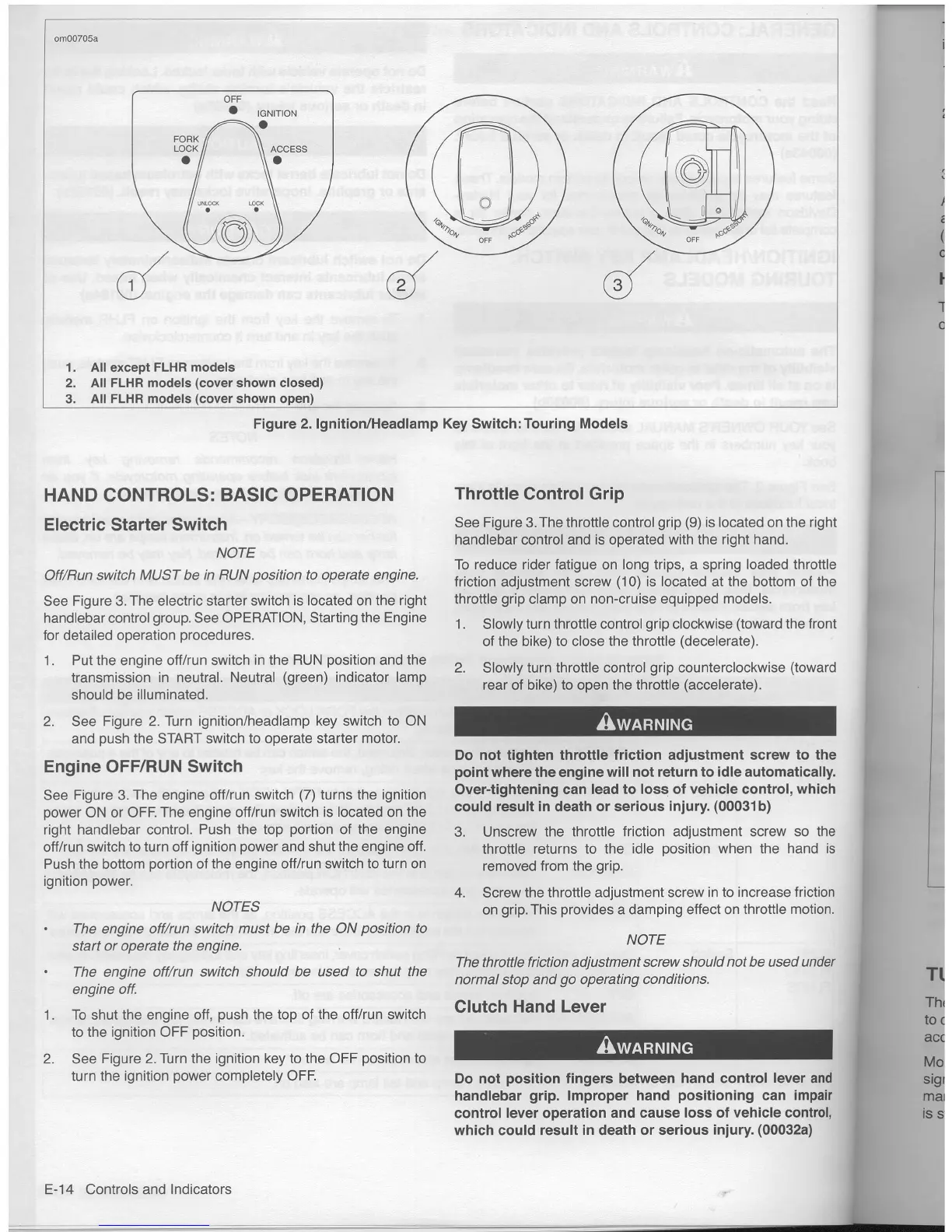

Figure 2. lgnition/Headlamp
Key
Switch:Touring
Models
HAND
CONTROLS:
BASIC
OPERATION
Electric Starter Switch
NOTE
Off/Run
switch
MUST
be
in RUN
position
to operate engine.
See
Figure 3. The electric starter switch
is located on the right
handlebar controlgroup. See
OPERATION, Starting the
Engine
for detailed operation
procedures.
1. Put the engine otflrun switch
in the RUN
position
and the
transmission in neutral.
Neutral
(green)
indicator lamp
should
be illuminated.
2.
See
Figure 2. Turn ignition/headlamp
key
switch
to ON
and
push
the
START
switch to operate starter
motor.
Engine OFF/RUN
Switch
See
Figure 3. The engine offlrun
switch
(7)
turns the ignition
power
ON or OFF. The engine off/run switch
is located on the
right handlebar control.
Push the top
portion
of
the engine
off/run switch
to turn off ignition
power
and shut
the engine off.
Push the
bottom
portion
of
the
engine off/run switch
to turn on
ignition
power.
NOTES
.
The engine off/run
switch must be in the ON
position
to
start or operate
the engine
.
The engine off/run switch
should be used to shut the
engine
off.
1. To
shut
the engine off,
push
the top of the off/run switch
to
the ignition OFF
position.
2. See
Figure 2. Turn the ignition key to the OFF
position
to
turn the
ignition
power
completely OFF.
Throttle
Control
Grip
See Figure 3.The throttle control
grip (9)
is located
on
the right
handlebar control and
is
operated
with the right hand.
To reduce rider
fatigue
on
long trips,
a spring
loaded throttle
friction
adjustment screw
(10)
is located at the bottom of the
throttle
grip
clamp on
non-cruise
equipped
models.
1.
Slowly
turn throttle
control
grip
clockwise
(toward
the front
of the bike)
to
close
the throttle
(decelerate).
2. Slowly turn throttle control
grip
counterclockwise
(toward
rear of
bike)
to open the throttle
(accelerate).
Do not tighten throttle
friction
adjustment
screw to the
point
where the engine
will not return to
idle
automatically.
Over-tightening can
lead to loss of
vehicle
control,
which
could result in death or serious
iniury.
(00031b)
3. Unscrew the
throttle friction adjustment screw so the
throttle returns
to the idle
position
when the hand is
removed
from the
grip.
4. Screw the throttle adjustment
screw in to increase
friction
on
grip.
This
provides
a damping effect on throttle
motion.
NOTE
The throftle friction adjustment screw
should not be used under
normal
stop
and
go
operating conditions.
Clutch
Hand Lever
Do not
position
fingers between
hand control lever and
handlebar
grip.
lmproper
hand
positioning
can
impair
control lever operation and cause
loss of vehicle control,
which could result in death or serious
injury.
(00032a)
