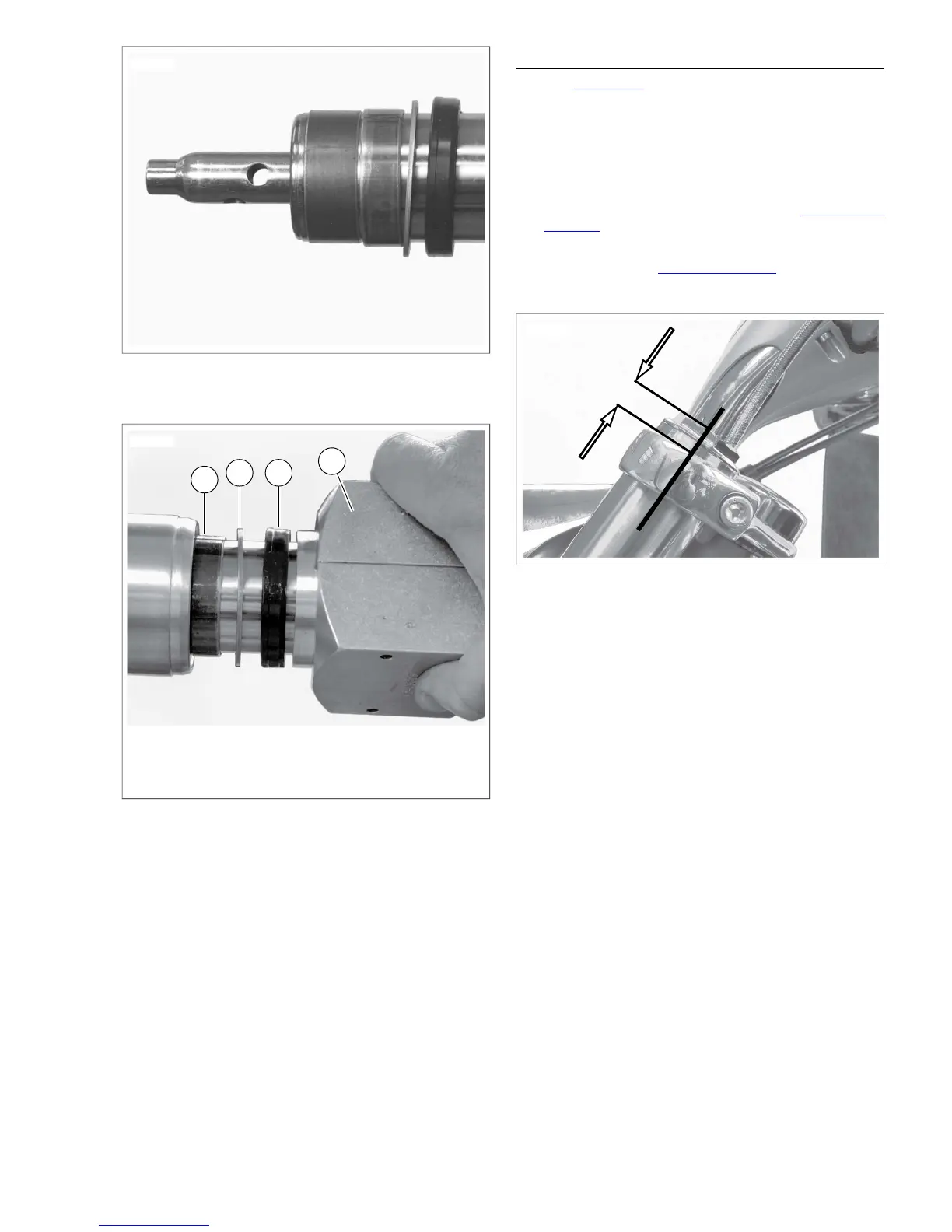

1. Bushing guide
2. Spacer
3. Oil seal (chamfered lips must face oil)
4. Fork seal driver
Figure 2-87. Assembled Fork Seal Driver
INSTALLATION
1. See Figure 2-88. Insert fork tube and slider assemblies
through lower triple clamp and upper triple clamp. Fork
tubes should protrude above upper triple clamp 0.450-
0.500 in. (11.4-12.7 mm). Measurement must be taken at
midpoint of fork tube between top surface of triple clamp
to top of fork cap. Tighten pinch bolts to 30-35 ft-lbs (41-
48 Nm).
2. Install front fender and bracket. See 2.27 FRONT
FENDER.
3. Install front brake caliper hydraulic lines and install front
brake calipers. See 2.3 FRONT WHEEL. Install front wheel
and align the wheel to the forks.
