2.23REAR FORK
REMOVAL
1. Remove exhaust system. See 4.16 EXHAUST SYSTEM.
2. Remove rear brake caliper. See 2.15 REAR BRAKE
CALIPER.
3. Remove rear wheel. See 2.4 REAR WHEEL.
NOTE
Do not remove sprocket or brake disc unless they are damaged
and must be replaced.
4. Remove lower shock absorber fasteners and swing shock
absorbers away from swingarm. See 2.22 REAR SHOCK
ABSORBERS.
5. Remove the belt and debris guards. See 2.19 BELT
GUARD and 2.20 DEBRIS DEFLECTOR.
6. Remove rear brake line clamp from rear fork.
7. See Figure 2-98. Remove plug (2).
8. Remove nut (3).
9. Remove pivot shaft with attached nut (4). Support rear
fork (1) and pull assembly from frame.
4
2
1
9
12
11
10
7
6
8
5
3
sm02277
7.1. Left bossRear fork
2. 8.Plug Pivot bearing
9.3. Right spacerNut
4. 10.Pivot shaft Right boss
11.5. Dust shieldRetaining ring
6. 12.Left spacer Bushing

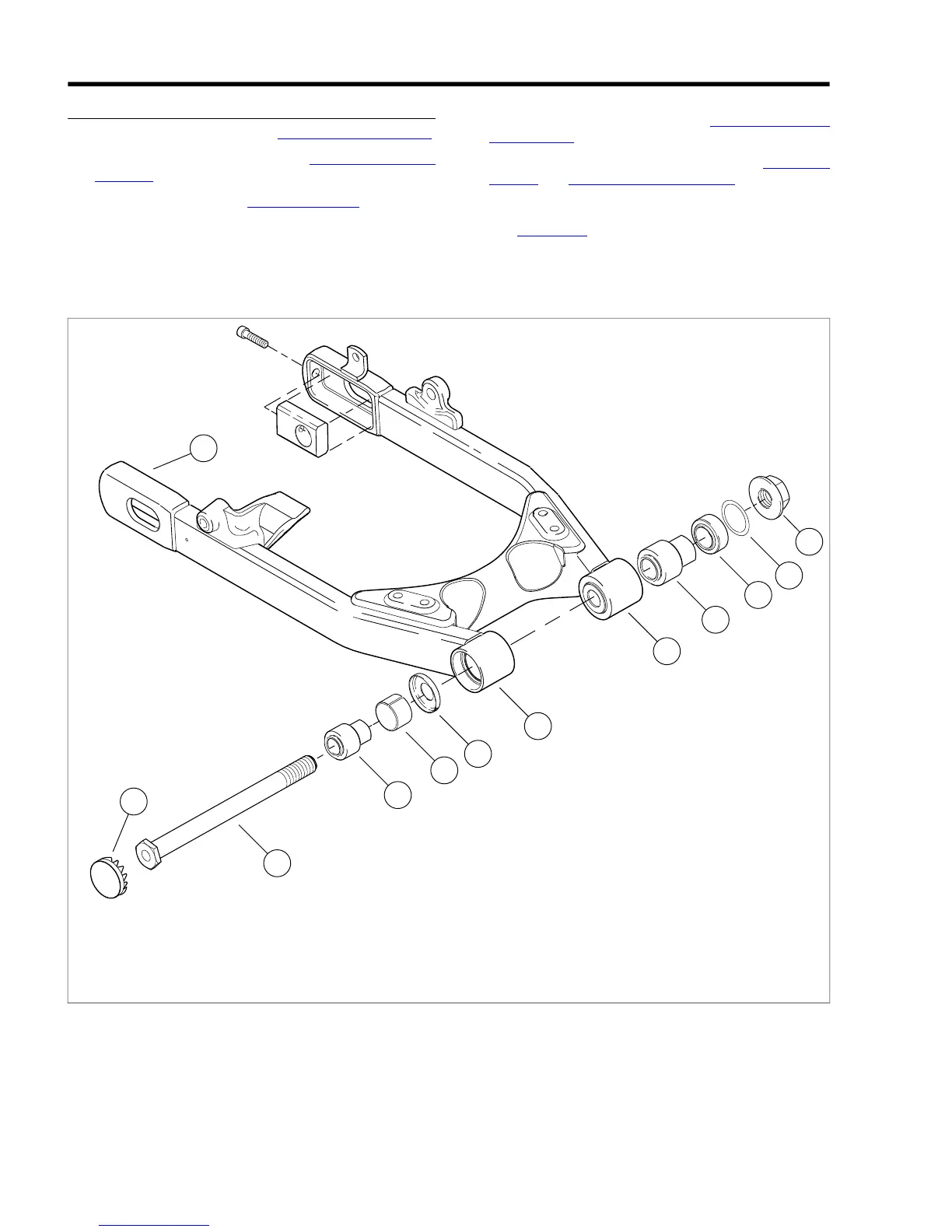

Figure 2-98. Rear Fork
