3. Connect negative battery cable.
After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)
4. Install seat.
FXDWG/FXDF
Removal
1. Remove rear turn signal lamps. See 8.11 TURN SIGNALS
AND RUNNING LIGHTS.

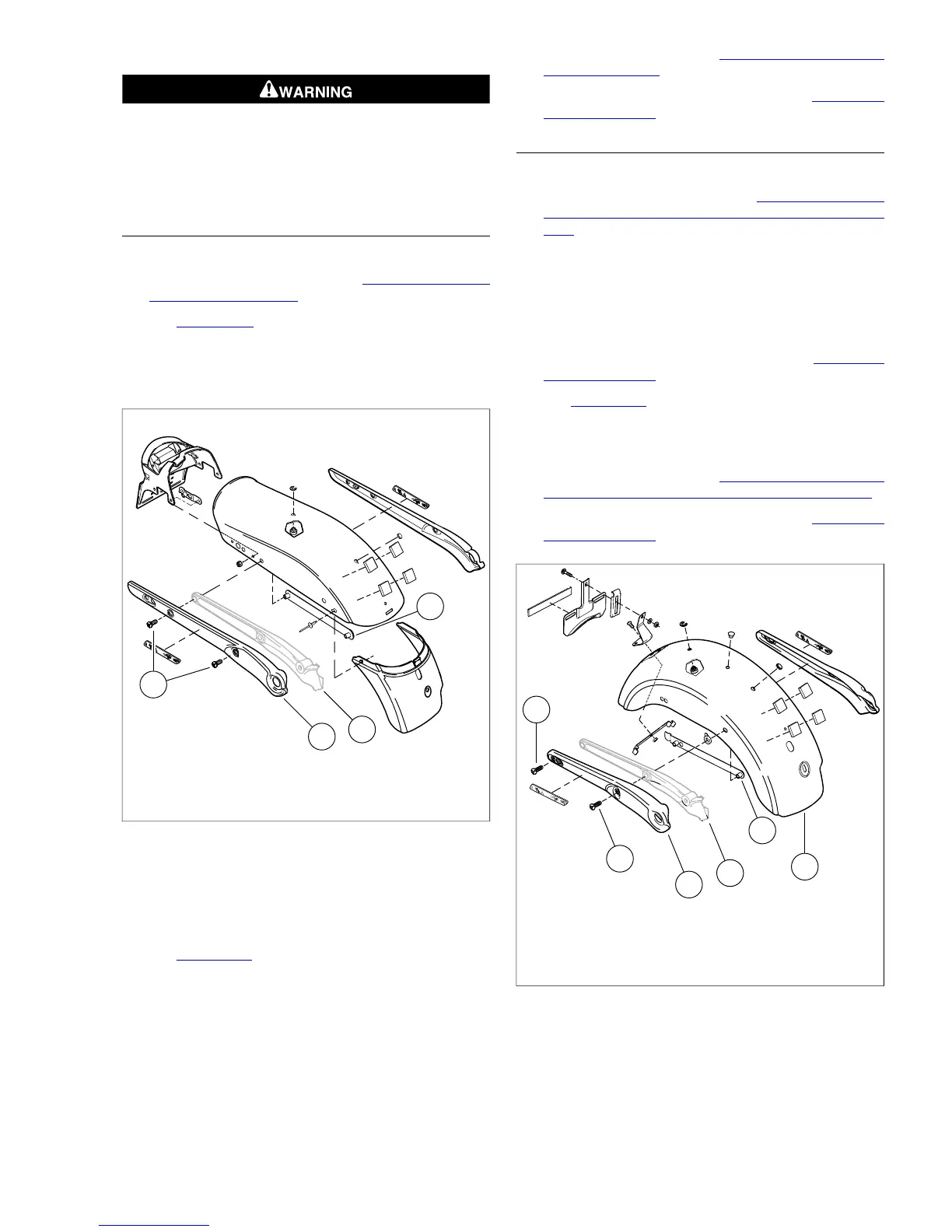

2. See Figure 2-109. Remove screws (1) from holes in cover
(2), fender support (3) and mounting bracket (4).
3. Remove remaining screws (1) from left side of fender and
carefully remove fender.
1
3
4
2
sm02284
1. Screw (4)
2. Cover, right
3. Fender support
4. Mounting bracket (inside fender)
Figure 2-109. Rear Fender (FXDWG/FXDF)
Installation
1. Before installing fender, install tail lamp/turn signal harness
and conduit to underside of fender.
2. See Figure 2-109. Apply LOCTITE THREADLOCKER 243
(blue) to the threads of screws (1). Place fender and
covers (2) into position. Tighten screws (1) to 12-18 ft-
lbs (16.3-24.4 Nm).
3. Install rear turn signals. See 8.11 TURN SIGNALS AND
RUNNING LIGHTS.
4. Finish with installation instructions under 2.28 REAR
FENDER, General.
FXD, FXDC, FXDB AND FXDL MODELS
Removal
1. Remove rear turn signal lamps. See 8.11 TURN SIGNALS
AND RUNNING LIGHTS, Rear Lamp Housing Replace-
ment.
2. Remove screws (1) that hold fender in place and carefully
remove fender and covers (3).
Installation
1. Before installing fender, install tail lamp/turn signal harness
and conduit to underside of fender. See Tail Lamp/Turn
Signal Harness Routing instructions under 2.28 REAR
FENDER, General for procedure.
2. See Figure 2-110. Apply LOCTITE THREADLOCKER 243
(blue) to the threads of screws (1). Place fender and
covers (3) into position. Tighten screws (1) to 12-18 ft-
lbs (16.3-24.4 Nm).
3. Install rear turn signals. See 8.11 TURN SIGNALS AND
RUNNING LIGHTS, Rear Lamp Housing Replacement.
4. Finish with installation instructions under 2.28 REAR
FENDER, General.
1
2
4
3
1
5
sm02285
1. Screw (4)
2. Fender
3. Covers (2)
4. Fender support
5. Mounting bracket (inside fender)
Figure 2-110. Rear Fender (FXD, FXDC, FXDB, and FXDL)
2008 Dyna Service: Chassis 2-77
