1. Wire harness retainer
2. Vent line
3. Retainer cavity

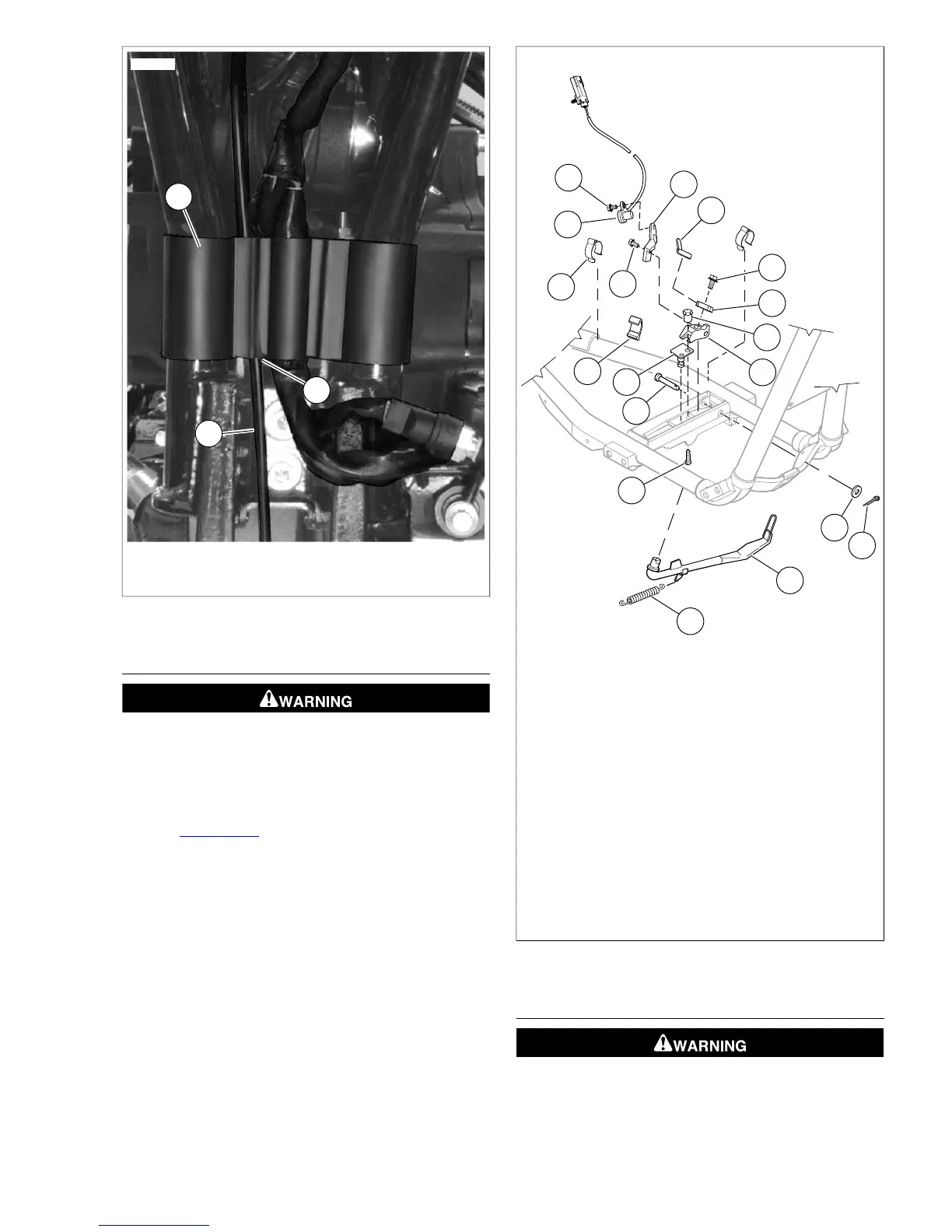

Figure 2-113. Harness Retainer
REMOVAL
Block vehicle under frame such that vehicle will not fall
when jiffy stand is removed. Failure to properly block
vehicle could result in death or serious injury. (00462b)
1. Block motorcycle underneath frame so both wheels are
raised off the ground.
2. See Figure 2-114. Remove cotter pin and washer (10)
from pin (2). Discard cotter pin.
3. Detach spring (8) from jiffy stand and anchor plate (9).
4. Pull pin (2) from between frame tubes. Jiffy stand and pivot
block components will drop as an assembly.
1. Sensor bracket screw (HDI)
2. Harness retainer (2) (HDI)
3. Sensor (HDI)
4. Sensor screw (HDI)
5. Sensor bracket (HDI)
6. Catch (replaces item 8 on HDI)
7. Bolt
8. Catch
9. Threaded spacer
10. Pivot block
11. Washer
12. Pretzel pin
13. Jiffy stand leg
14. Spring
15. Screw
16. Pin (secures pivot block)
17. Anchor plate
18. Bumper
Figure 2-114. Jiffy Stand
INSTALLATION
If leg stop is incorrectly installed, excessive wear can allow
vehicle to fall when rested on jiffy stand, which could result
in death or serious injury. (00479b)
