Figure 3-24. Breather Baffle Hole O-Ring
CYLINDER HEAD
TOOL NAMEPART NUMBER
CYLINDER TORQUE PLATESHD-42324-A

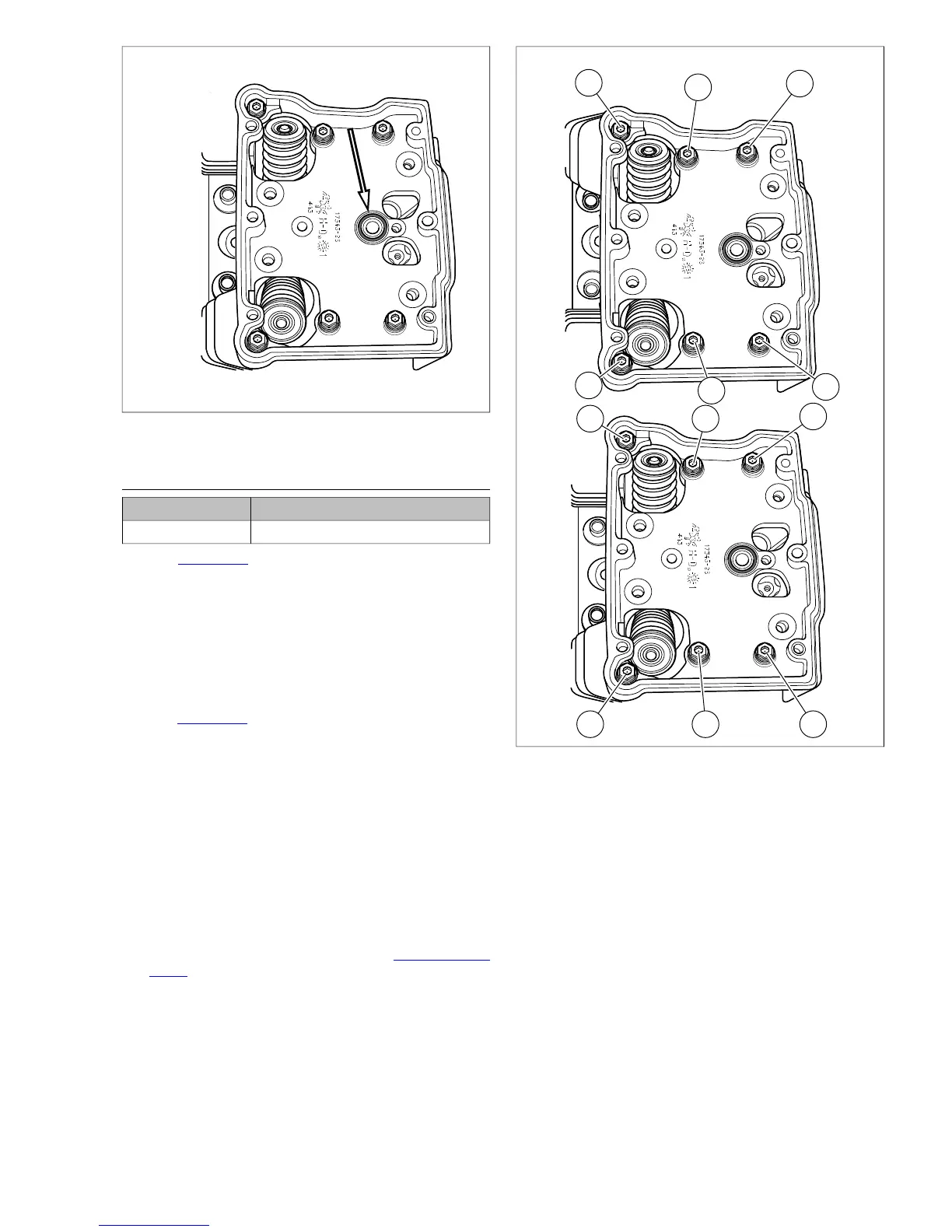

1. See Figure 3-25. Following the sequence shown, altern-
ately loosen the six rocker housing bolts. Remove rocker
housing bolts and their captive washers.
2. Remove rocker housing and gasket. Discard gasket.
NOTE
To prevent distortion of the cylinder head, cylinder and cylinder
studs, gradually loosen the cylinder head bolts in the specified
sequence.
3. See Figure 3-26. Remove cylinder head bolts.
a. Following the sequence shown, alternately loosen
each of the four cylinder head bolts just 1/4 turn.
b. Continue turning the bolts in these increments until
loose.
c. Remove the cylinder head bolts.
4. Remove cylinder head and head gasket.
NOTE
Save the cylinder head gasket (if salvageable) for use with the
CYLINDER TORQUE PLATES (Part No. HD-42324-A) when
measuring, boring or honing of the cylinder is required.
5. For inspection and repair information, see 3.22 CYLINDER
HEAD.
