Harley-Davidson Dyna 2008 - Page 281

1
3
2
sm02192
1. Fuel pump and sender connector [141]
2. Screws (12)
3. Vent hose

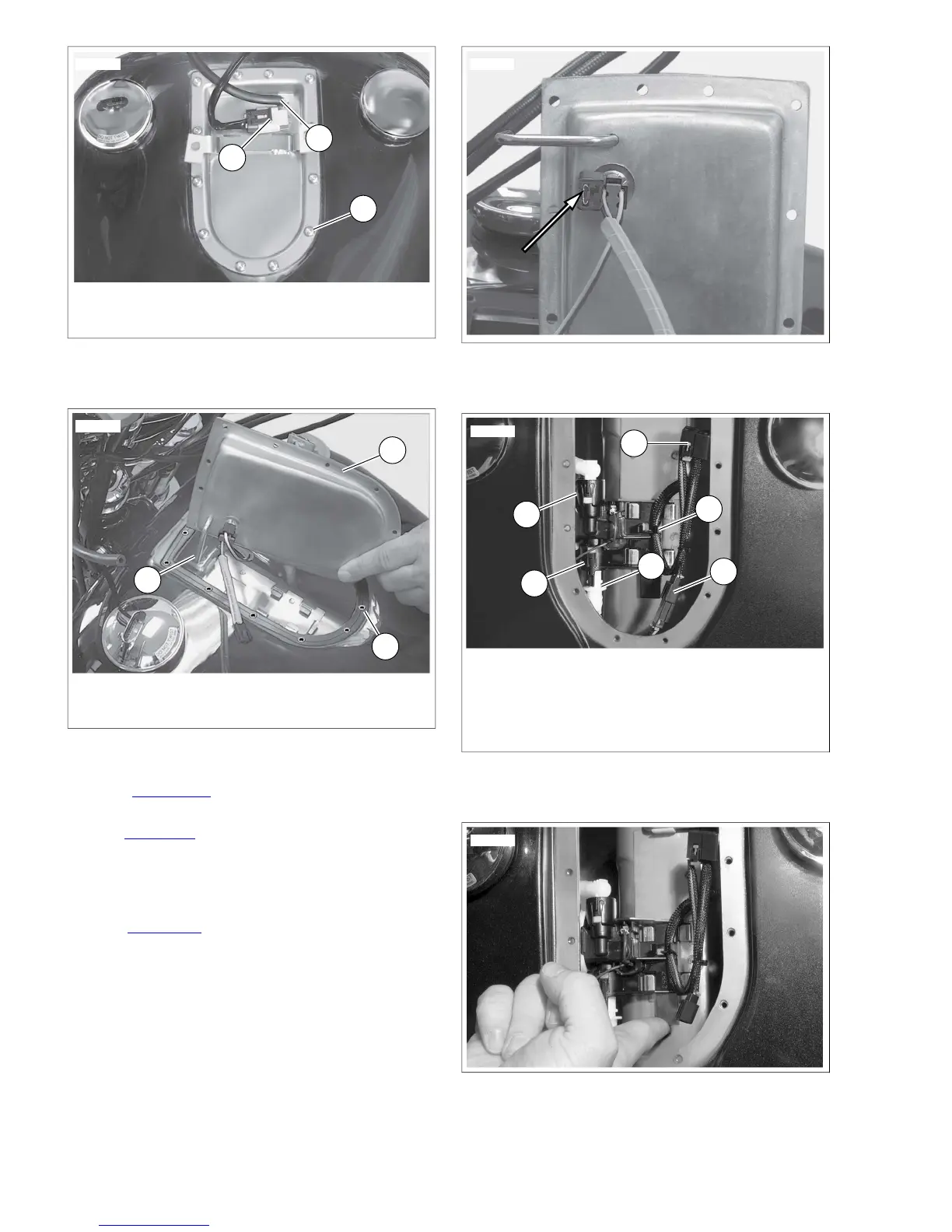

Figure 4-35.Top Plate Screws: FXDC/FXDWG/FXDF
1
2
3
sm02193
1. Vent tube
2. Gasket
3. Top plate
Figure 4-36. Fuel Line Clamp
10. See Figure 4-37. Depress tab and remove fuel
pump/sender wiring from top plate. Remove top plate.
11. See Figure 4-38. Depress tabs (1) and remove fuel line
(4) from fuel pump assembly (2).
12. Remove fuel gauge wiring harness (5) from clip (6).
13. Disconnect fuel pump connector (3).
14. See Figure 4-39. Lift fuel pump assembly tab. Push
assembly towards front of vehicle to disengage from fuel
tank.
15. Rotate fuel pump assembly clockwise and upward to
remove fuel pump assembly from fuel tank.
sm02194
Figure 4-37. Connector Tab
5
2
3
4
6
1
sm02612
1. Tabs (2)
2. Fuel pump assembly
3. Fuel pump connector
4. Fuel line
5. Fuel gauge wiring harness
6. Clip
Figure 4-38. Fuel Pump
sm02613
Figure 4-39. Fuel Pump Removal
