Mainshaft
1. See Figure 7-19. Remove retaining ring. Remove dog ring
(3), guiding hub (2), mainshaft 5th gear (4) and bearing.
NOTE
If removing countershaft only, hold countershaft 3rd and 4th
gear shift dog up while pressing countershaft out of side door
bearings.
2. Place transmission assembly in arbor press and press
mainshaft out of side door bearings.
3. Press countershaft out of side door bearings.
4. See 7.5 TRANSMISSION ASSEMBLY, Disassembly,
Replacing Side Door Bearings for side door bearing
replacement.
sm03016

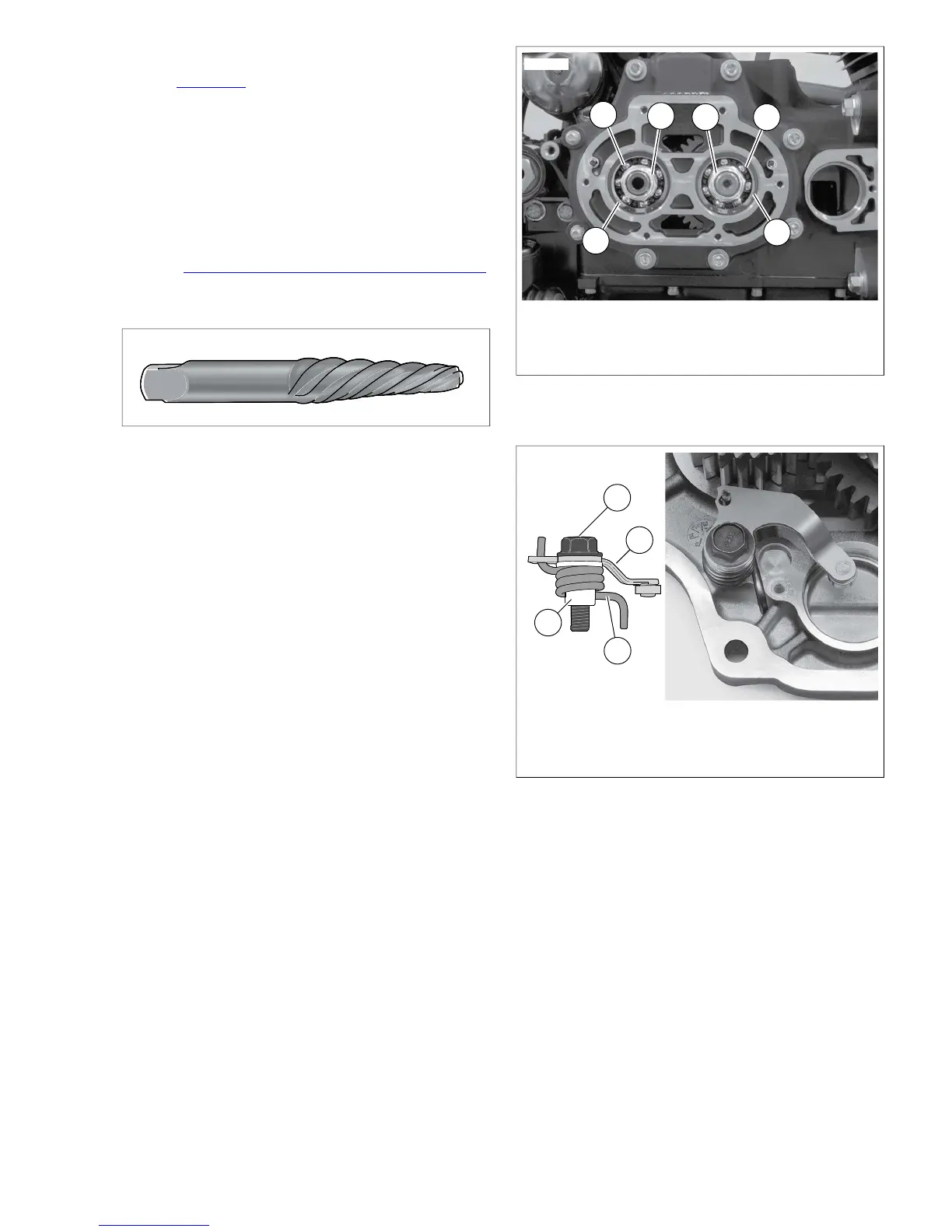

Figure 7-12. Screw Extractor
1
1
2
2
4
3
sm03017
1. Retaining ring (2)
2. Bearing (2)
3. Mainshaft locknut
4. Countershaft locknut
Figure 7-13. Side Door Locknuts
1
2
4
3
sm03018
1. Detent screw
2. Detent arm
3. Sleeve
4. Detent spring
Figure 7-14. Detent Assembly
2008 Dyna Service: Transmission 7-9
