1
3
3
2
4

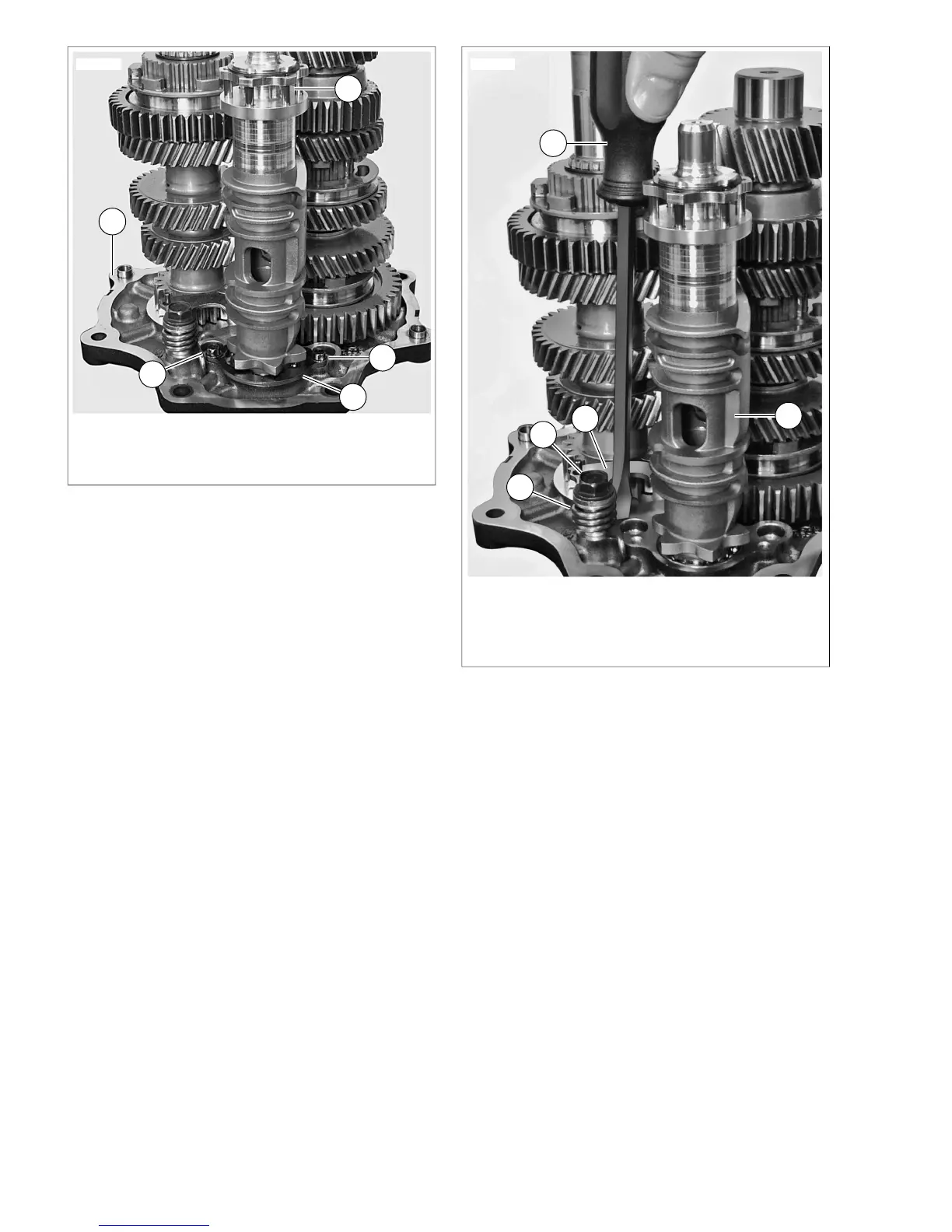

sm03600
1. Side door
2. Lock plate
3. Lock plate fastener (2)
4. Shift cam
Figure 7-17. Shift Drum
2
1
5
4
3
sm03601
1. Screwdriver
2. Detent fastener
3. Detent spring
4. Detent arm
5. Shift cam
Figure 7-18. Detent Assembly
7-12 2008 Dyna Service: Transmission
