8.5VOLTAGE REGULATOR
REMOVAL
NOTE
The voltage regulator cannot be repaired. Replace the unit if
it fails.
To prevent accidental vehicle start-up, which could cause
death or serious injury, disconnect negative (-) battery
cable before proceeding. (00048a)
1. Disconnect negative battery cable.
2. See Figure 8-8. Release latches (1) from each connector.
3. Disconnect stator connector (3) and regulator output con-
nector (2).
4. Remove voltage regulator fasteners (4).
NOTE
If removing wiring, carefully note wire routing.
1. Connector latch
2. Regulator output connector
3. Stator connector
4. Regulator fastener (2)

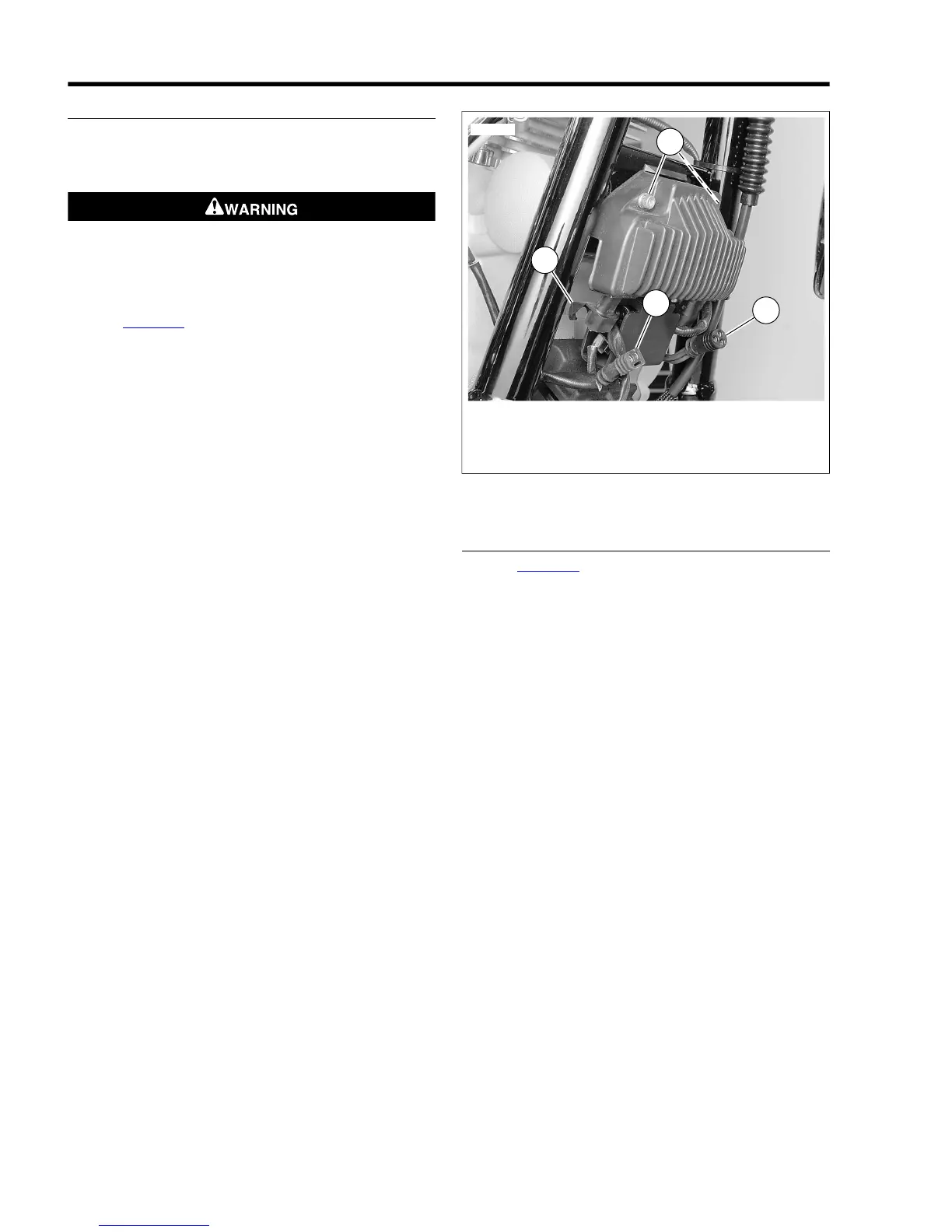

Figure 8-8.Voltage Regulator
INSTALLATION
1. See Figure 8-8. Install voltage regulator into position and
install voltage regulator fasteners (4). Tighten fasteners
to 60-80 in-lbs (6.8-9.0 Nm).
2. Connect voltage regulator output connector (2).
3. Connect stator connector (3).
4. Secure latches (1) on both connectors.
5. Connect negative battery cable.
8-6 2008 Dyna Service: Electrical
