8.6FUSES AND RELAYS
GENERAL
The fuse block is under the electrical caddy cover. The block
contains eight (nine on HDI models) 15 ampere replaceable
fuses. All models utilize a 40 ampere main fuse as well as two
spare 15 ampere fuses.The fuse block also contains the starter
relay and system relay.
REMOVAL AND INSTALLATION
Relays
To prevent accidental vehicle start-up, which could cause
death or serious injury, disconnect negative (-) battery
cable before proceeding. (00048a)
1. Disconnect negative battery cable..
2. See Figure 8-9. Firmly grasp both sides of electrical caddy
cover and pull outward to remove.
3. See Figure 8-10. Remove starter relay (1) or system relay
(2) as needed: grasp body of relay and pull straight away
from fuse block.
4. Plug in new relay.
5. Grasp caddy cover by both sides and push firmly into
electrical caddy.
6. Connect negative battery cable.
Fuses
1. Make sure ignition switch is turned OFF.
2. See Figure 8-9. Firmly grasp both sides of electrical caddy
cover and pull outward to remove.
3. Remove suspect fuse.
4. Plug in new fuse.
5. Grasp caddy cover by both sides and push firmly into
electrical caddy.
sm02029

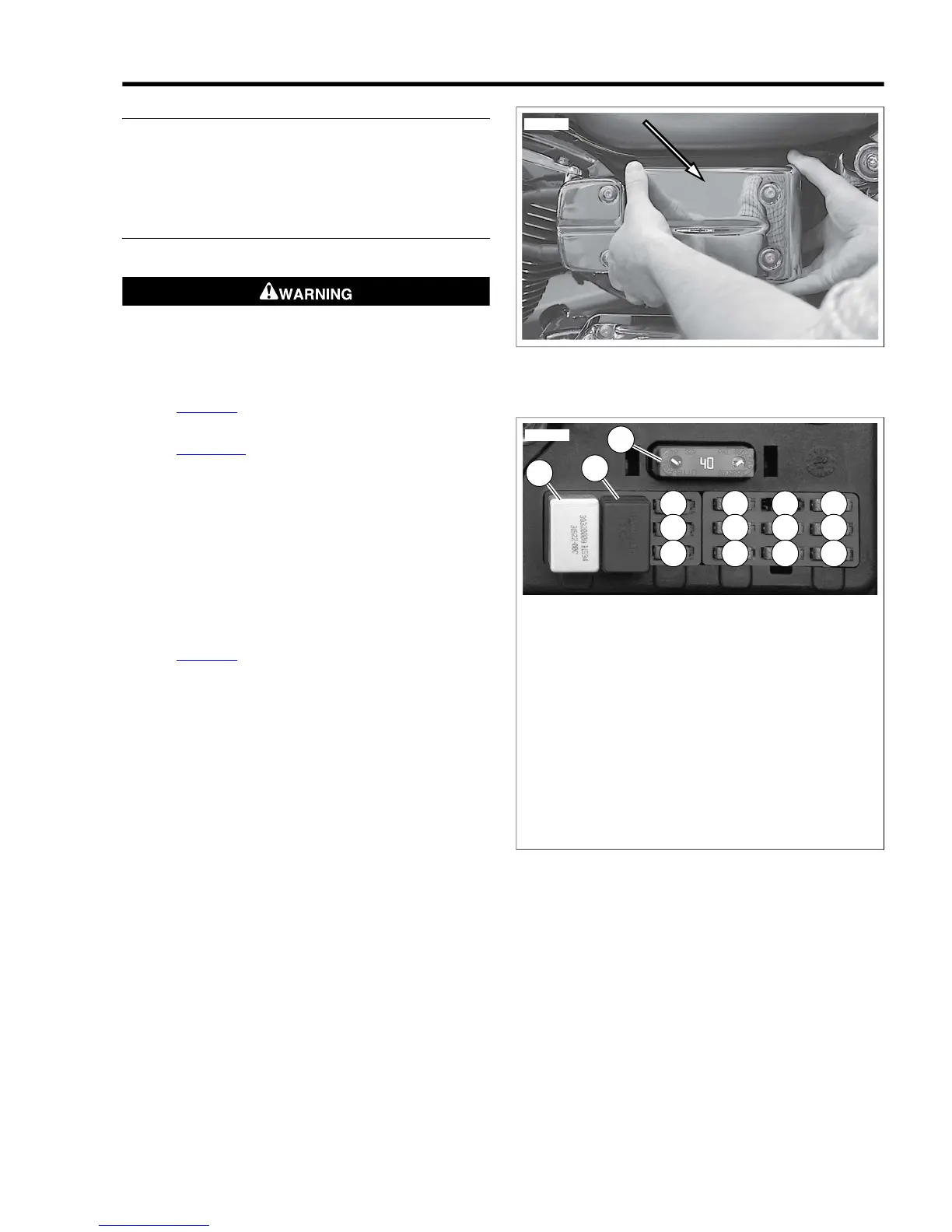

Figure 8-9. Electrical Caddy Cover
3
2
1
4 7
8
9
10
11
12
13
14
15
5
6
sm02546
1. Start relay
2. System relay
3. Main fuse (maxi-fuse) (40A)
4. ECM fuse (15A)
5. Fuel pump fuse (15A)
6. Engine control fuse (HDI models only) (15A)
7. Spare fuse (15A)
8. Spare fuse (15A)
9. Customer accessory fuse (15A)
10. P and A ignition fuse (15A)
11. Battery fuse (15A)
12. Accessories fuse (15A)
13. Instruments fuse (15A)
14. Ignition fuse (15A)
15. Lights fuse (15A)
Figure 8-10. Fuses and Relays
2008 Dyna Service: Electrical 8-7
