sm02706
1. Conduit
2. Right directional wire harness
3. Left directional wire harness
4. Tail lamp
5. Tail lamp/turn signal wire harness

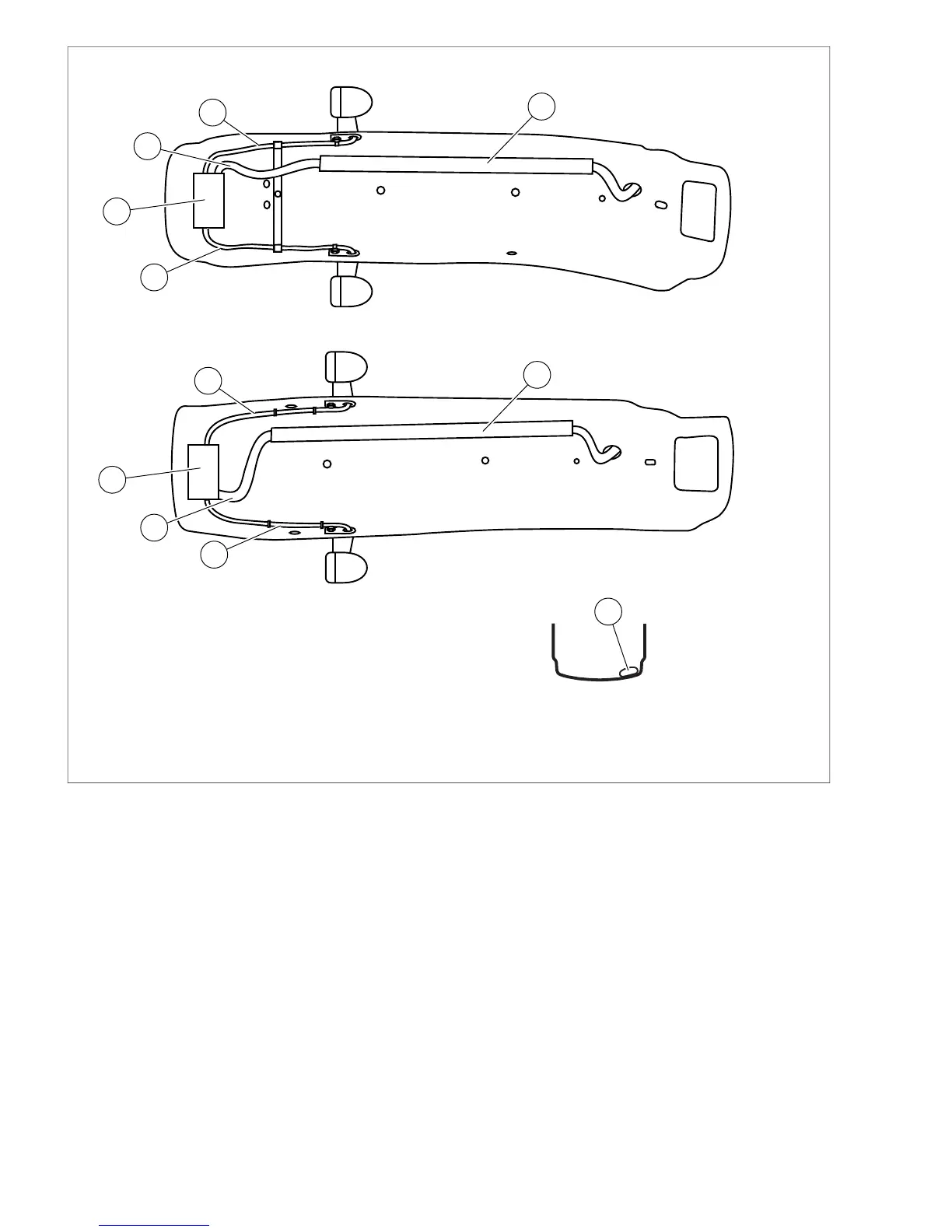

Figure 8-29. Rear Fender Harness Routing-viewed from underneath (Top: FXD, FXDC, FXDL, FXDB; Bottom: FXDWG,
FXDF)
