Harley-Davidson Dyna 2008 - TURN SIGNAL AND SECURITY MODULE (TSM;TSSM;HFSM) 8.12; INSTALLATION

8.12
TURN SIGNAL AND SECURITY MODULE
(TSM/TSSM/HFSM)
REMOVAL
1. Verify security lamp is not blinking (vehicle is disarmed).
To prevent accidental vehicle start-up, which could cause
death or serious injury, disconnect negative (-) battery
cable before proceeding. (00048a)
2. Disconnect negative battery cable.
3. See Figure 8-30. Remove electrical caddy cover.
4. See Figure 8-31. Depress tab (2). Pull TSM/TSSM/HFSM
from electrical caddy.
5. See Figure 8-32. Unplug turn signal module connector.
6. See Figure 8-33. On models with HFSM, disconnect HFSM
antenna connector.
7. Remove TSM/TSSM/HFSM from electrical caddy.

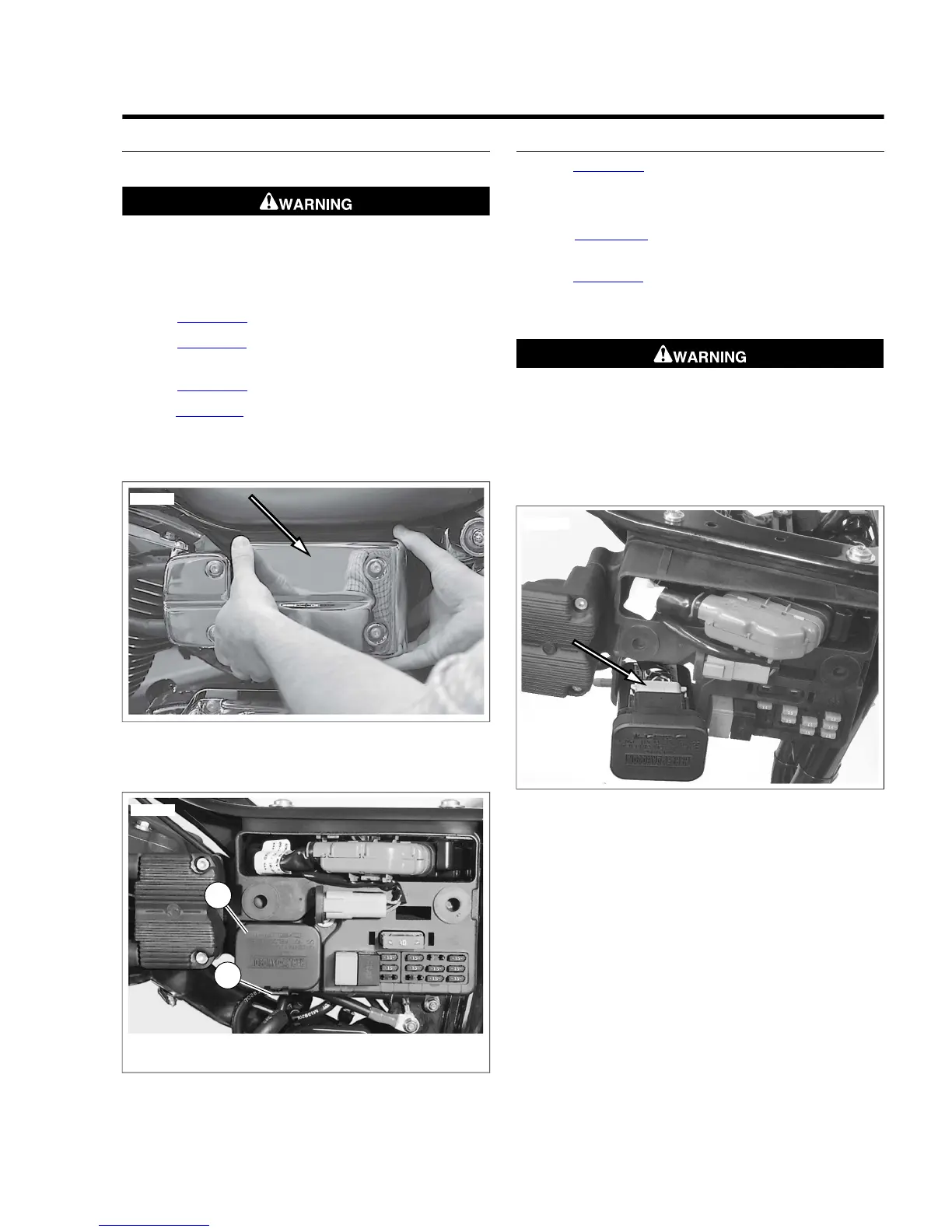

sm02029
Figure 8-30. Electrical Caddy Cover
2
1
sm02566
1. TSM/TSSM/HSFM module
2. Tab
Figure 8-31.TSM/TSSM (typical)
INSTALLATION
1. See Figure 8-32. Partially install TSM/TSSM/HFSM into
electrical caddy.
2. Plug in TSM/TSSM/HFSM module connector.
3. See Figure 8-33. On models with an HFSM, connect
HFSM antenna connector.
4. See Figure 8-32. Slide TSM/TSSM/HFSM into electrical
caddy until tab engages TSM/TSSM/HFSM.
5. Connect negative battery cable.
Be sure that all lights and switches operate properly before
operating motorcycle. Low visibility of rider can result in
death or serious injury. (00316a)
6. After installing TSM/TSSM/HFSM, the password learning
procedure must be performed. See the Electrical Dia-
gnostic Manual for this model.
sm02567
Figure 8-32.TSM/TSSM/HFSM Connector [30] (typical)
2008 Dyna Service: Electrical 8-23
