Harley-Davidson Dyna 2008 - Page 409

4
3
1
2
sm02580
1. Console fastener, long (2)
2. Console fastener, short (1)
3. Console
4. LED assembly

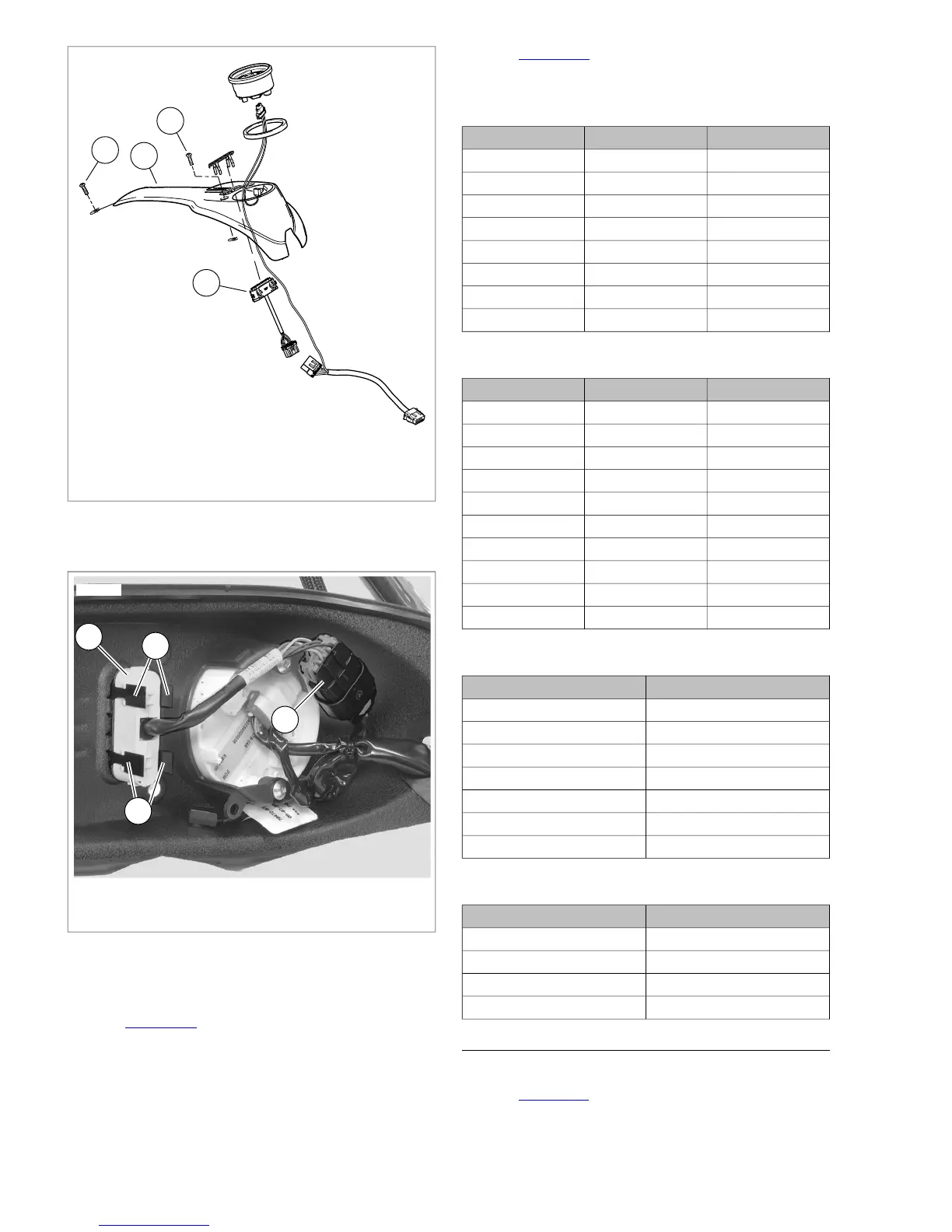

Figure 8-57. Indicator Lamps: FXDB
3
2
2
1
sm02655
1. LED assembly
2. Clips (2 pair)
3. Connector [21]
Figure 8-58. FXDB Connector [21]
FXD Models
1. See Figure 8-59. Remove LED assembly fasteners (4)
from LED assembly (3).
2. Pull LED assembly from speedometer bracket.
FXDL Models
1. Pull riser cover from between handlebar risers.
2. See Figure 8-60. Squeeze clips (2) together and gently
pull LED assembly (1) from handlebar cover (3).
Table 8-6. FXDWG, FXDC, FXDF Connector [21] Pins
FunctionWire ColorPin On [21]
left turnViolet1
high beamWhite2
oil pressureGreen/yellow3
right turnBrown4
neutralTan5
+12VOrange6
groundBlack7
n/aNot used8
Table 8-7. FXDB Connector [21] Pins
FunctionWire ColorPin On [21]
right turnBrown1
oil pressureGreen/yellow2
high beamWhite3
left turnViolet4
groundBlack5
+12VOrange6
neutralTan7
+12VOrange8
groundBlack9
groundBlack10
Table 8-8. FXD, FXDL Connector [20] Pins
Wire ColorPin On [20]
Brown3
White4
Violet5
Orange6
Tan8
Green/yellow9
Black12
Table 8-9. LED Assembly Wiring
CONNECTIONINDICATOR LAMP
Ground through switchOil pressure
Ground through switchNeutral
12V when activeHigh beam
12V when activeRight/left turn
INSTALLATION
FXDWG/ FXDC/FXDF Models
1. See Figure 8-56. Install LED assembly (1) into console.
Make sure clips (2) engage to secure assembly in place.
8-40 2008 Dyna Service: Electrical
