8.21INDICATOR LAMPS
GENERAL
Dyna models are equipped with Light Emitting Diode (LED)
indicators. The indicator LED assembly is not serviceable. If
one LED is bad, the entire assembly must be replaced.
REMOVAL
FXDWG/FXDC/FXDF Models
1. See Figure 8-55. Remove screws (1) and raise console
(2) from fuel tank. Place shop rags on tank and flip console
over to expose underside.
2. See Figure 8-56. Squeeze clips together (2) and gently
pry LED assembly (1) out of console from the side with a
screwdriver.
3. Disconnect 8-place connector (3) [21] from LED assembly.
2
1
3
sm02578
1. Screw (2)
2. Console
3. LED assembly

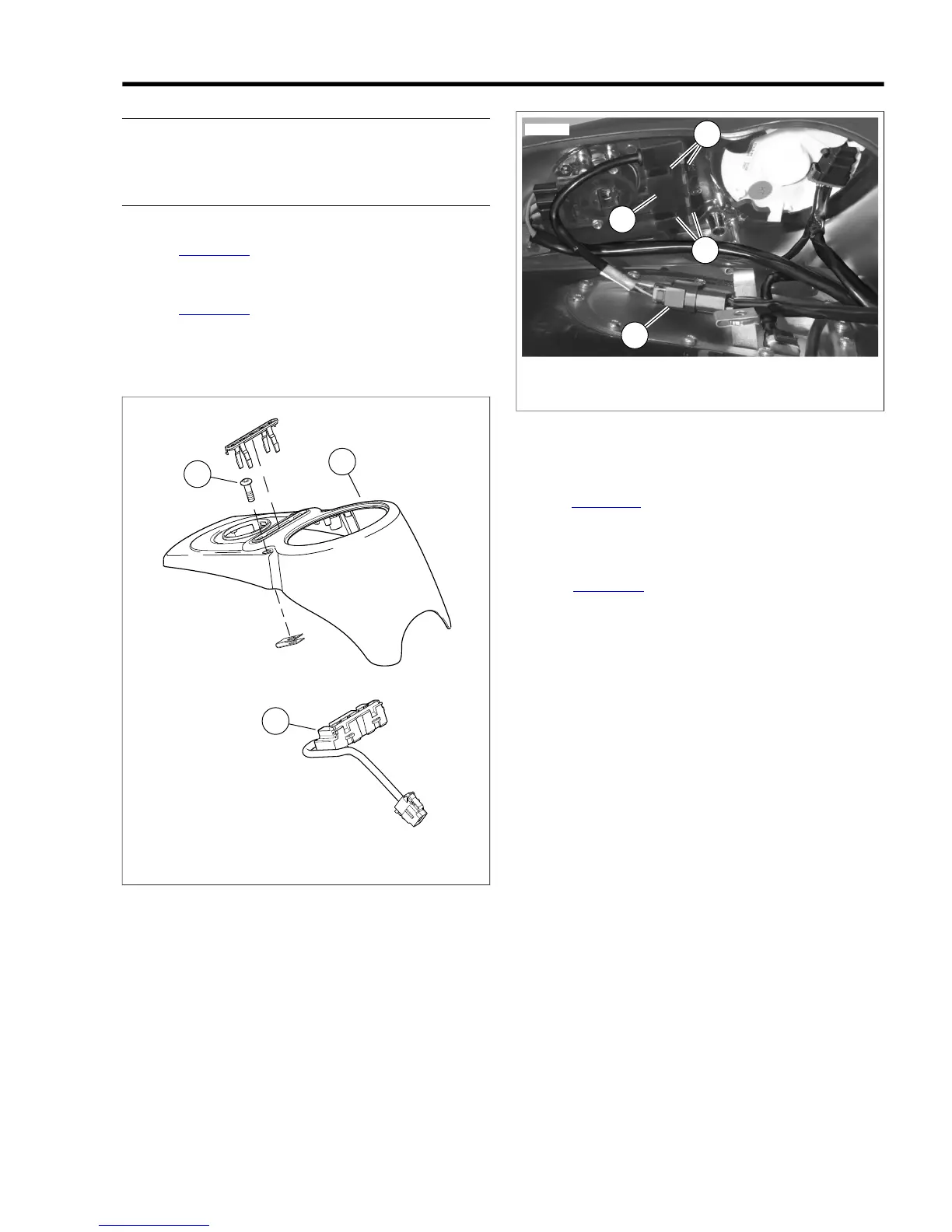

Figure 8-55. Indicator Lamp Assembly: FXDWG, FXDC,
FXDF
3
1
2
2
sm02579
1. LED assembly
2. Clips (2 pair)
3. Connector [21]
Figure 8-56. FXDWG, FXDC, FXDF Conncector [21]
FXDB Models
1. See Figure 8-57. Remove long console fasteners (1) and
short console fastener (2).
2. Raise console (3) from fuel tank. Place shop rags on tank
and flip console over to expose underside.
3. See Figure 8-58. Release clips (2) to free LED housing
(1) from console.
4. Disconnect connector (3) [21] from LED assembly.
