8.20VEHICLE SPEED SENSOR (VSS)
GENERAL
The vehicle speed sensor is a Hall Effect sensor that takes
readings off 4th gear in the transmission.
The vehicle speed sensor is located on the transmission just
behind the transmission top cover.
REMOVAL
1. Disconnect battery, negative cable first.

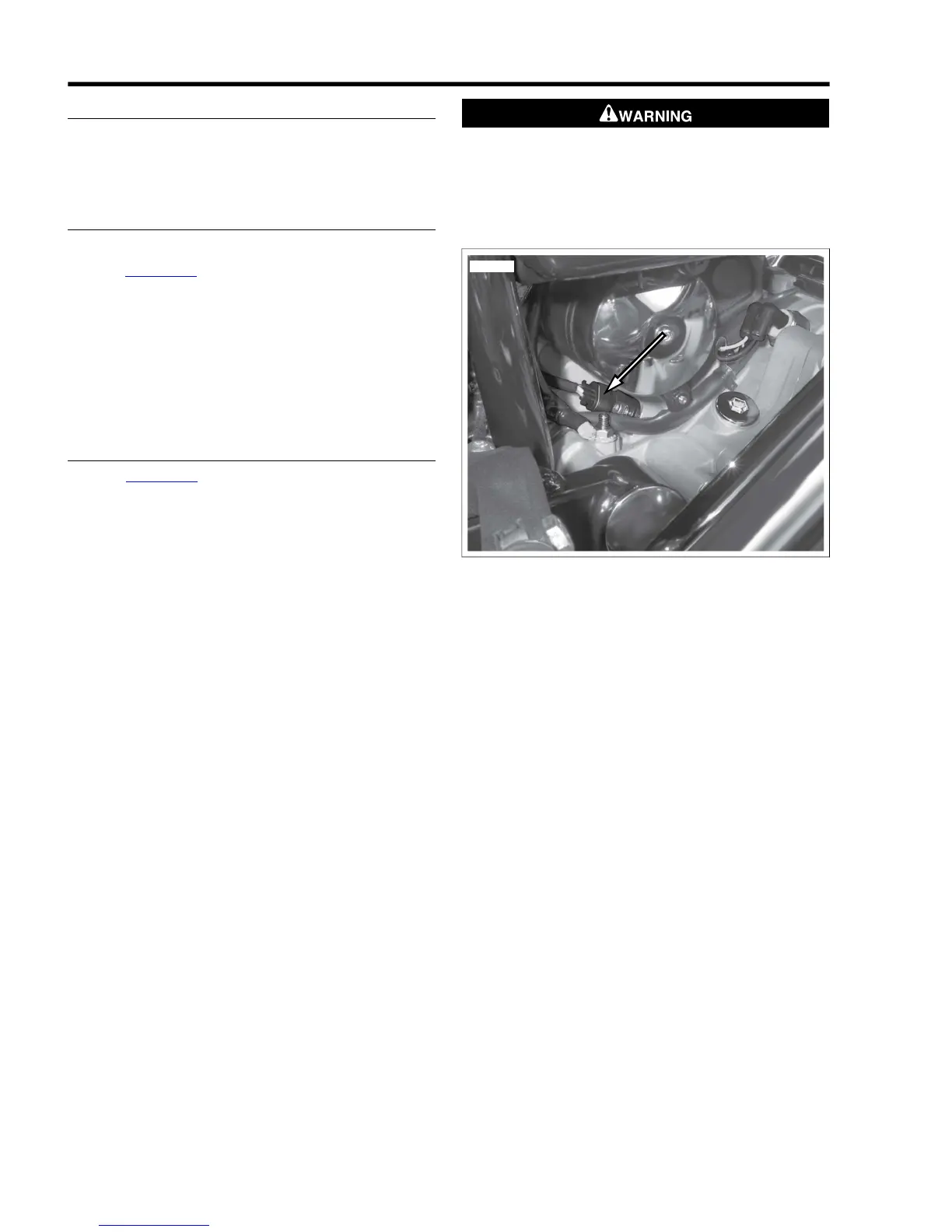

2. See Figure 8-54. Disconnect the vehicle speed sensor
connector [65].
3. Remove sensor mounting bolt and lift sensor from trans-
mission case.
NOTE
Before removing sensor wire, carefully note wire routing. It is
a good idea to lay the new sensor wire next to the old wire and
remove and replace the wires together, one cable strap at a
time, to ensure proper routing.
INSTALLATION
1. See Figure 8-54. Install sensor into transmission case
using mounting bolt. Tighten bolt to 84-108 in-lbs (9.5-
12.2 Nm).
2. Install connector [65] to speed sensor.
3. Connect battery cables.
After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)
4. Install seat.
