Harley-Davidson Dyna 2008 - Page 441

4
6
7
3
1
2
5
8
sm00007
1. Open position
2. Locking bar flange
3. Insert contact
4. Release locking bar
5. Insert lead
6. Squeeze
7. Raise locking bar
8. Remove crimped terminal

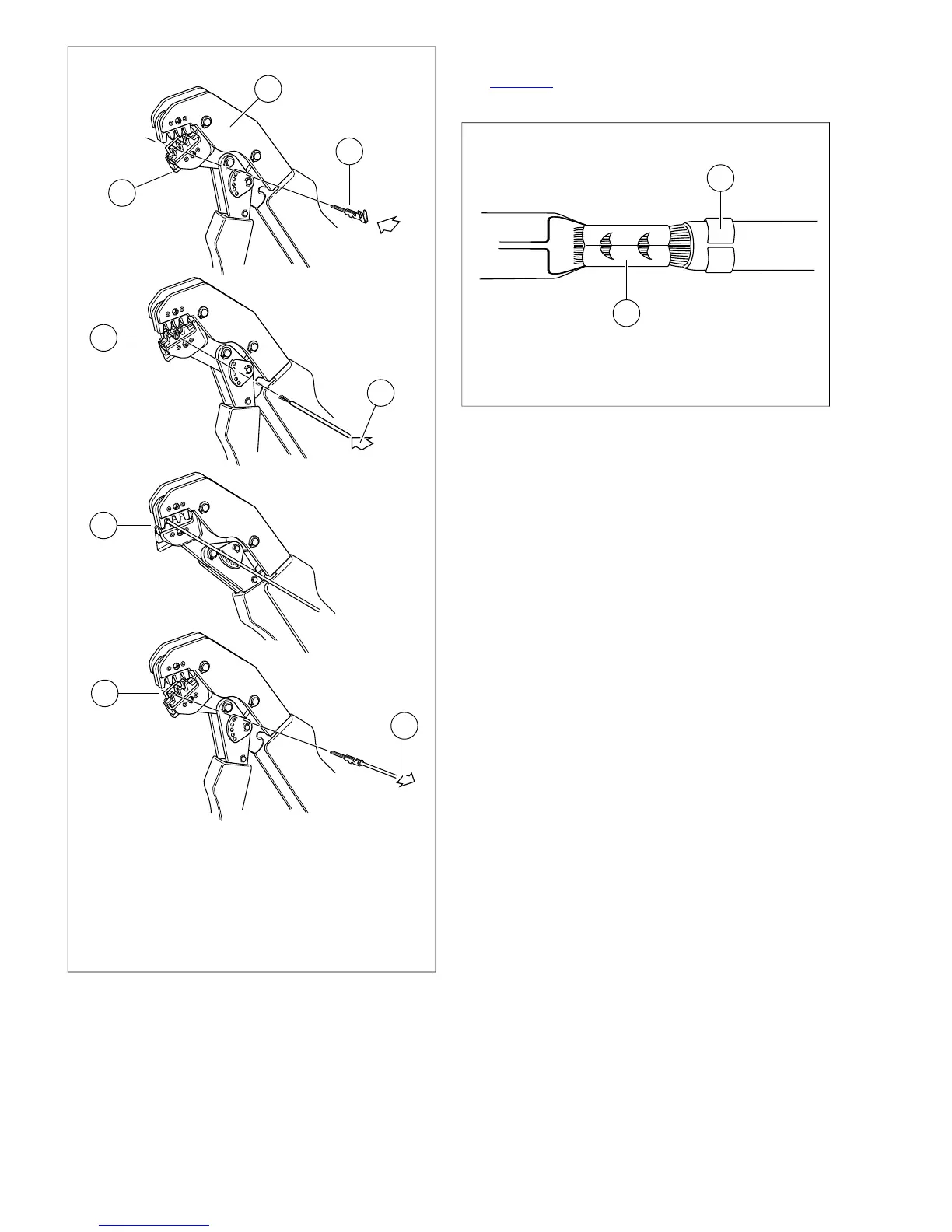

Figure A-8. AMP Multilock Connector:Terminal Crimping
Procedure
Inspecting Crimped Terminals
See Figure A-9. Inspect the wire core crimp (2) and insulation
crimp (1). Distortion should be minimal.
1
2
sm00008
1. Insulation crimp
2. Wire core crimp
Figure A-9. AMP Multilock Connector:Terminal Crimp
A-6 2008 Dyna Service: Appendix A Connector Repair
