A.3AUTOFUSE ELECTRICAL CONNECTORS
AUTOFUSE CONNECTOR REPAIR
TOOL NAMEPART NUMBER
SNAP-ON TERMINAL PICKGA500A
General
Autofuse electrical connector terminals are found in ignition
switches and some fuse blocks.
Disassembly
1. Obtain SNAP-ON TERMINAL PICK (Part No. GA500A).

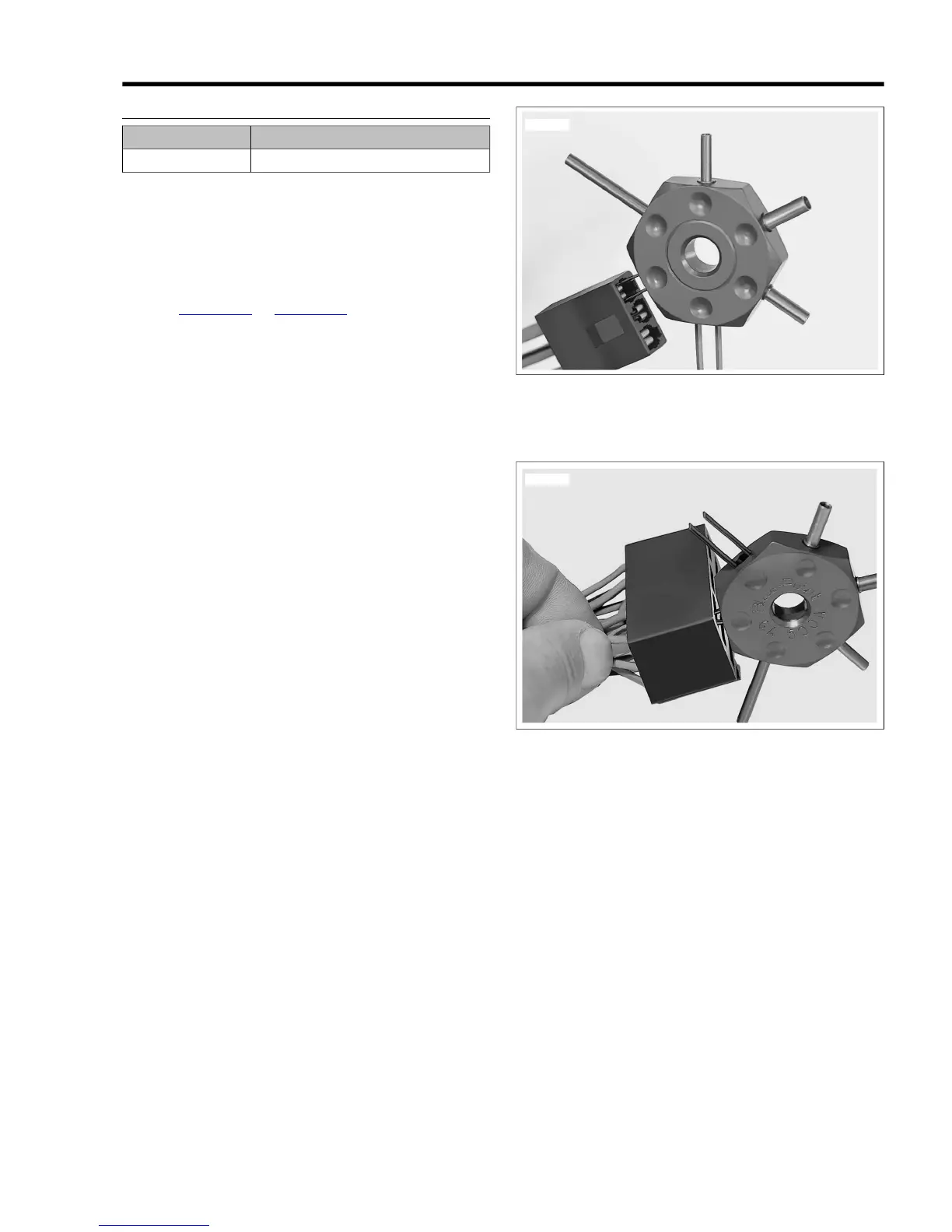

2. See Figure A-10 or Figure A-11. Insert smallest pair of
pins into chamber on mating end of socket housing to
depress tangs on each side of terminal simultaneously.
3. Gently pull on wire to remove terminal from wire end of
socket housing.
4. If necessary, crimp new terminals on wires.
Assembly
1. Using a thin flat blade, like that on a hobby knife, carefully
bend tang on each side of terminal outward away from
terminal body.
2. With the open side of the terminal facing rib on wire end
of socket housing, insert terminal into chamber until it locks
in place.
Figure A-11. Removing Autofuse Terminal from Fuse Block
2008 Dyna Service: Appendix A Connector Repair A-7
