1.18SUSPENSION ADJUSTMENTS
REAR SHOCK PRELOAD ADJUSTMENT
TOOL NAMEPART NUMBER
SPANNER WRENCHHD-94700-52C
Be sure both shock absorbers are adjusted to same pre-
load position. Improper adjustment can adversely affect
stability and handling, which could result in death or ser-
ious injury. (00036a)
The rear shock absorber springs can be adjusted to five posi-
tions to compensate for various loads.
• For heavy loads, the springs should be compressed.
• For lighter loads the springs should be extended.

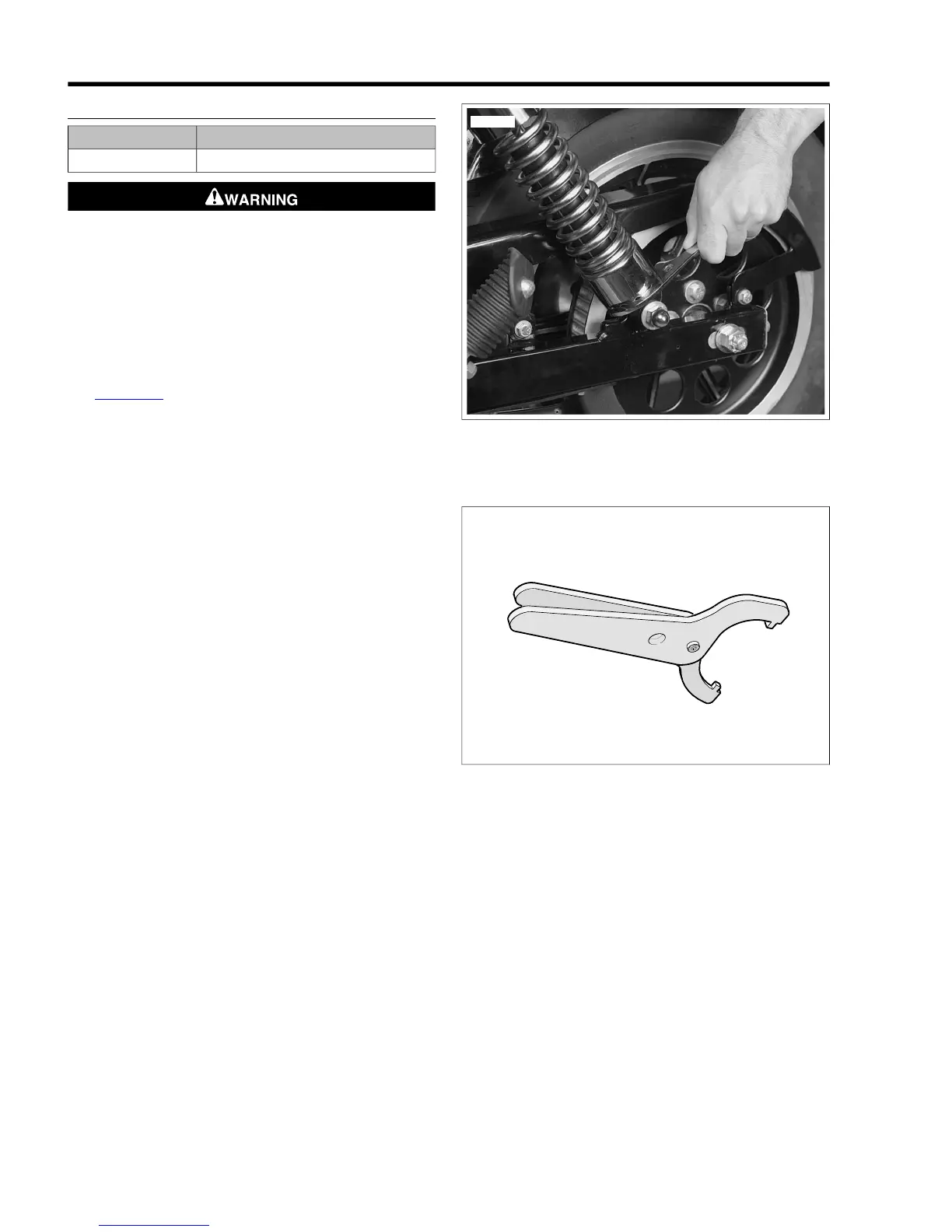

See Figure 1-41.To adjust the rear shock absorber, turn spring
adjusting cam to desired position with a SPANNER
WRENCH (Part No. HD-94700-52C). Both spring adjusting
cams must be adjusted to the same position. When returning
to off-cam position, cams should be backed off in opposite
direction.
