Harley-Davidson Dyna 2008 - Page 78

1
2
3
4
5
3
6
7
7
9
10
8
8
sm04025
6.1. Left bearing spacerAxle
2. 7.Right bearing spacer Brake disc
8.3. Screw (5)Bearing (2)
4. 9.Sleeve Washer
10.5. Axle nutDisc wheel

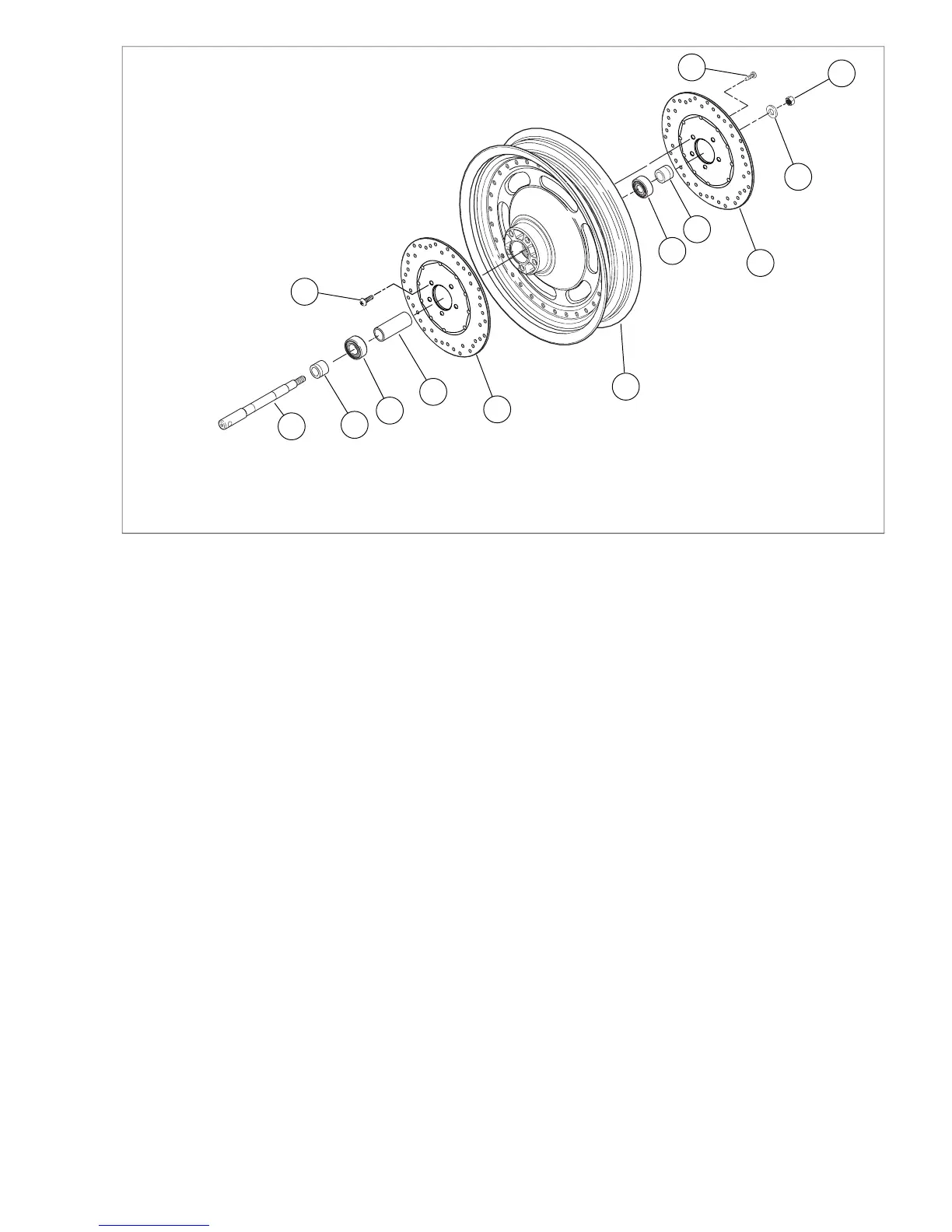

Figure 2-6. Cast Front Wheel Components (FXDF)
2008 Dyna Service: Chassis 2-7
